Turbocharger Oil Feed Pipe Replacement

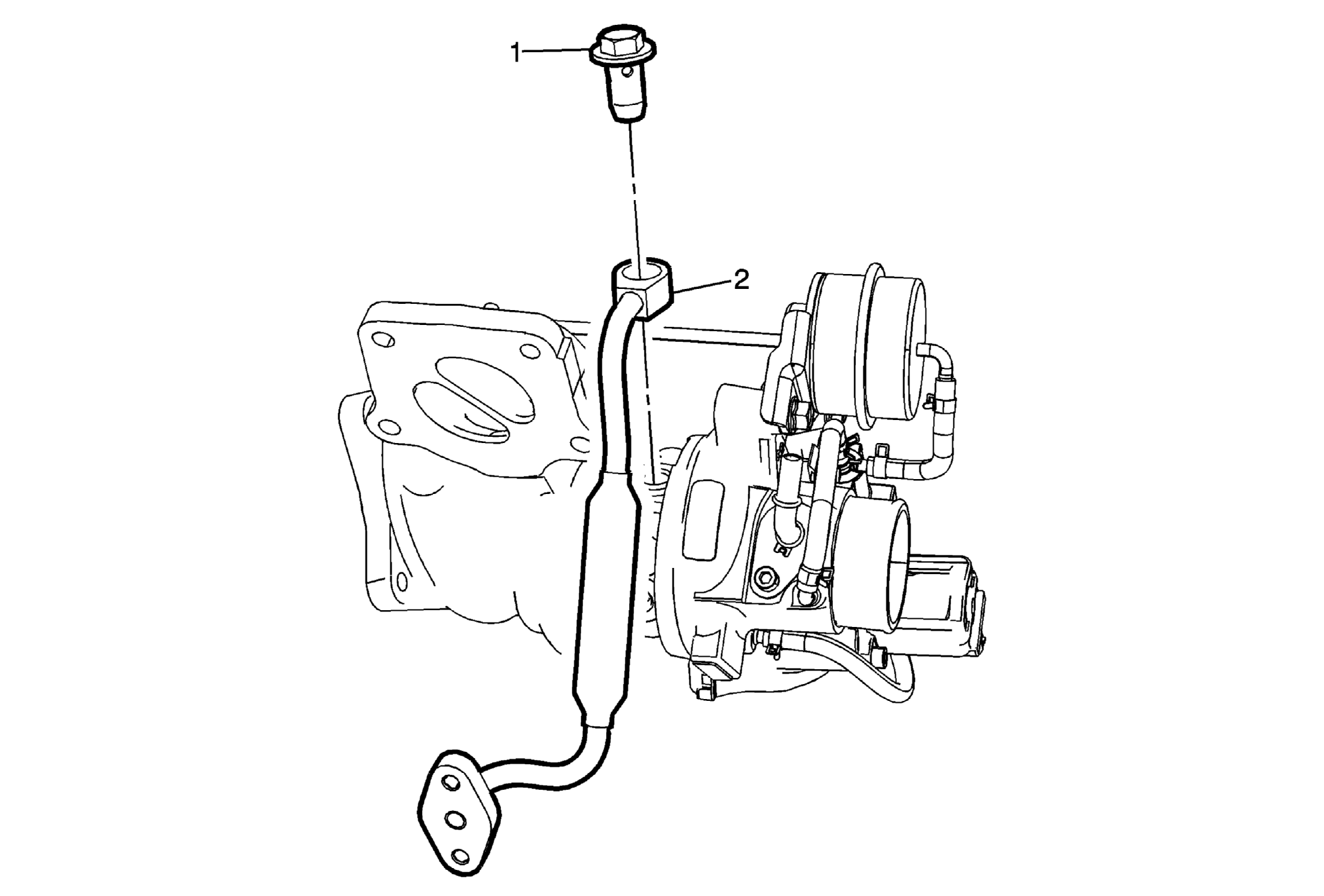

Fig 1: Turbocharger Oil Feed Pipe
GM2869516Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedure
Remove the turbocharger. Refer to Turbocharger Replacement .
1 Turbocharger Oil Feed Pipe Fastener
CAUTION:

Refer to Fastener Caution .


Tighten
35 N.m (26 lb ft)
2 Turbocharger Oil Feed Pipe
NOTE:

A NEW turbocharger oil feed gasket should be used whenever the pipe is installed.
