Installation Procedure

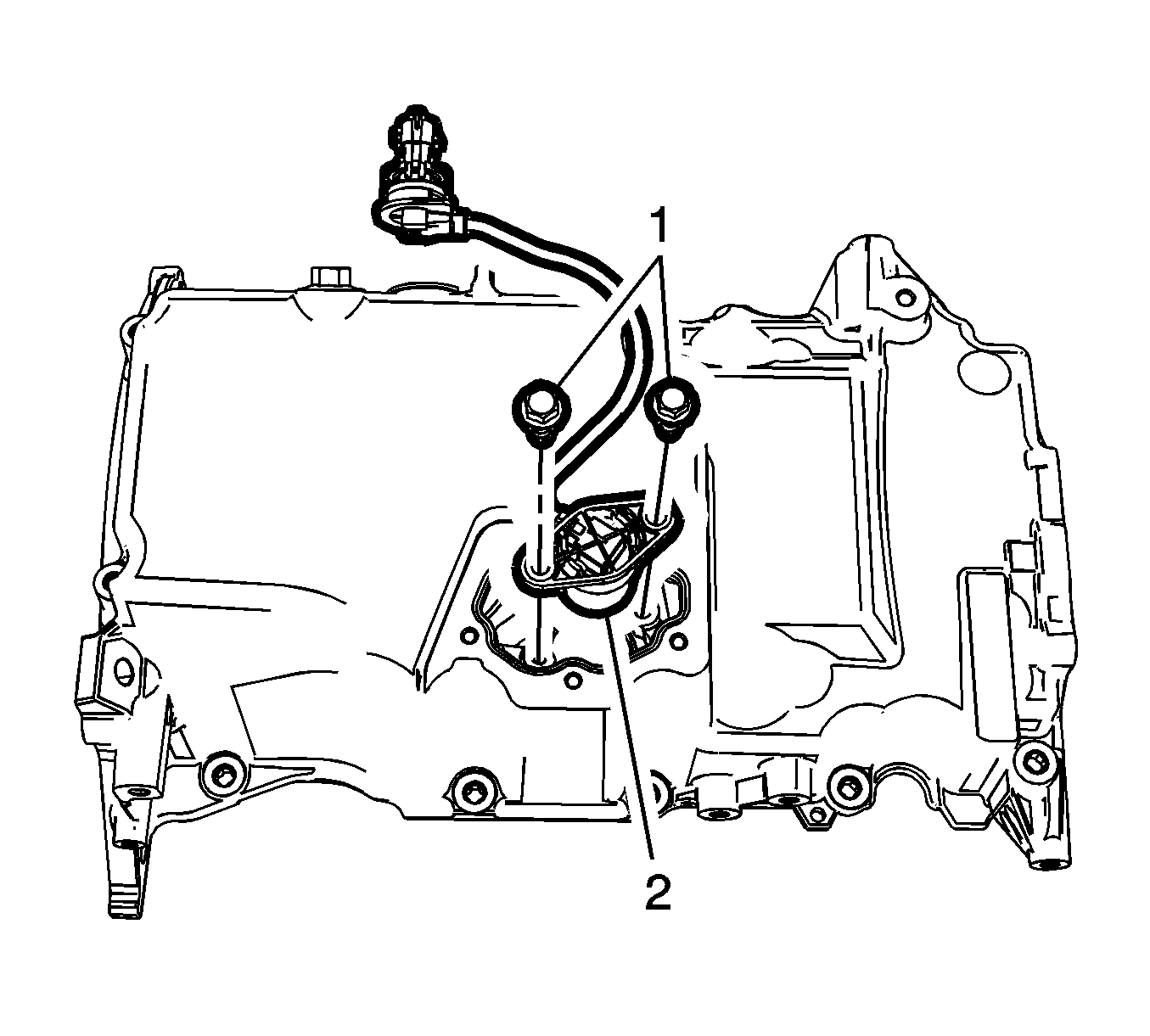

    Fig 1: Engine Oil Level Sensor
    GM3406332Courtesy of GENERAL MOTORS COMPANY
  1. Install the engine oil level sensor (1) into the oil pan
    2. CAUTION:

    Refer to Fastener Caution .

  2. Install the engine oil level sensor fastener (1) and tighten to 10 N.m (89 lb in).

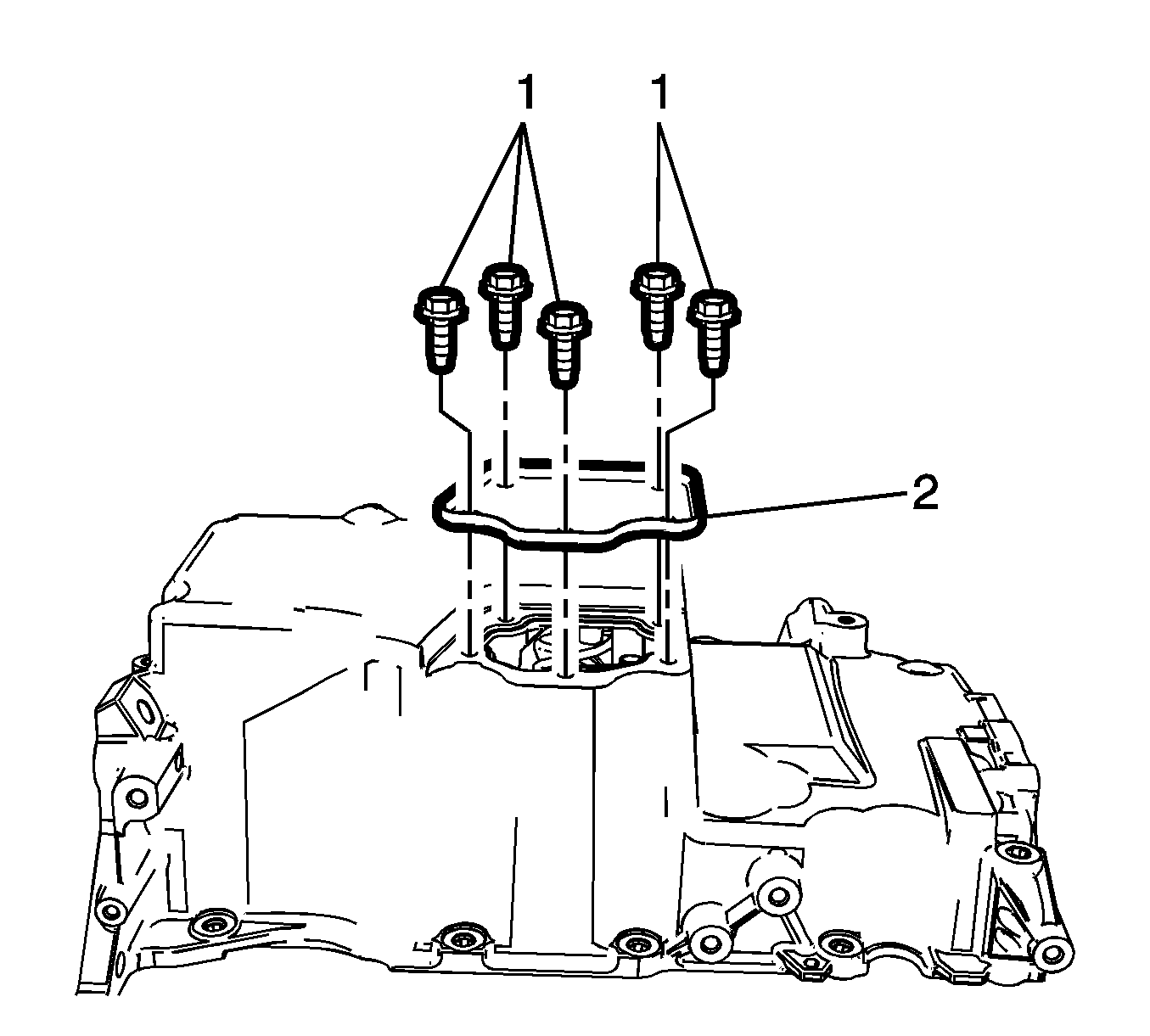

    3. Fig 2: Lower Oil Pan
    GM3406317Courtesy of GENERAL MOTORS COMPANY
    NOTE:

    Apply a 4.25 mm bead of sealer (1) on the level part of the flange around the perimeter of the lower oil pan. Refer to Adhesives, Fluids, Lubricants, and Sealers .

  3. Install the lower oil pan (2) and fasteners (1) and tighten to 10 N.m (89 lb in).

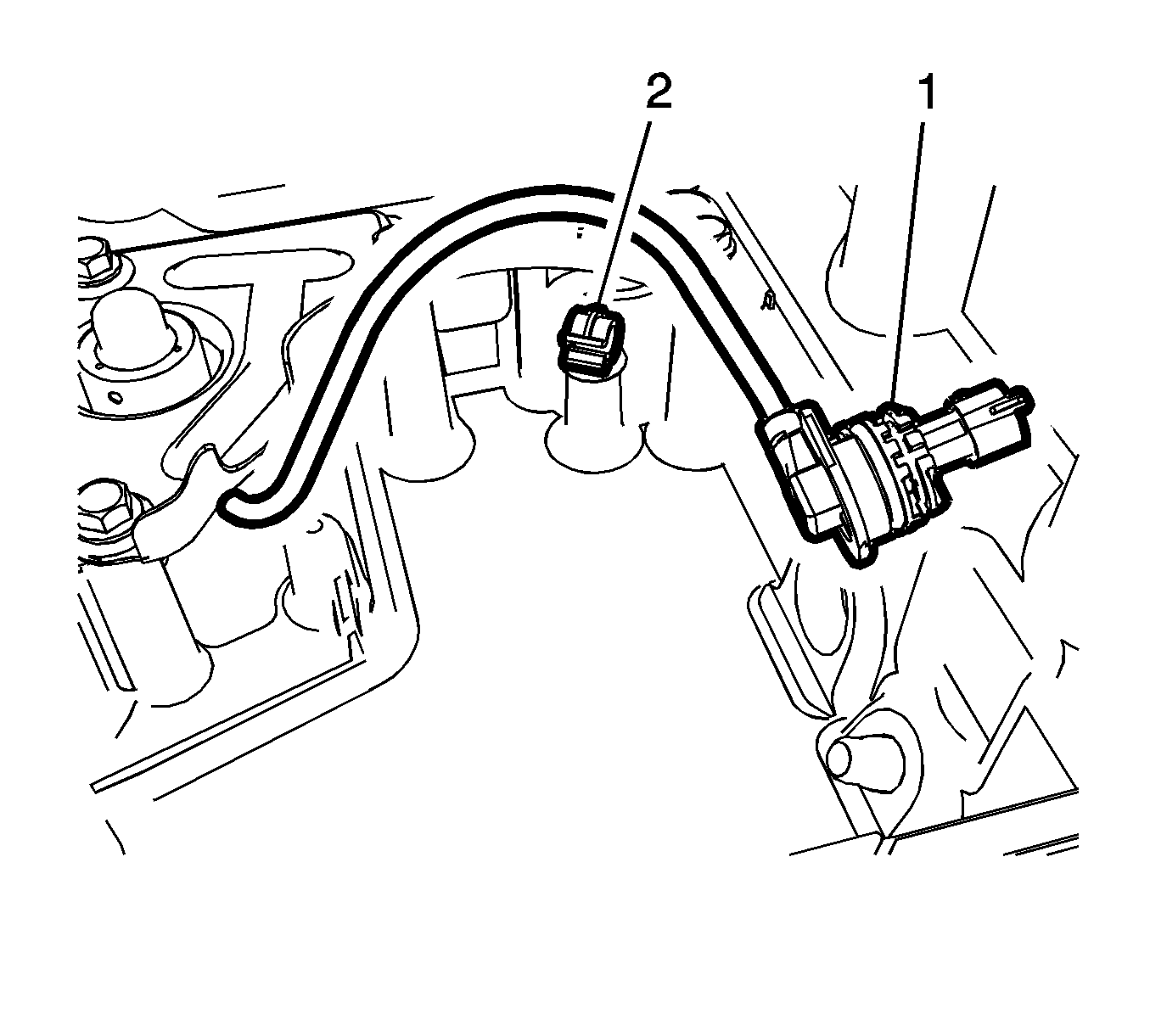

    4. Fig 3: Engine Oil Level Sensor Connector
    GM3406328Courtesy of GENERAL MOTORS COMPANY
    NOTE:

    Always install a NEW O-ring when installing the engine oil level sensor.

  4. Connect the engine oil level sensor connector (1) to the oil pan with a NEW O-ring.
  5. Connect the engine oil level sensor pigtail wire to the retainer (2).
    6. Fig 4: Engine Oil Level Sensor
    GM3406322Courtesy of GENERAL MOTORS COMPANY
  6. Install the engine oil level sensor retainer (1).
  7. Install the oil pan. Refer to Oil Pan Replacement (AWD) .
