Removal Procedure

  1. Remove the engine oil filter. Refer to Engine Oil and Oil Filter Replacement .

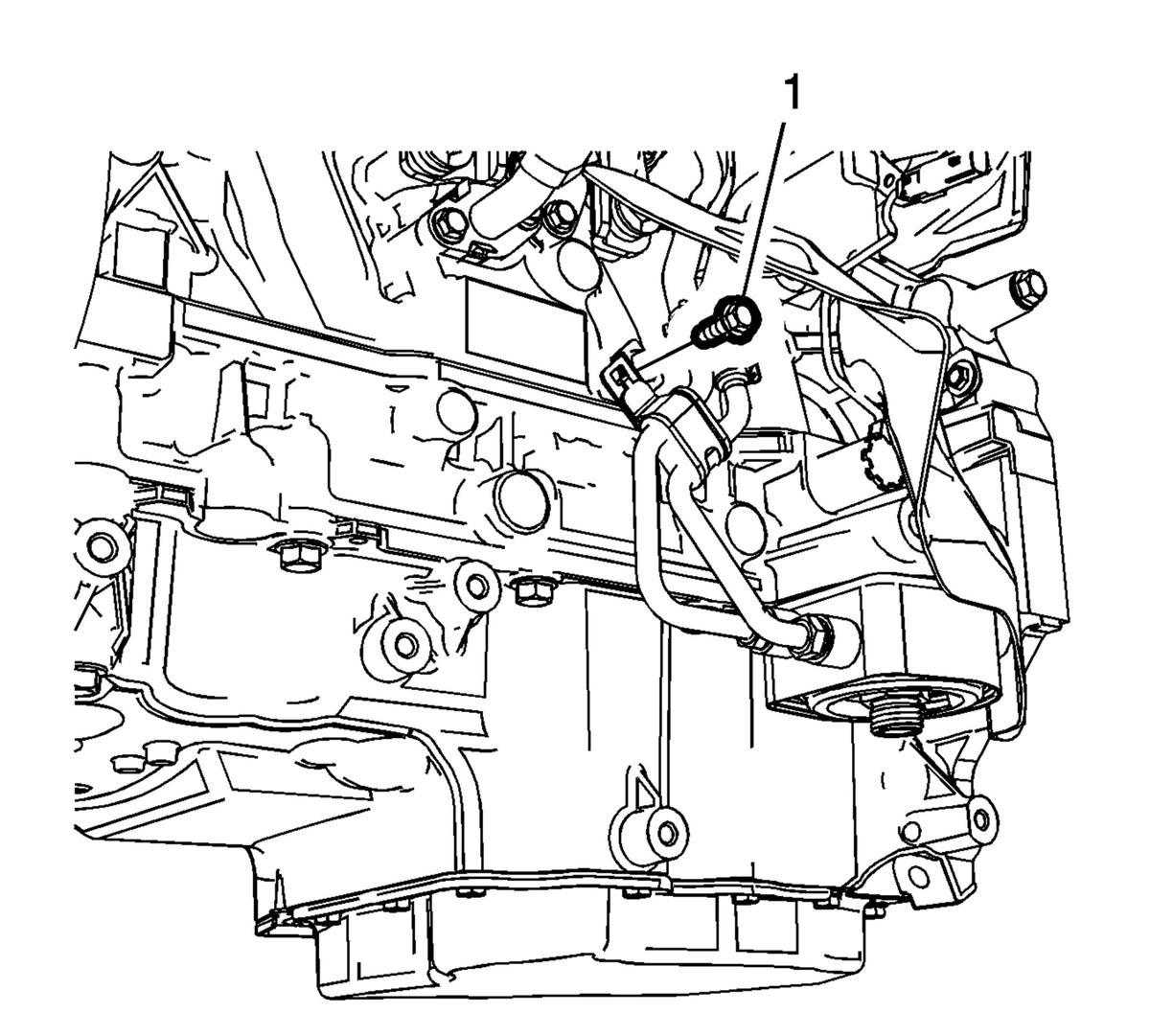

    2. Fig 1: Engine Oil Cooler Fastener
    GM2874855Courtesy of GENERAL MOTORS COMPANY
  2. Remove the engine oil cooler fastener (1).
    3. Fig 2: Engine Oil Cooler Connector
    GM2874857Courtesy of GENERAL MOTORS COMPANY
  3. Remove the engine oil cooler hose (1) and (2).
  4. Remove the engine oil cooler connector (3).
    5. Fig 3: Engine Oil Cooler
    GM2874859Courtesy of GENERAL MOTORS COMPANY
    NOTE:

    DISCARD the old engine oil cooler seal.

  5. Remove the engine oil cooler (1).
