Installation Procedure

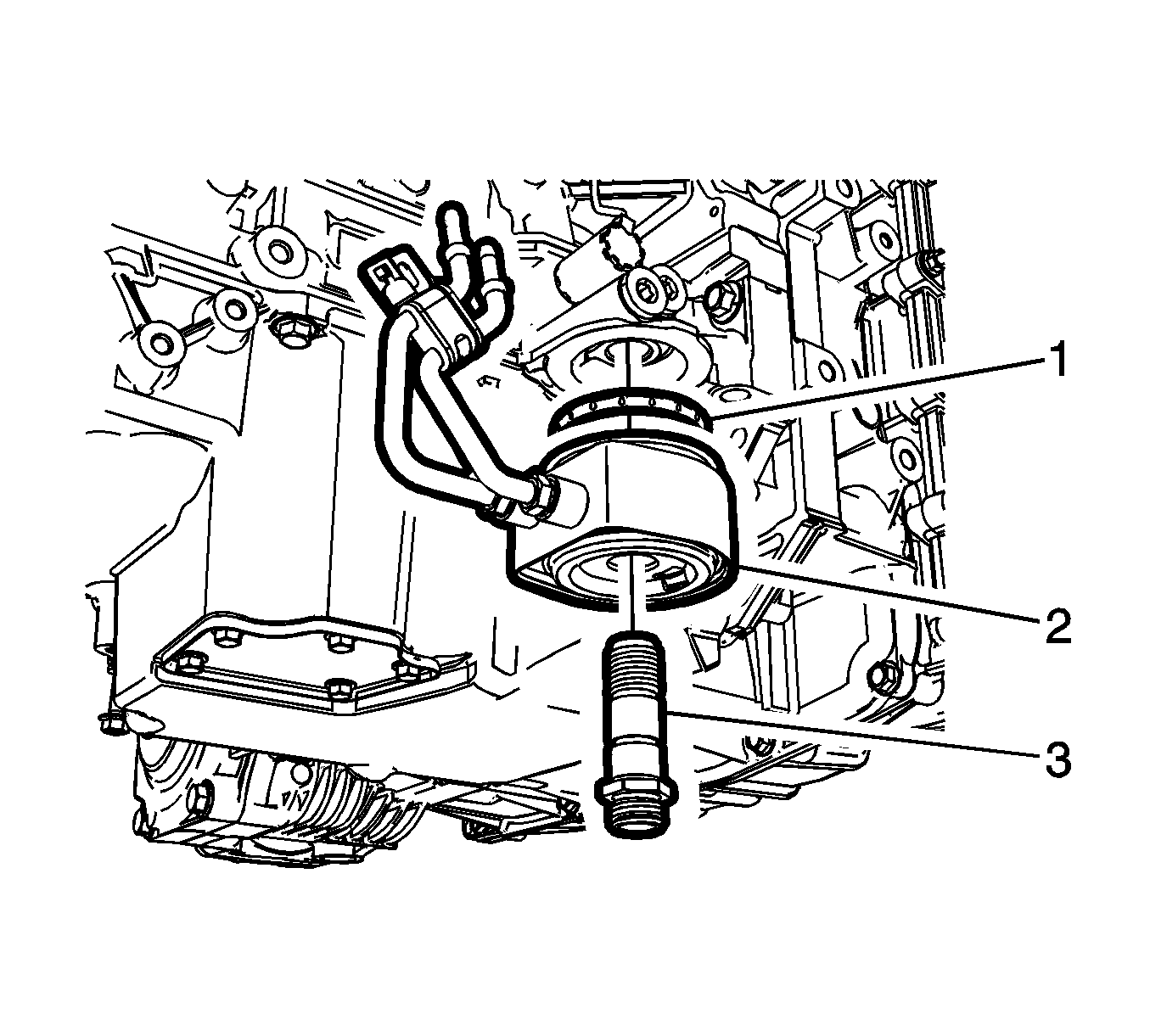

    Fig 1: Engine Oil Cooler Connector
    GM3405124Courtesy of GENERAL MOTORS COMPANY
    NOTE:

    A NEW engine oil cooler seal must be used whenever reinstalling the engine oil cooler.

  1. Install the engine oil cooler (2) with a NEW seal.
    2. CAUTION:

    Refer to Component Fastener Tightening Caution .

  2. Install the engine oil cooler connector (3) and tighten to 50 N.m (37 lb ft).
    3. Fig 2: Oil Cooler Hoses
    GM3405120Courtesy of GENERAL MOTORS COMPANY
  3. Install the oil cooler hoses (2).
    4. CAUTION:

    Refer to Fastener Caution .

  4. Install the oil cooler fastener (1) and tighten to 10 N.m (89 lb in)
  5. Install the engine oil filter. Refer to Engine Oil and Oil Filter Replacement .
