Engine Front Cover Removal (LTG)

    Fig 1: Accessory Drive Belt Tensioner
    GM2783782Courtesy of GENERAL MOTORS COMPANY
  1. Remove the accessory drive belt tensioner bolt (1).
  2. Remove the accessory drive belt tensioner (2).

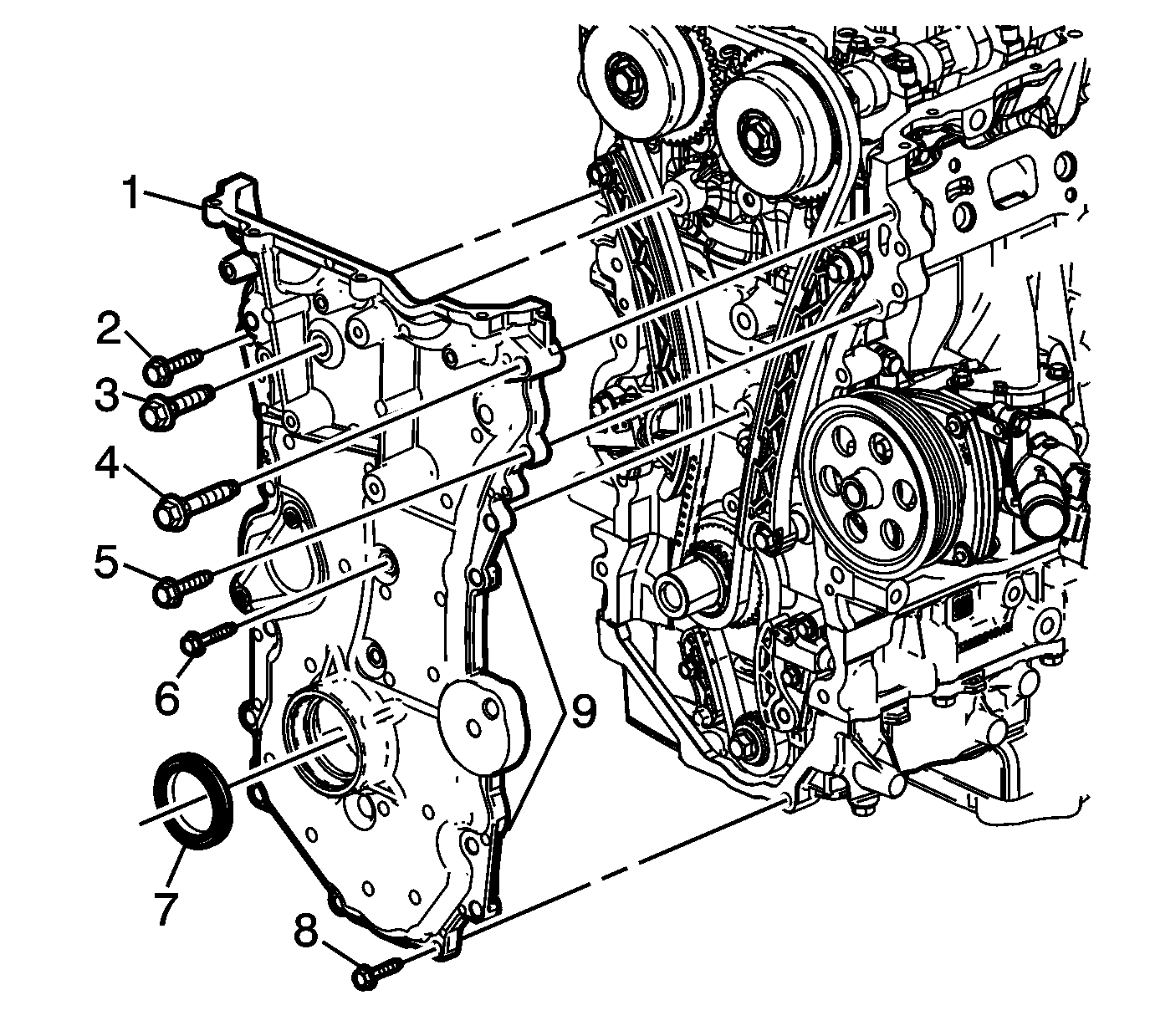

    3. Fig 2: Exploded View Of Engine Front Cover And Components
    GM2783783Courtesy of GENERAL MOTORS COMPANY
  3. Remove the engine front cover bolts (2-6, 8).
  4. Remove the engine front cover (1).
  5. Remove the front oil seal (7) with an appropriate tool.
