Camshaft Cover - Top
Camshaft Cover - Top

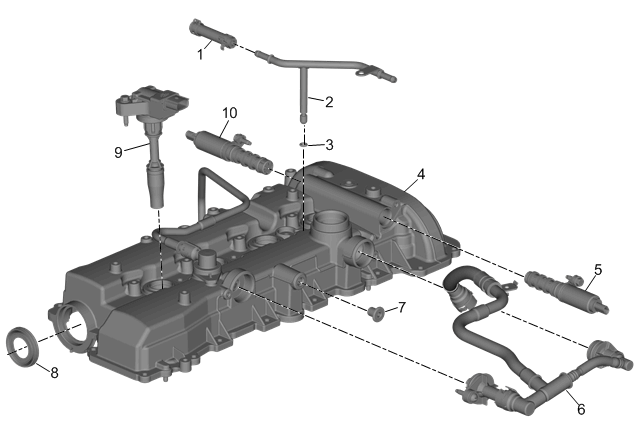

| Callout | Component Name |
|---|---|
| Preliminary Procedure Thoroughly clean the camshaft cover and mating surfaces. Inspect each component, O-rings, and fasteners, and replace as necessary. |
|
| 1 | Engine Coolant Air Bleed Hose |
| 2 | Engine Coolant Air Bleed Pipe |
| 3 | Engine Coolant Air Bleed Pipe O-Ring |
| 4 | Camshaft Cover |
| 5 | Camshaft Position Actuator Control Solenoid Valve - Intake |
| 6 | PCV Valves and PCV Tube Assembly
NOTE:
These components have tamper-proof connections and cannot be disassembled. |
| 7 | Camshaft Cover Plug
CAUTION:
Refer to Fastener Caution . Tighten 35 N.m (26 lb ft) |
| 8 | Vacuum Pump Seal Special Tools DT45866 Input Shaft Seal Installer For equivalent regional tools, refer to Special Tools . |
| 9 | Ignition Coil |
| 10 | Camshaft Position Actuator Control Solenoid Valve - Exhaust |
