Exhaust Rear Muffler Heat Shield Replacement (Right Rear Corner)

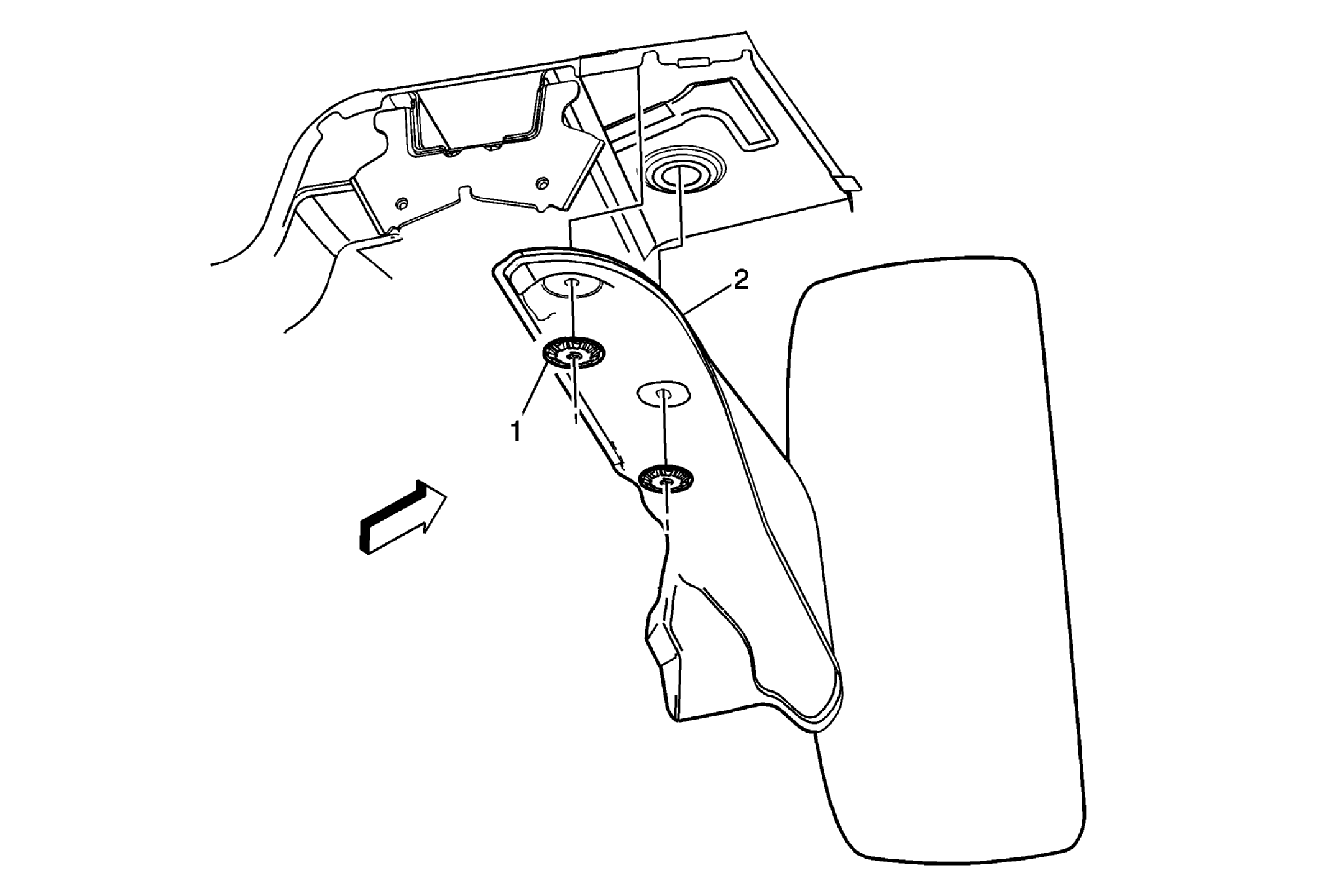

Fig 1: Exhaust Rear Muffler Heat Shield (Right Rear Corner)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
WARNING: Refer to Hot Exhaust System Warning . Preliminary Procedure Unclip heat shield from fender liner.
1	Heat Shield Retainer (Qty:2) CAUTION: Refer to Fastener Caution . Tighten  1.5 N.m (13 lb in)
2	Heat Shield Right Rear
