Removal Procedure

WARNING:

Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle .
Remove the heated oxygen sensor, sensor 2. Refer to Heated Oxygen Sensor Replacement - Sensor 2 .

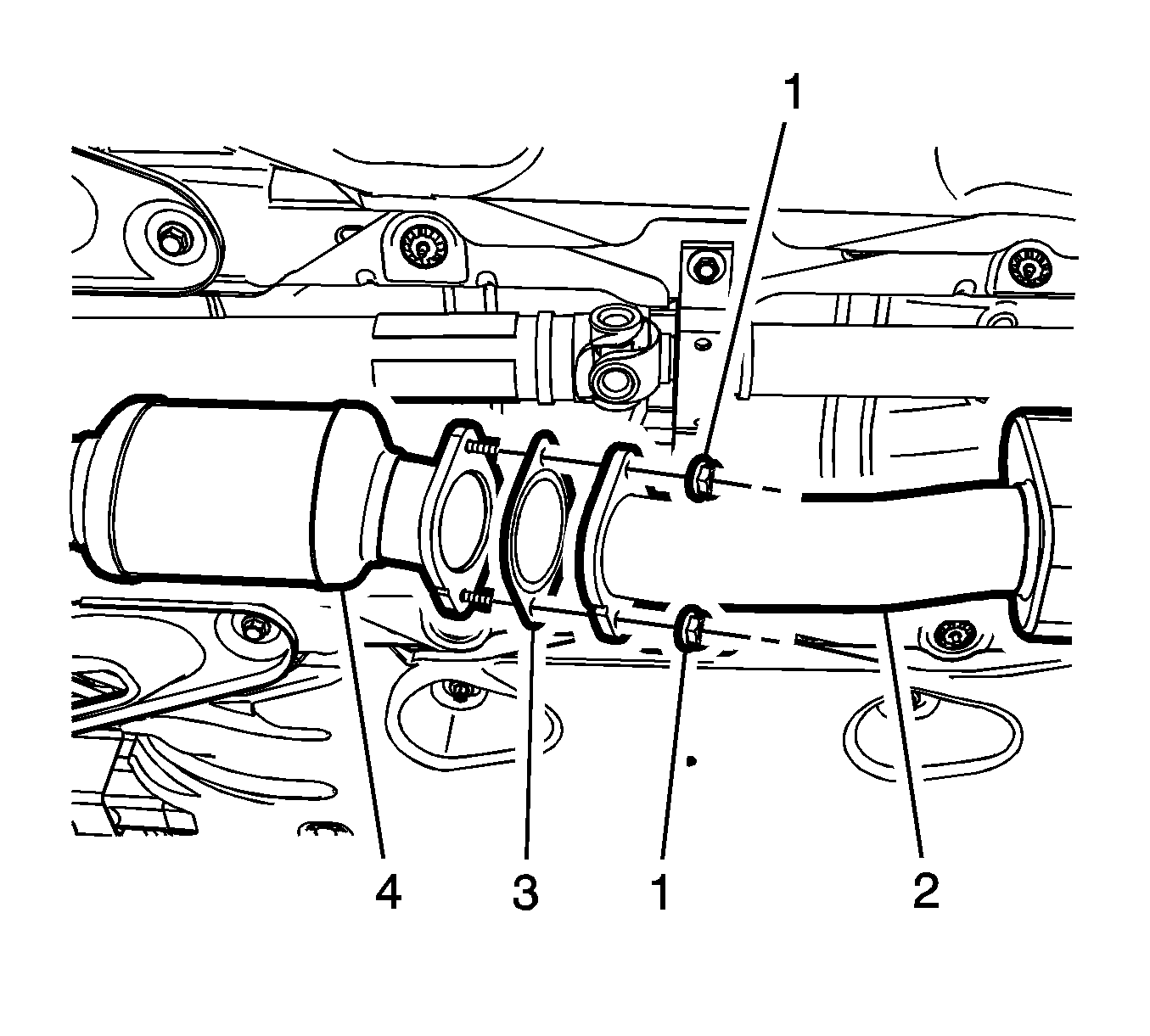

Fig 1: Fasteners Securing Rear Muffler To Exhaust Front Pipe

Courtesy of GENERAL MOTORS COMPANY

Remove the fasteners (1) securing the rear muffler (2) to the exhaust front pipe (4) and discard the exhaust gasket (3).

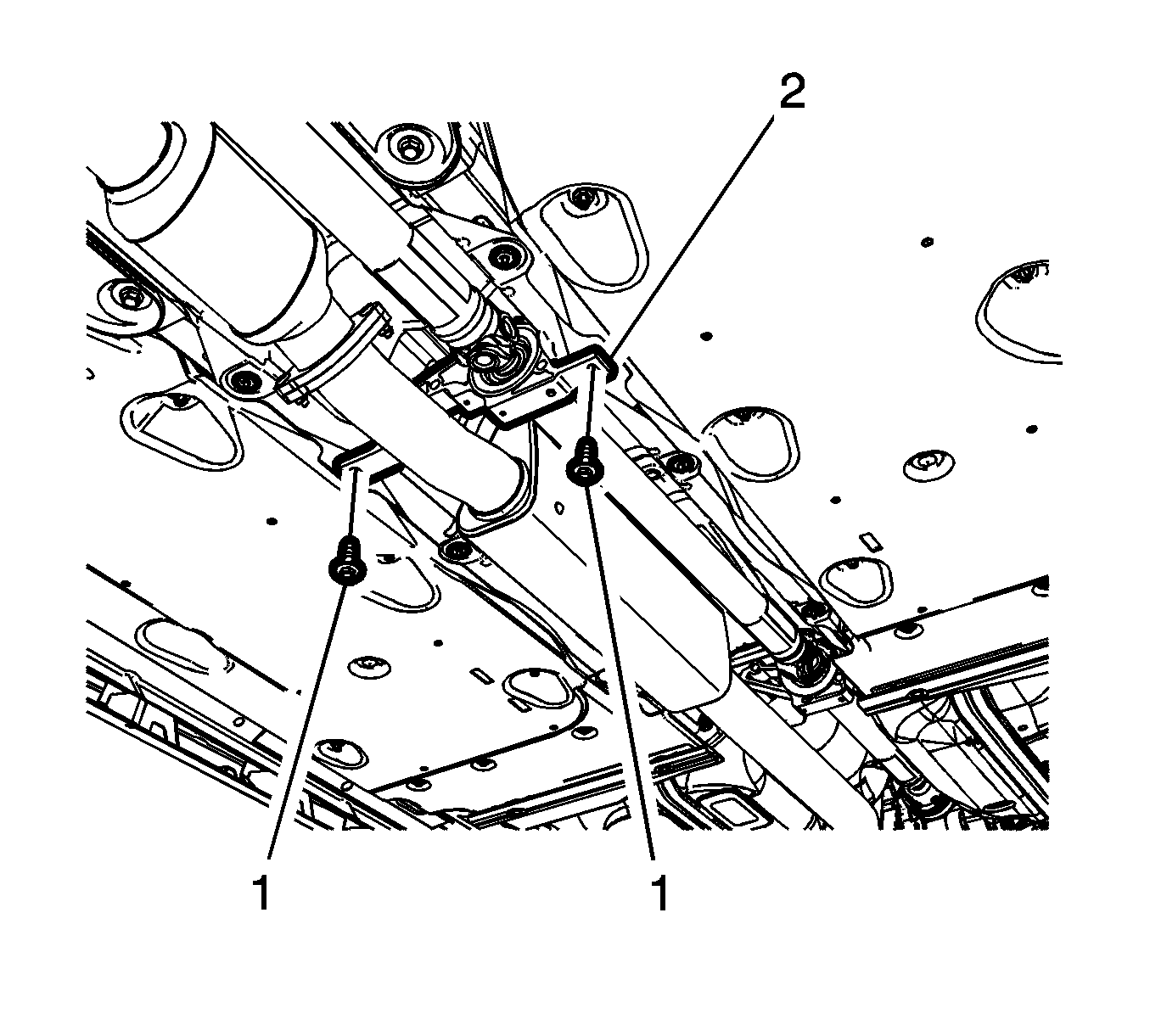

Fig 2: Prop Shaft Bearing Bracket

Courtesy of GENERAL MOTORS COMPANY

If equipped with AWD, to aid in removing the exhaust front pipe hanger bracket, remove the fasteners (1) from the prop shaft bearing bracket (2) and allow the prop shaft to hang down.

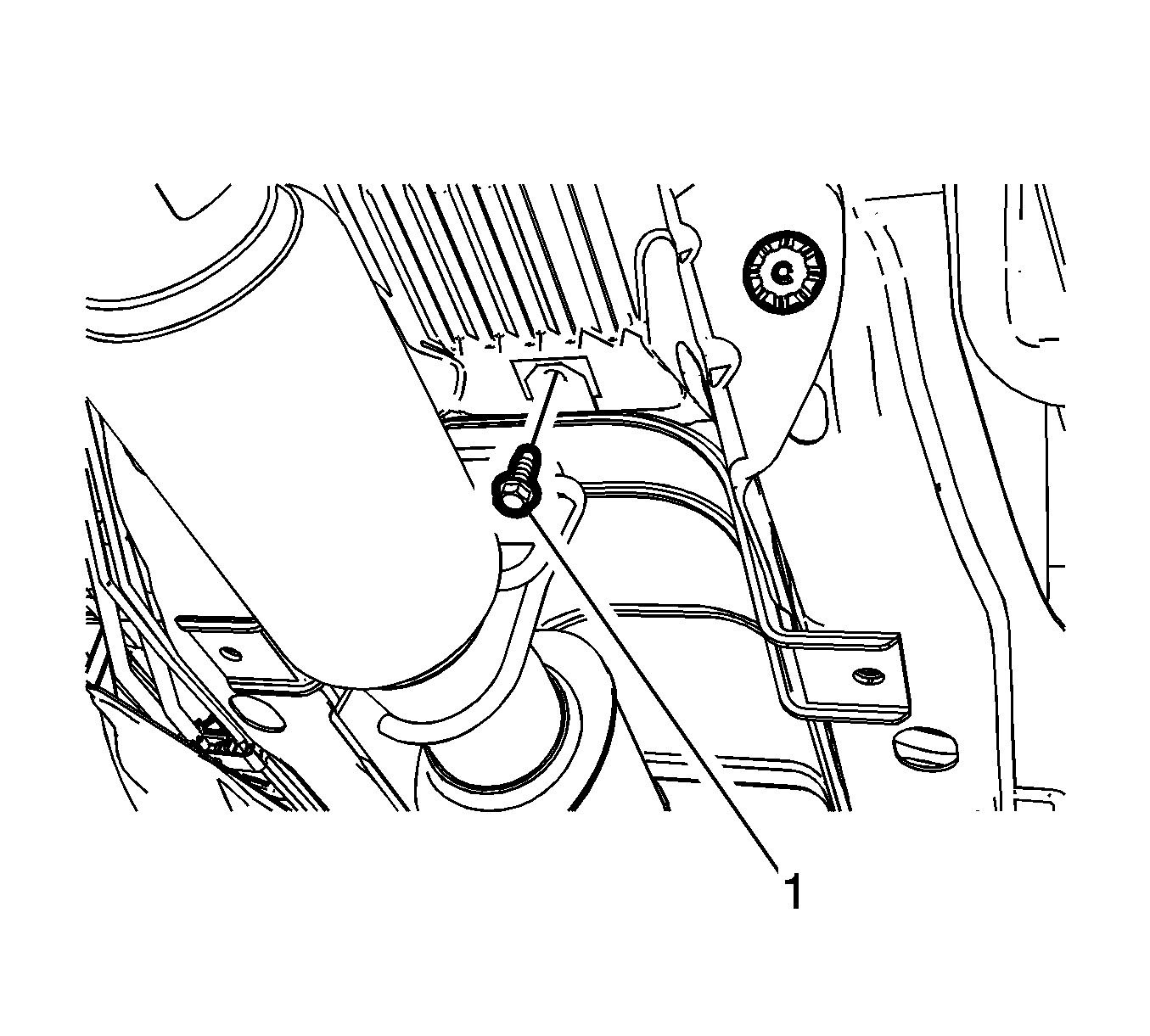

Fig 3: Catalytic Converter Fasteners

Courtesy of GENERAL MOTORS COMPANY

Remove the exhaust front pipe fasteners (2) from the front catalytic converter and DISCARD the exhaust gasket (3).
Remove the exhaust front pipe bracket fasteners (1).

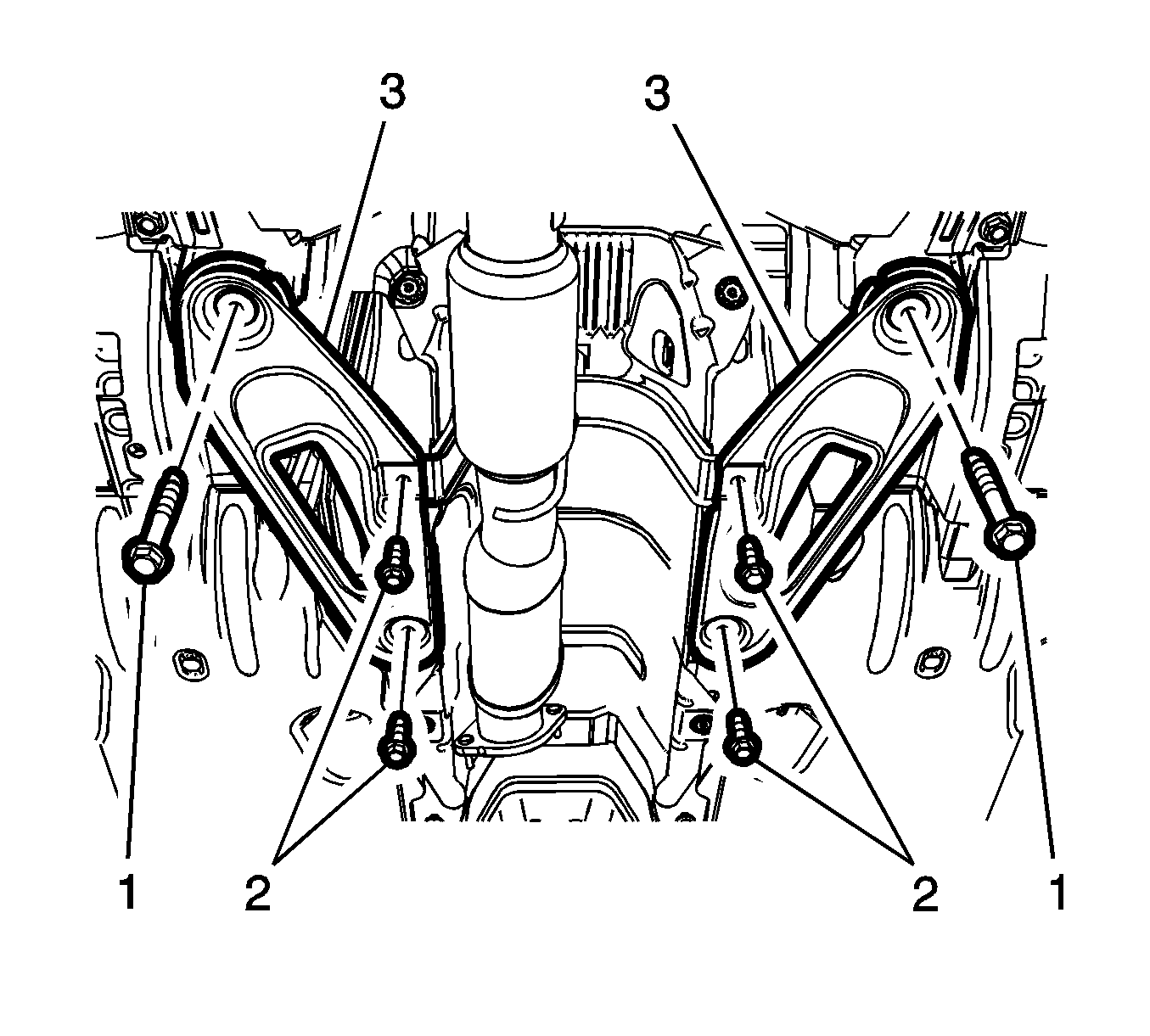

Fig 4: Left And Right Drivetrain And Front Suspension Frame Supports

Courtesy of GENERAL MOTORS COMPANY

Loosen the frame cradle fasteners (1) and remove the remaining fasteners (2) of the left and right drivetrain and front suspension frame support (3).

Fig 5: Exhaust Pipe Front Hanger Bracket Fastener

Courtesy of GENERAL MOTORS COMPANY

Remove the exhaust pipe front hanger bracket fastener (1).
Lower the exhaust front pipe.
Discard the exhaust gaskets.
If replacing the exhaust front pipe, remove the exhaust pipe front hanger insulator bracket, if equipped.
