Catalytic Converter Replacement (LUK, LEA)

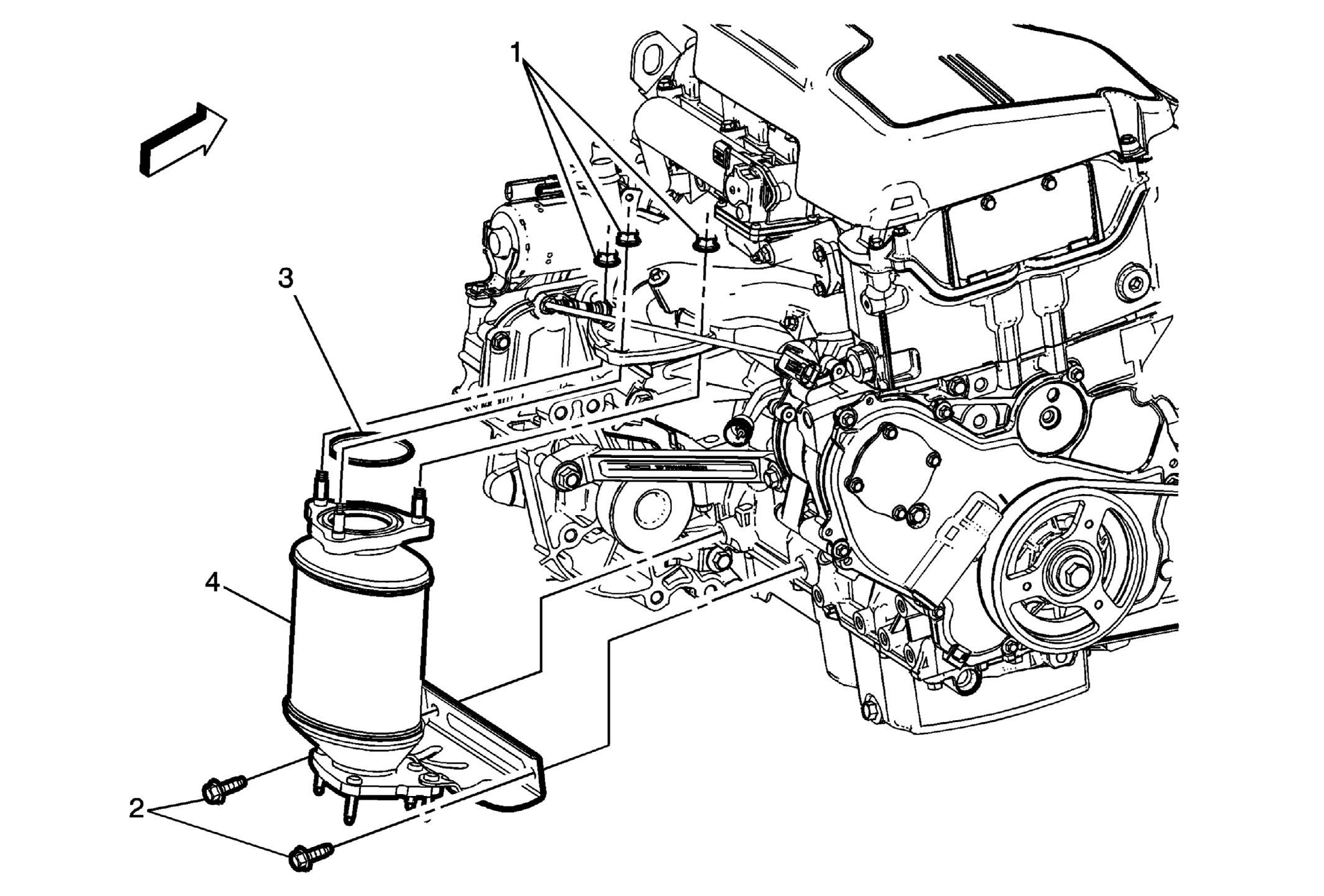

Fig 1: Catalytic Converter Components (LUK, LEA)
GM2728097Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
WARNING:

Refer to Exhaust Service Warning .

WARNING:

Refer to Eye Protection Warning .

Preliminary Procedures

  1. Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle .
  2. Remove the exhaust front pipe. Refer to Exhaust Front Pipe Replacement (LUK) .
1 Catalytic Converter Fasteners (Qty:3)
Tighten
50 N.m (36 lb ft)
2 Catalytic Converter Brace Fastener (Qty:2)
CAUTION:

Refer to Fastener Caution .


Tighten
58 N.m (43 lb ft)
3 Exhaust Seal
4 Catalytic Converter
