Installation Procedure

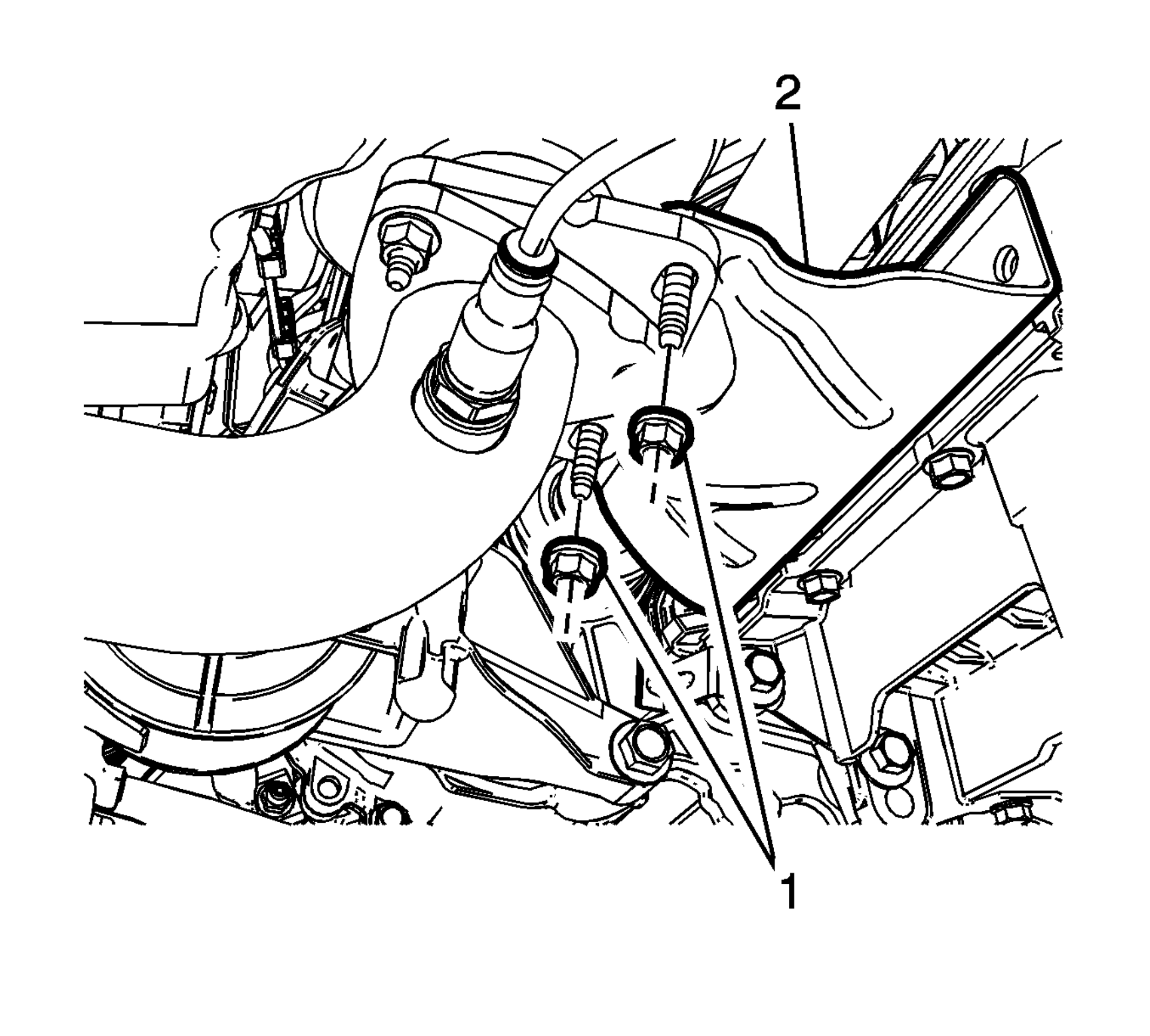

    Fig 1: Fasteners Securing Catalytic Converter Brace To Catalytic Converter
    GM3470008Courtesy of GENERAL MOTORS COMPANY
    CAUTION:

    Refer to Fastener Caution .

  1. Install the fasteners (1) securing the catalytic converter brace (2) to the catalytic converter and tighten to 22 N.m (16 lb ft).

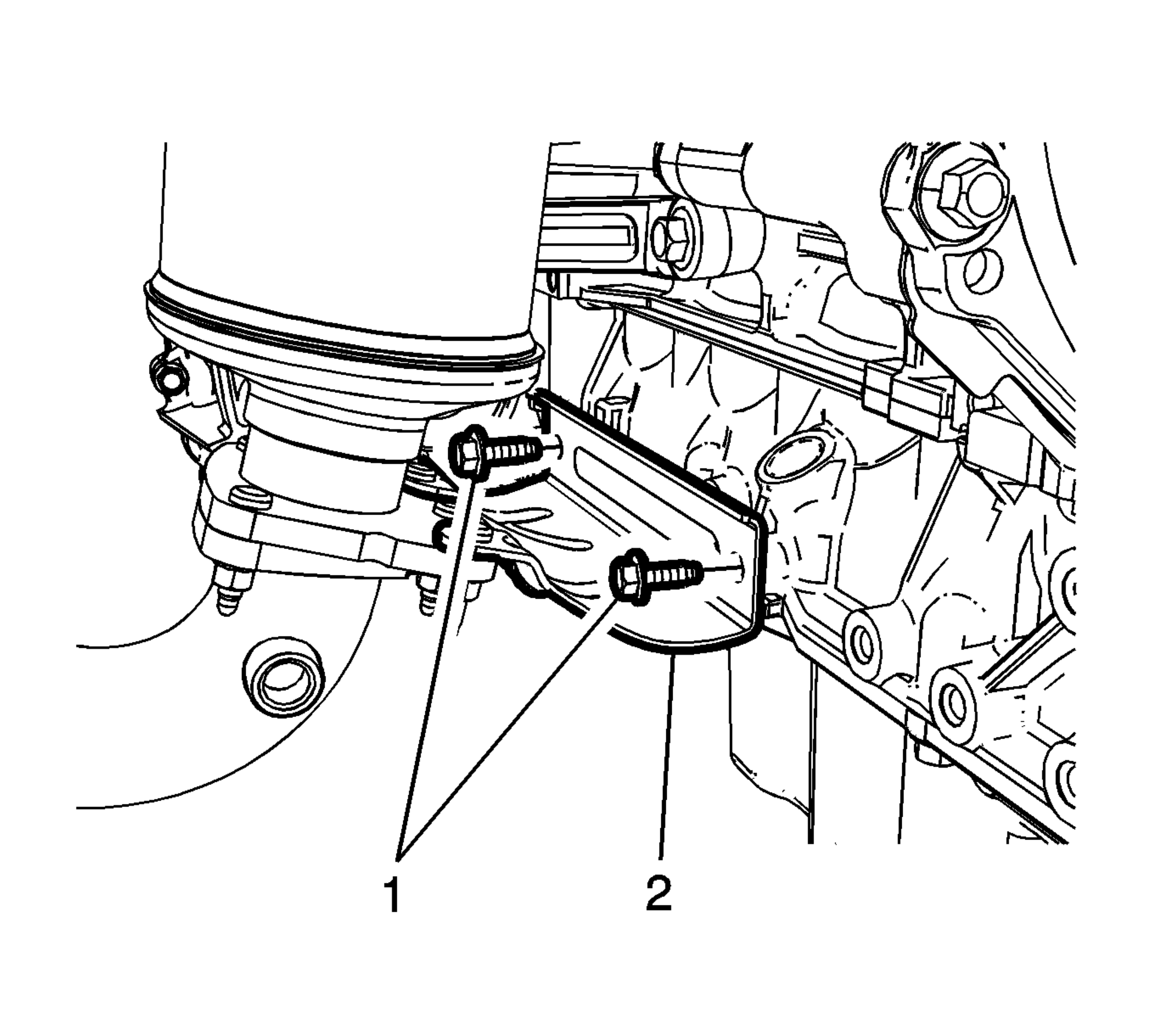

    2. Fig 2: Catalytic Converter Brace
    GM3469997Courtesy of GENERAL MOTORS COMPANY
  2. Install the fasteners (1) securing the catalytic converter brace (2) to the engine and tighten to 22 N.m (16 lb ft).
  3. Lower the vehicle.
