Catalytic Converter Brace Replacement (LTG Upper)

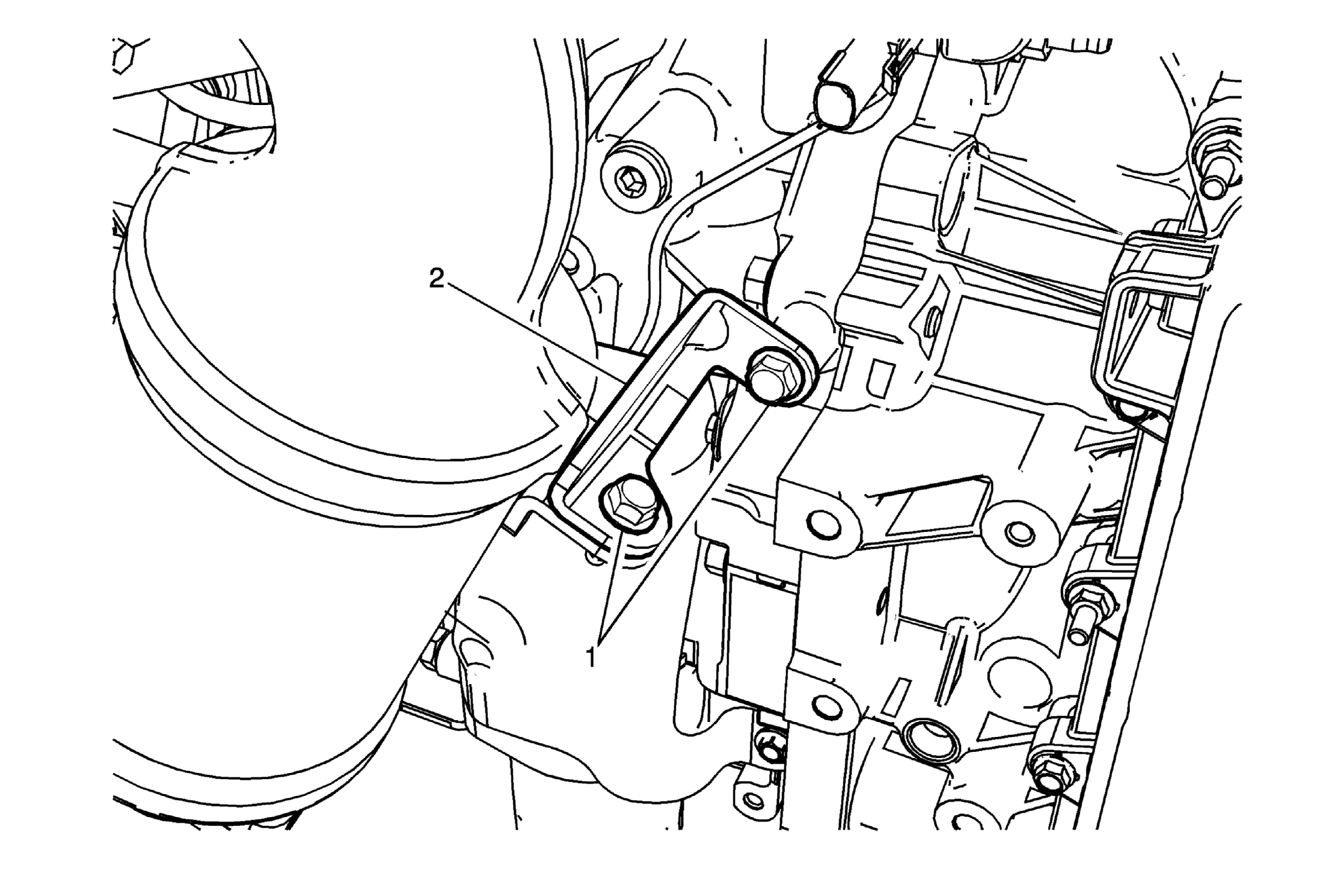

Fig 1: Catalytic Converter Brace (LTG Upper)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
1	Catalytic Converter Brace Fasteners (Qty:2) CAUTION: Refer to Fastener Caution . Tighten  22 N.m (16 lb ft)
2	Catalytic Converter Brace
