Catalytic Converter Brace Replacement (LTG Lower)

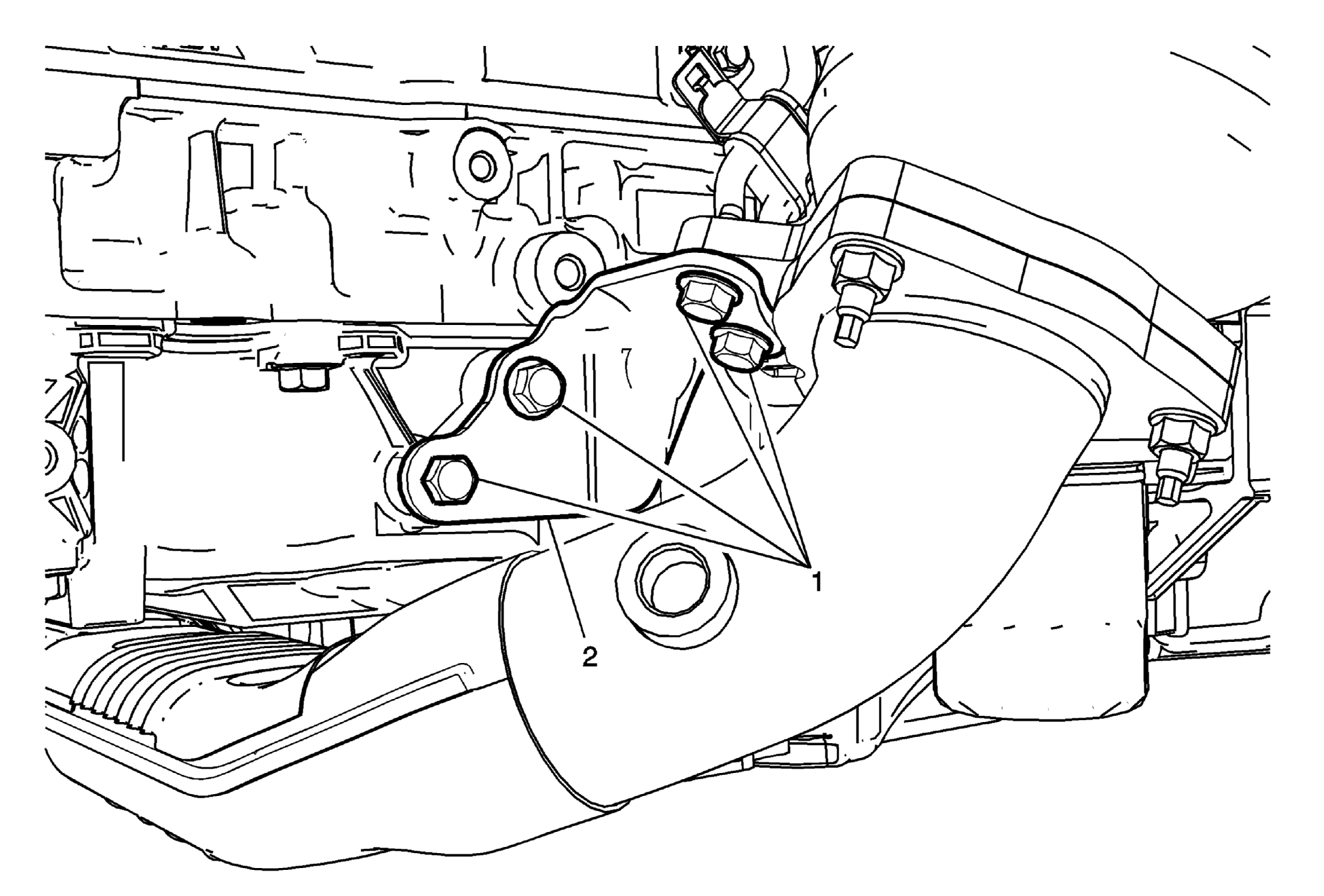

| Callout | Component Name |
|---|---|
| Preliminary Procedure Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle . |
|
| 1 | Catalytic Converter Brace Fasteners (Qty:4)
CAUTION:
Refer to Fastener Caution . Tighten 22 N.m (16 lb ft) |
| 2 | Catalytic Converter Brace |
