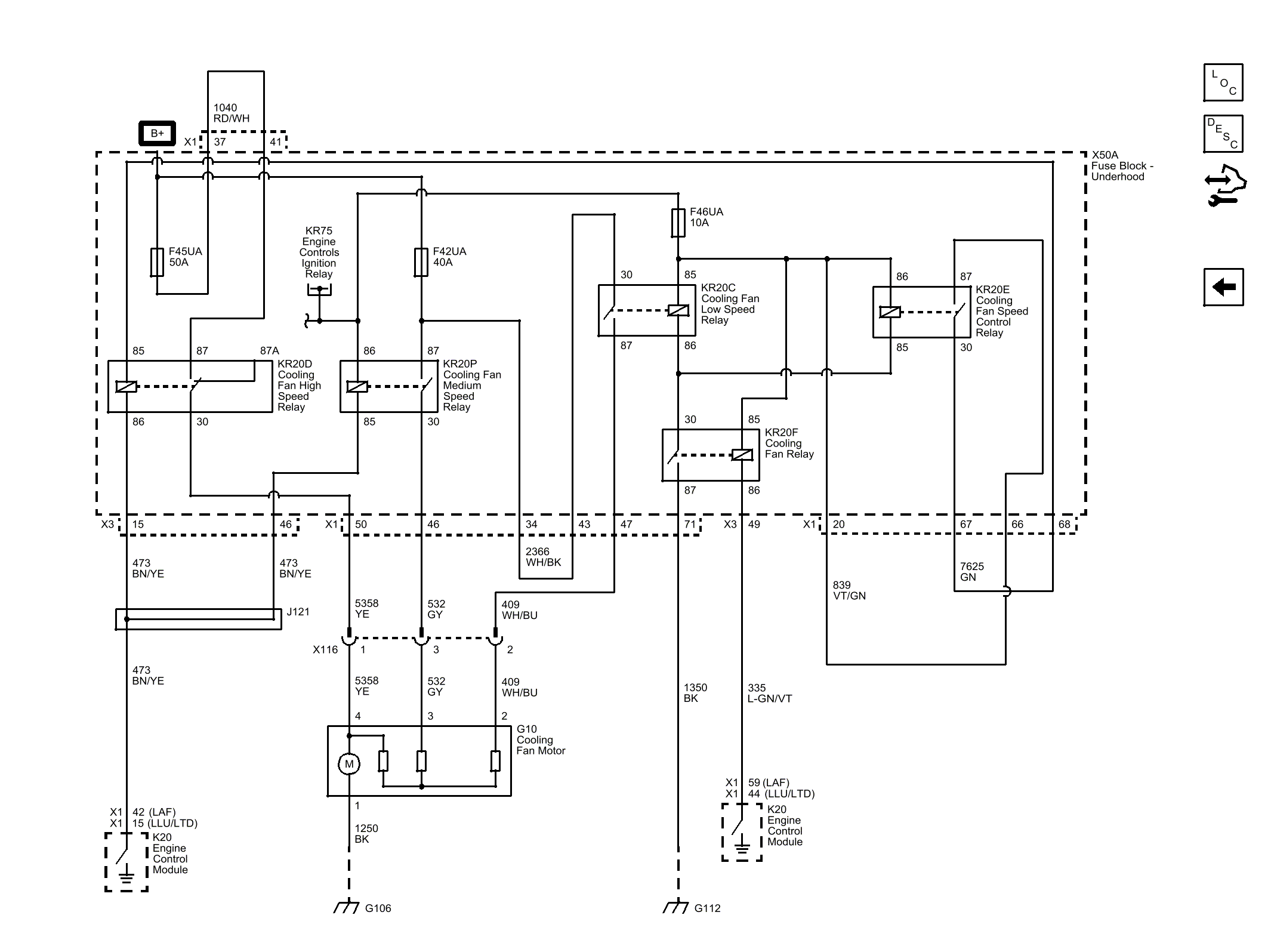

Home >> Buick >> 2015 >> Regal GS, AWD >> Repair and Diagnosis >> Engine Mechanical >> Cooling System (Mechanical) >> Engine Cooling System >> Schematic Wiring Diagrams >> Engine Heating/Cooling Wiring Schematics >> Single Fan (LLU/LAF/LTD)
