Radiator Surge Tank Outlet Hose Replacement (LEA)

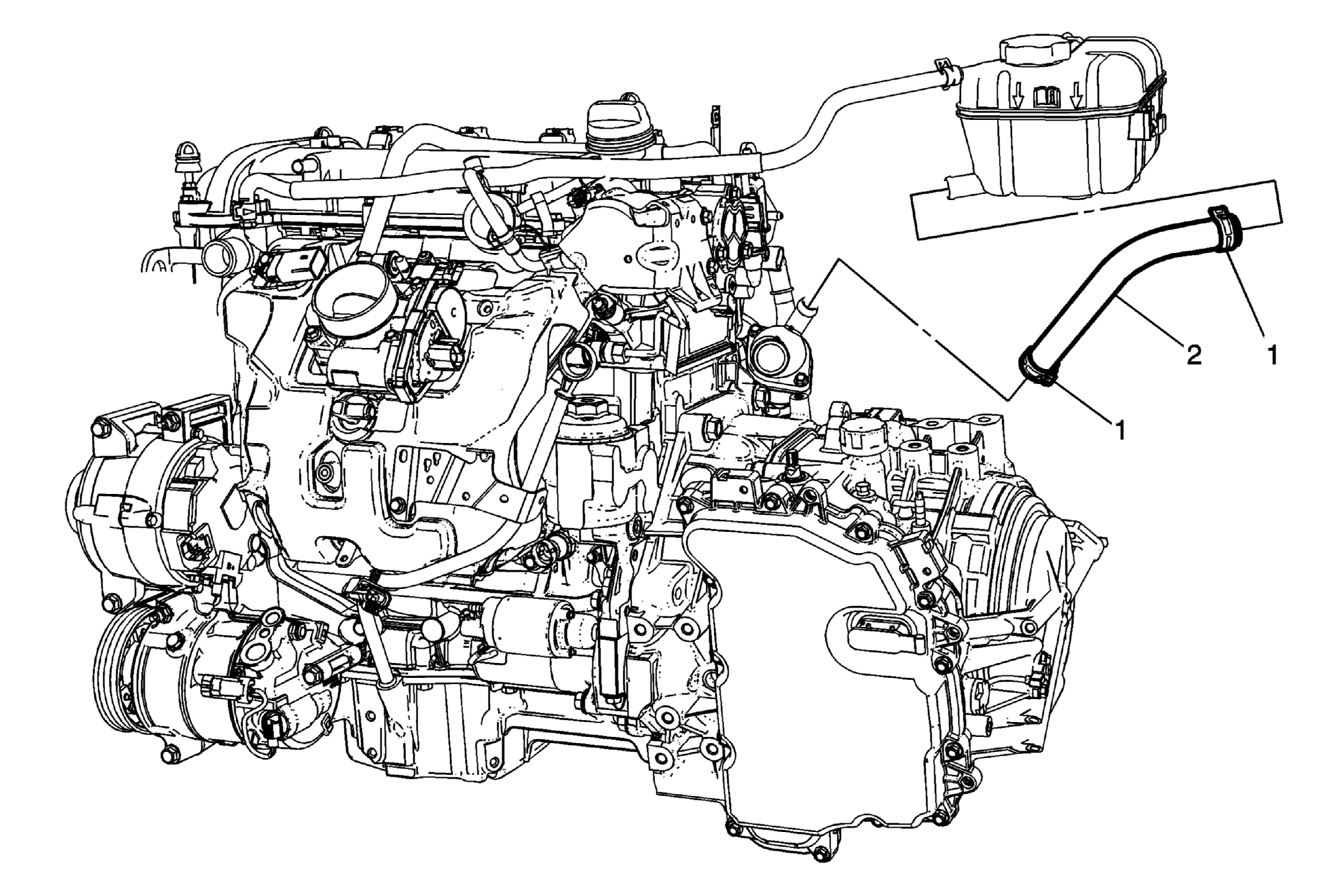

Fig 1: Radiator Surge Tank Outlet Hose (LEA)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures  Drain the cooling system. Refer to Cooling System Draining and Filling (GE 47716) .
1	Radiator Surge Tank Outlet Hose Clamps (Qty:2) Procedure  Reposition the radiator surge tank outlet hose clamp using BO38185  pliers Special Tools  BO38185  Hose Clamp Pliers For equivalent regional tools, refer to Special Tools .
2	Radiator Surge Tank Outlet Hose
