Radiator Inlet Hose Replacement (LUK)

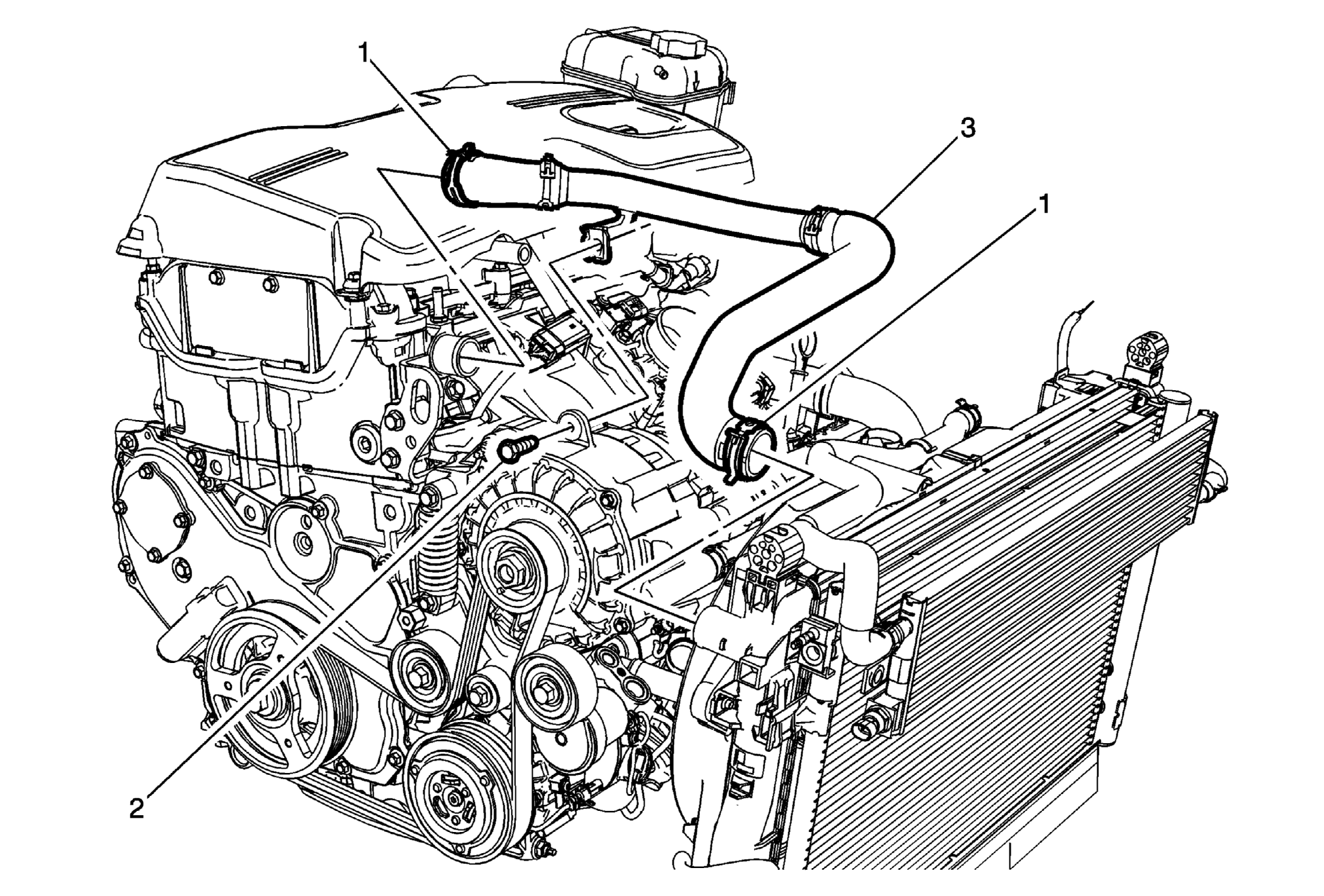

Fig 1: Radiator Inlet Hose (LUK)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure  Drain the cooling system. Refer to Cooling System Draining and Filling (GE 47716) .
1	Radiator Inlet Hose Clamps (Qty:2)
2	Radiator Inlet Hose Support Bracket Fastener CAUTION: Refer to Fastener Caution . Tighten:  25 N.m (18 lb ft)
3	Radiator Inlet Hose
