Radiator Drain Cock Replacement (LUK)

Preliminary Procedures

1. Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle .
2. To gain access to the drain cock, reposition the right front wheelhouse front liner. Refer to Front Wheelhouse Front Liner Replacement .
3. Place a drain pan under the right side of the radiator.

Procedure

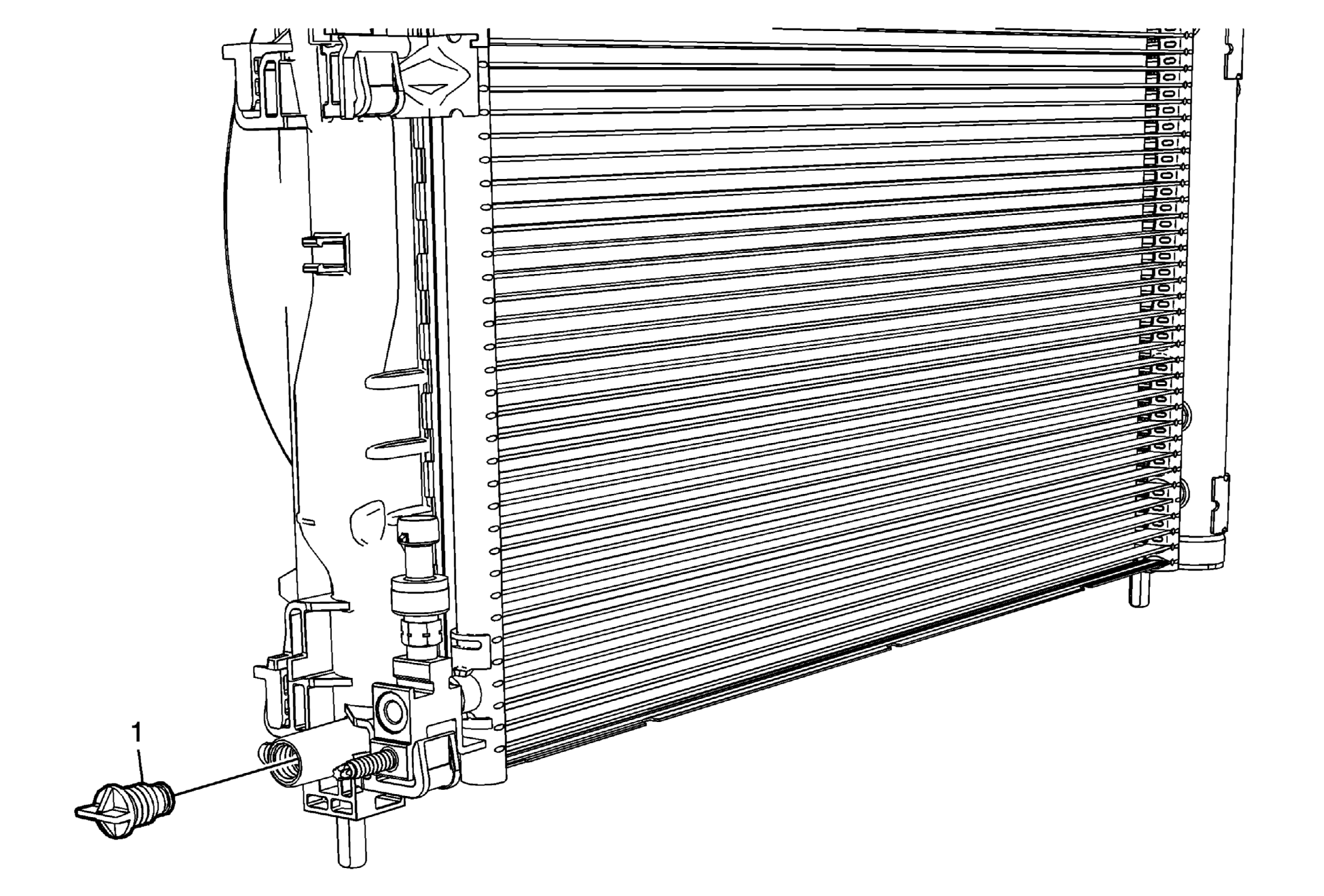

1. Attach a drain hose to the radiator drain port to guide the coolant into the drain pan.
2. Fill the coolant to the proper level. Refer to Cooling System Draining and Filling (GE 47716) .
