Radiator Drain Cock Replacement (LEA, LTG)

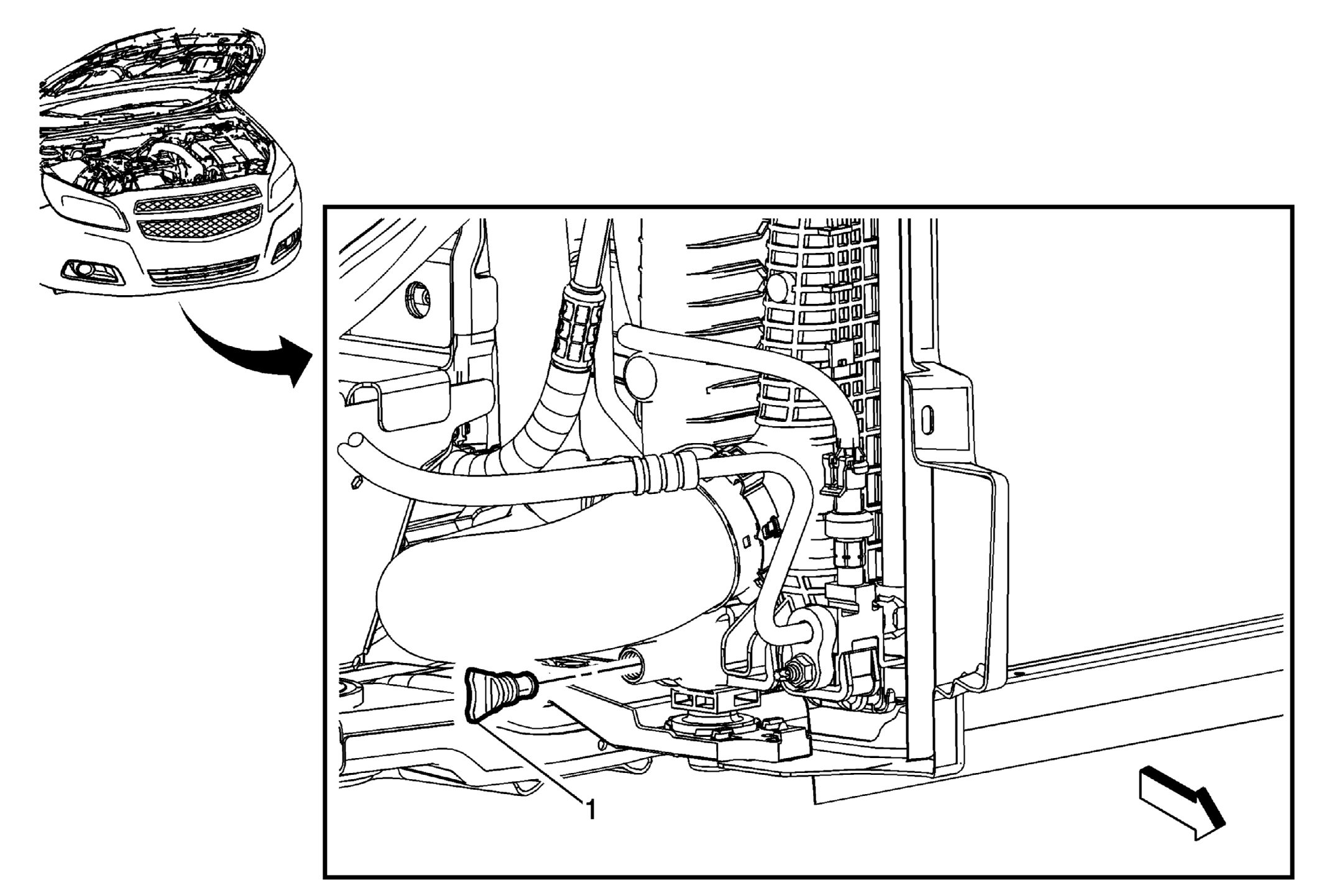

Fig 1: Radiator Drain Cock (LEA, LTG)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle Place a drain pan under the right side of the radiator.
1	Radiator Drain Cock NOTE: Attach a drain hose to the radiator drain port to guide the coolant into the drain pan. Procedure Fill the coolant to the proper level. Refer to Cooling System Draining and Filling (GE 47716) .

Callout

Component Name

Preliminary Procedures

Radiator Drain Cock

NOTE:

Attach a drain hose to the radiator drain port to guide the coolant into the drain pan.

Procedure
Fill the coolant to the proper level. Refer to Cooling System Draining and Filling (GE 47716) .
