Engine Coolant Air Bleed Hose Replacement (LTG)

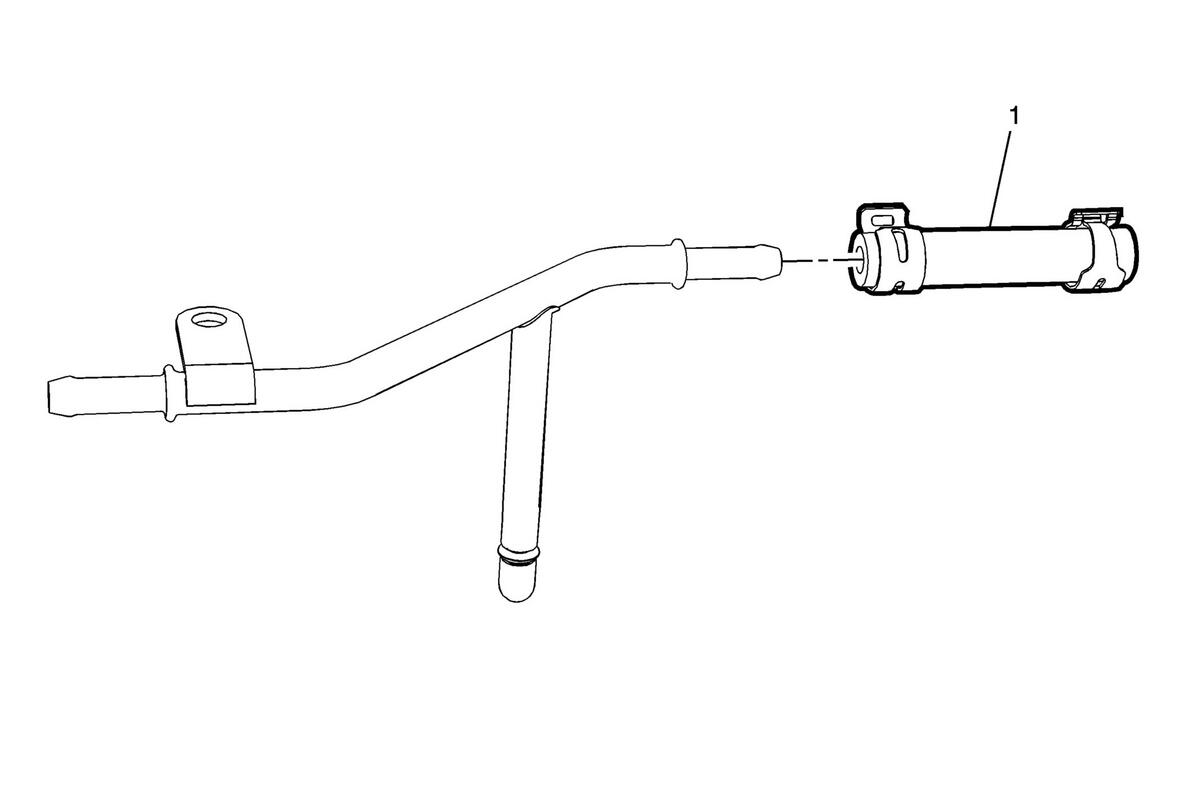

Fig 1: Engine Coolant Air Bleed Hose (LTG)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure  Remove the engine coolant air bleed pipe. Refer to Engine Coolant Air Bleed Pipe Replacement (LTG) . Special Tools  BO-38185  Hose Clamp Pliers For equivalent regional tools, refer to Special Tools .
1	Engine Coolant Air Bleed Hose NOTE: Replace hose clamps if necessary.
