Ignition Switch (without BTM) (except CZ2)

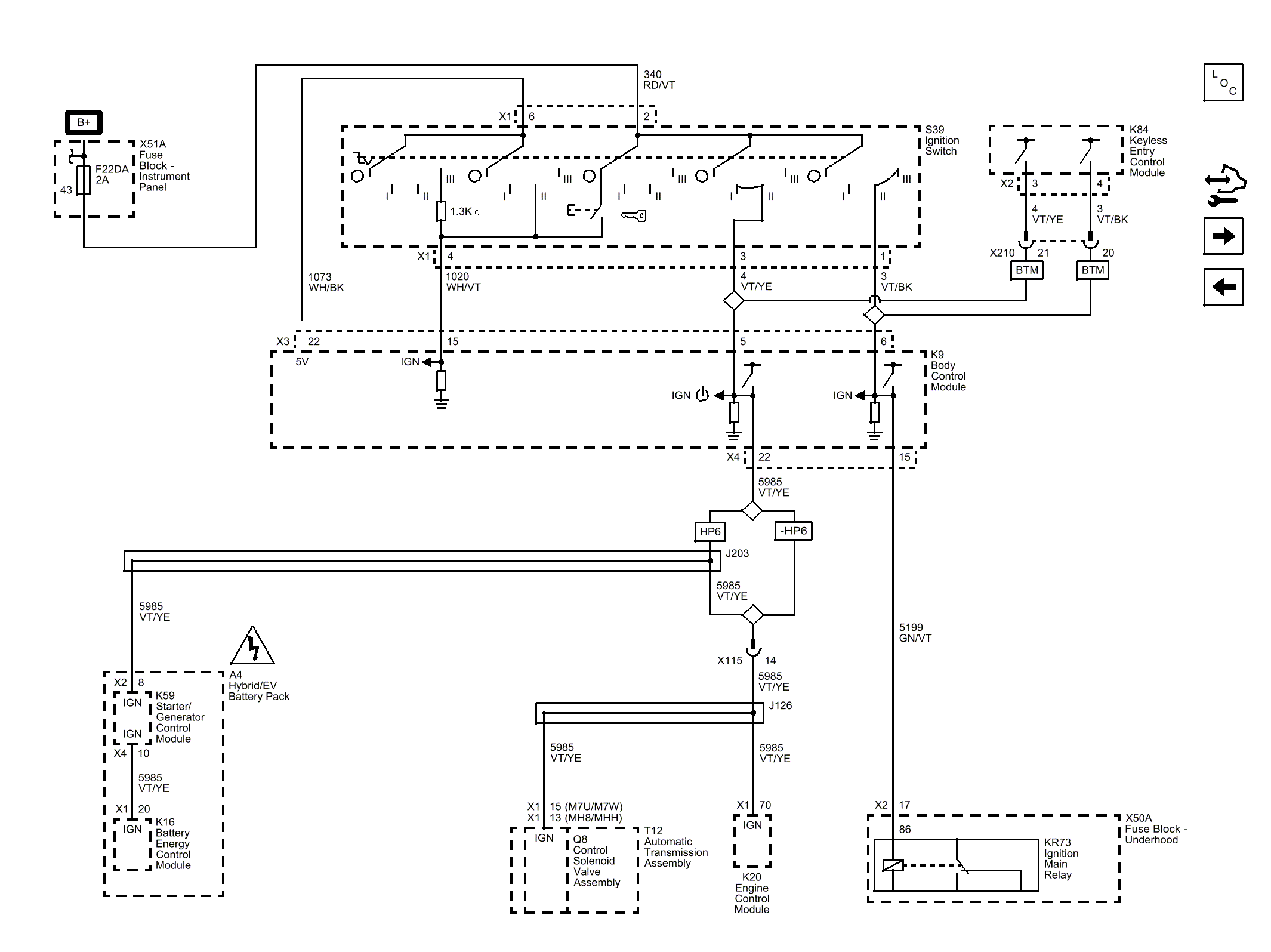

Fig 1: Ignition Switch (without BTM) (except CZ2)

GM3770070

Courtesy of GENERAL MOTORS COMPANY
