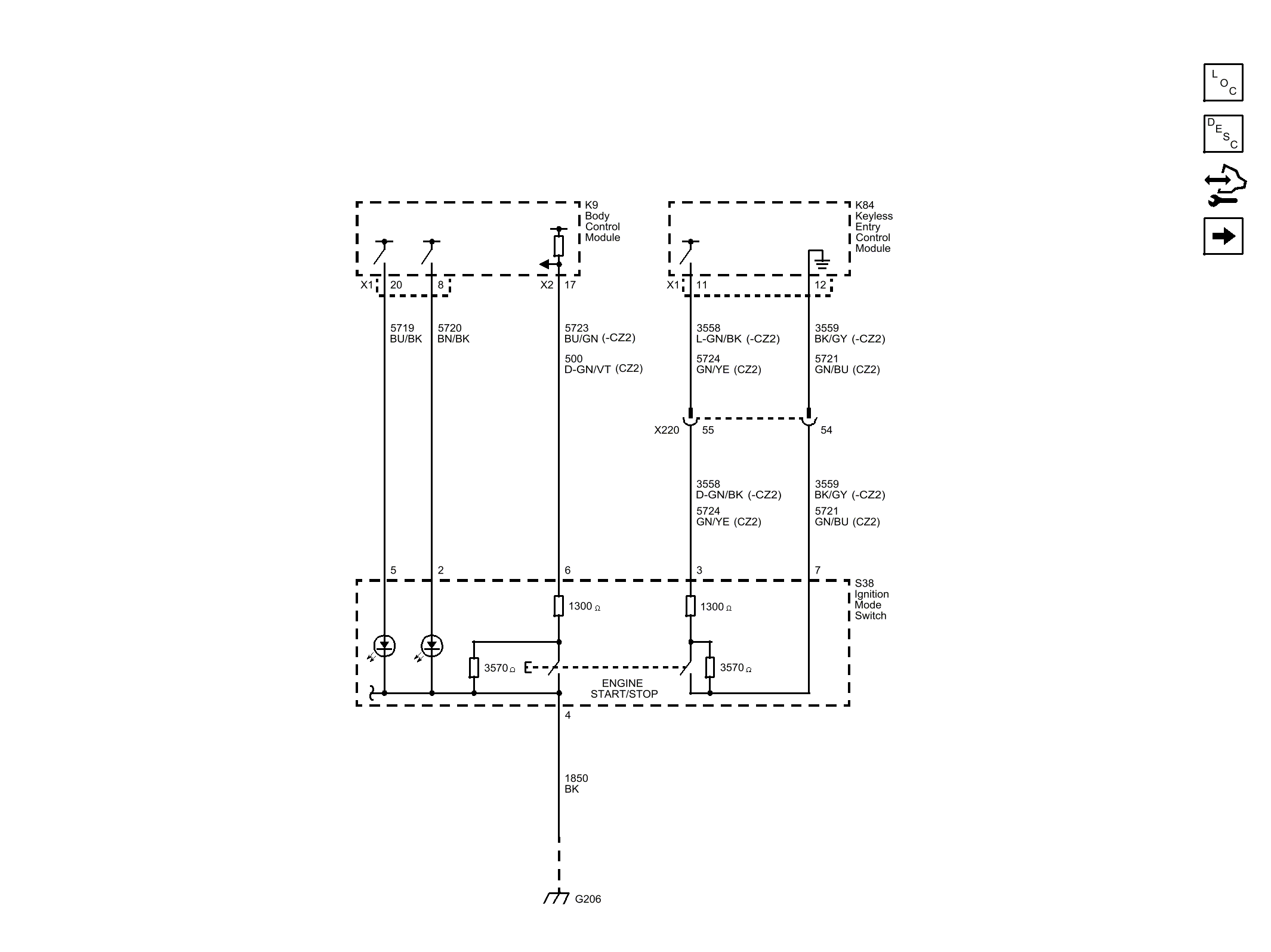

Home >> Buick >> 2015 >> Regal GS, AWD >> Repair and Diagnosis >> Electrical >> Wiring Diagrams >> Wiring Systems And Power Management - Wiring Schematic Diagrams - Power MODING Schematics >> Schematic Wiring Diagrams >> Power Moding Wiring Schematics >> Ignition Mode Switch (BTM)
