F2DA, F3DA, F8DA, F9DA, F10DA, and F11DA Fuses, and F12DA, F13DA Circuit Breakers (CZ2)

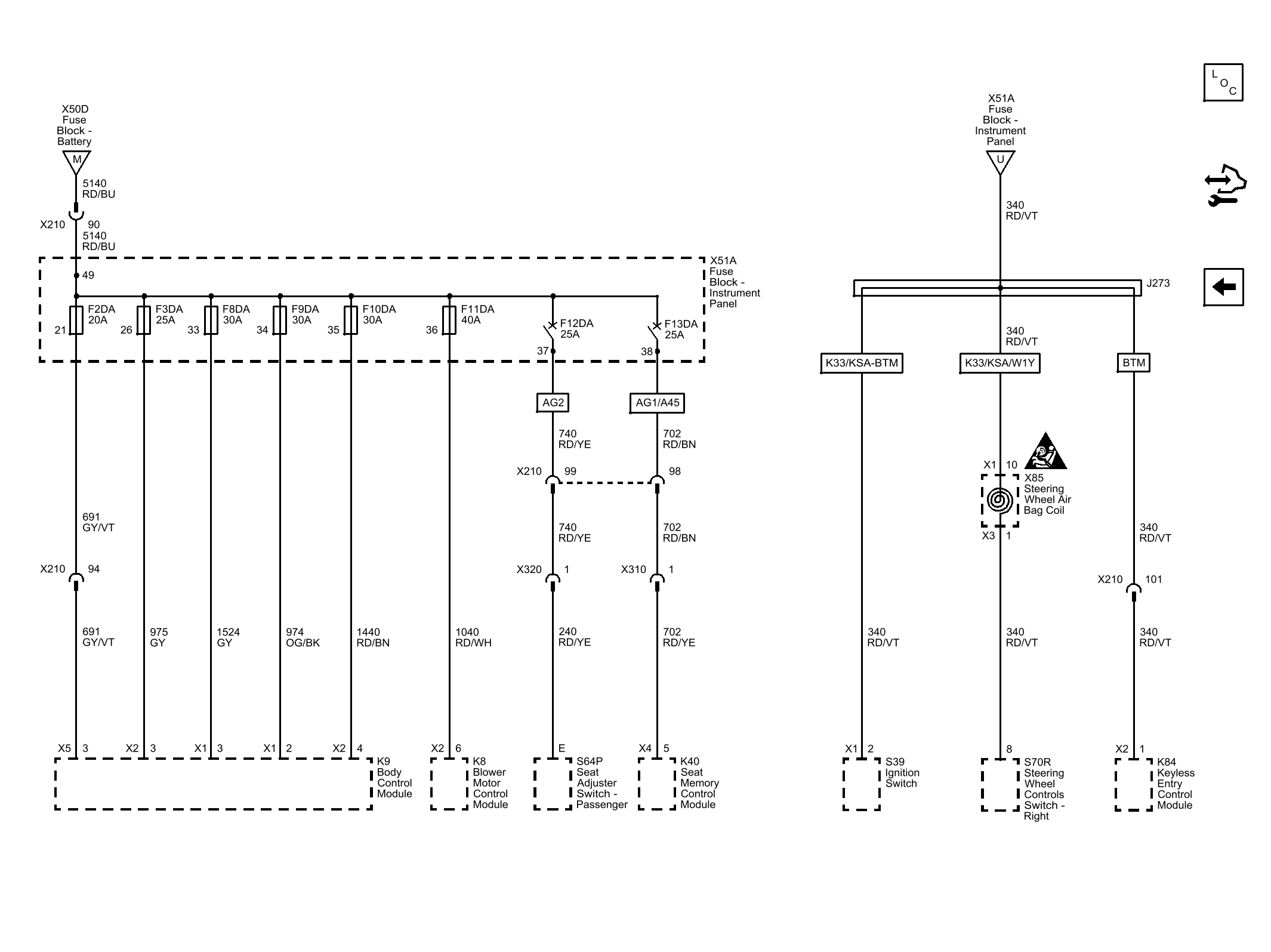

Fig 1: F2DA, F3DA, F8DA, F9DA, F10DA, and F11DA Fuses, and F12DA, F13DA Circuit Breakers (CZ2)
GM3770059Courtesy of GENERAL MOTORS COMPANY
