F1DA, F4DA, F5DA, F6DA, F7DA, and F18DA Fuses (CZ2)

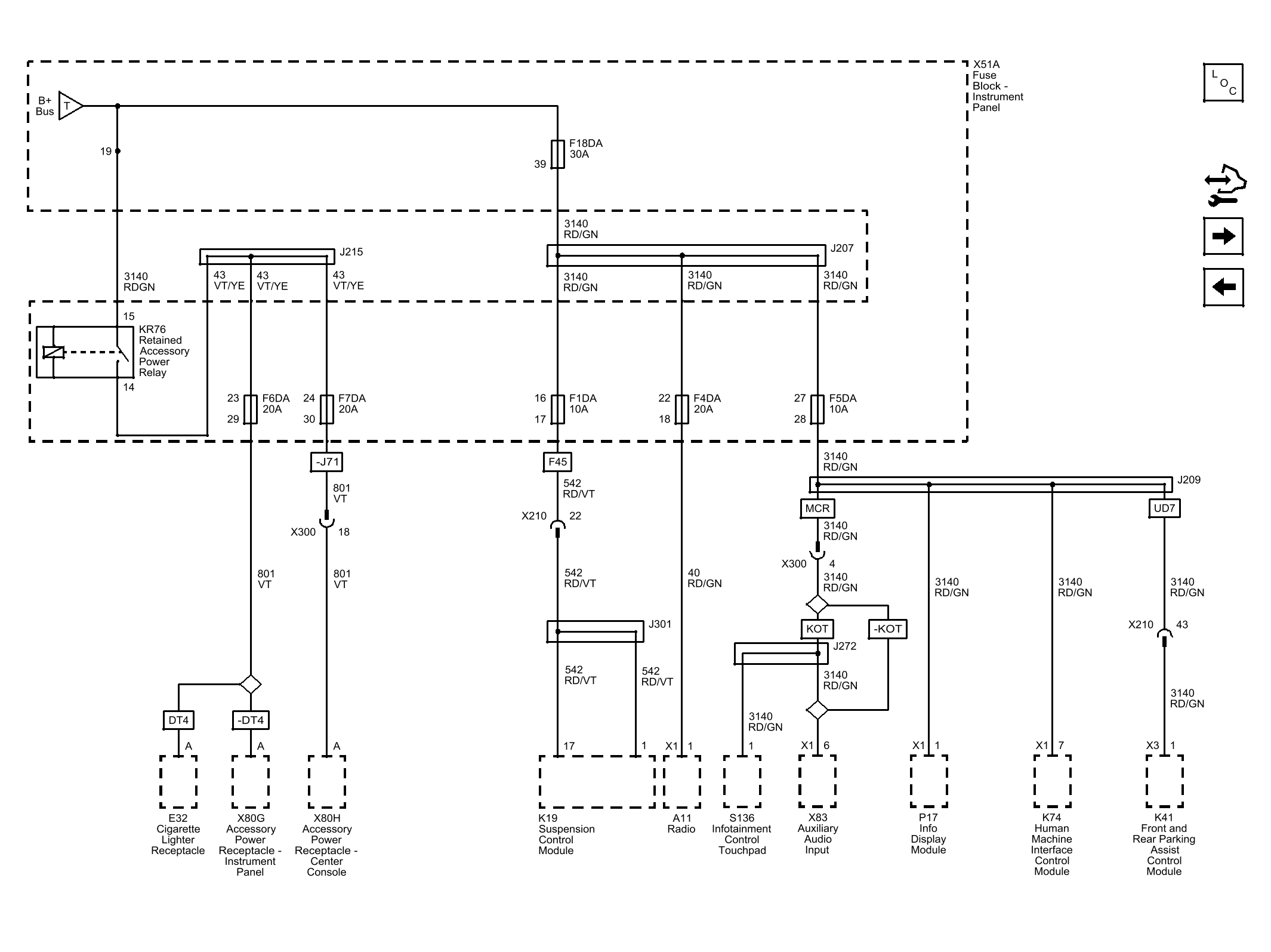

Fig 1: F1DA, F4DA, F5DA, F6DA, F7DA, and F18DA Fuses (CZ2)

GM3770051

Courtesy of GENERAL MOTORS COMPANY
