B+ Bus X50D Fuse Block - Battery (except CZ2)

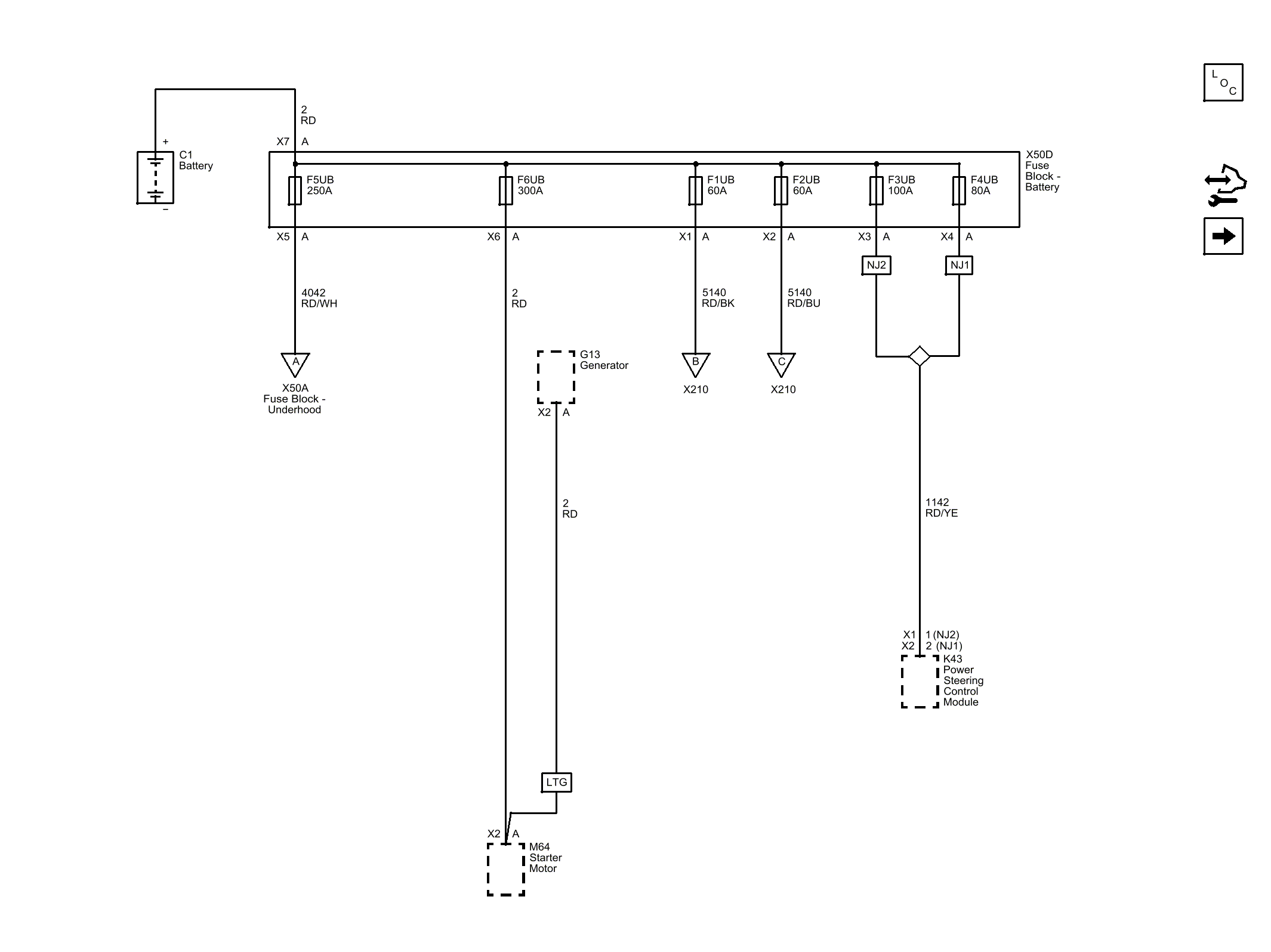

Fig 1: B+ Bus X50D Fuse Block - Battery (except CZ2)

GM3769880

Courtesy of GENERAL MOTORS COMPANY
