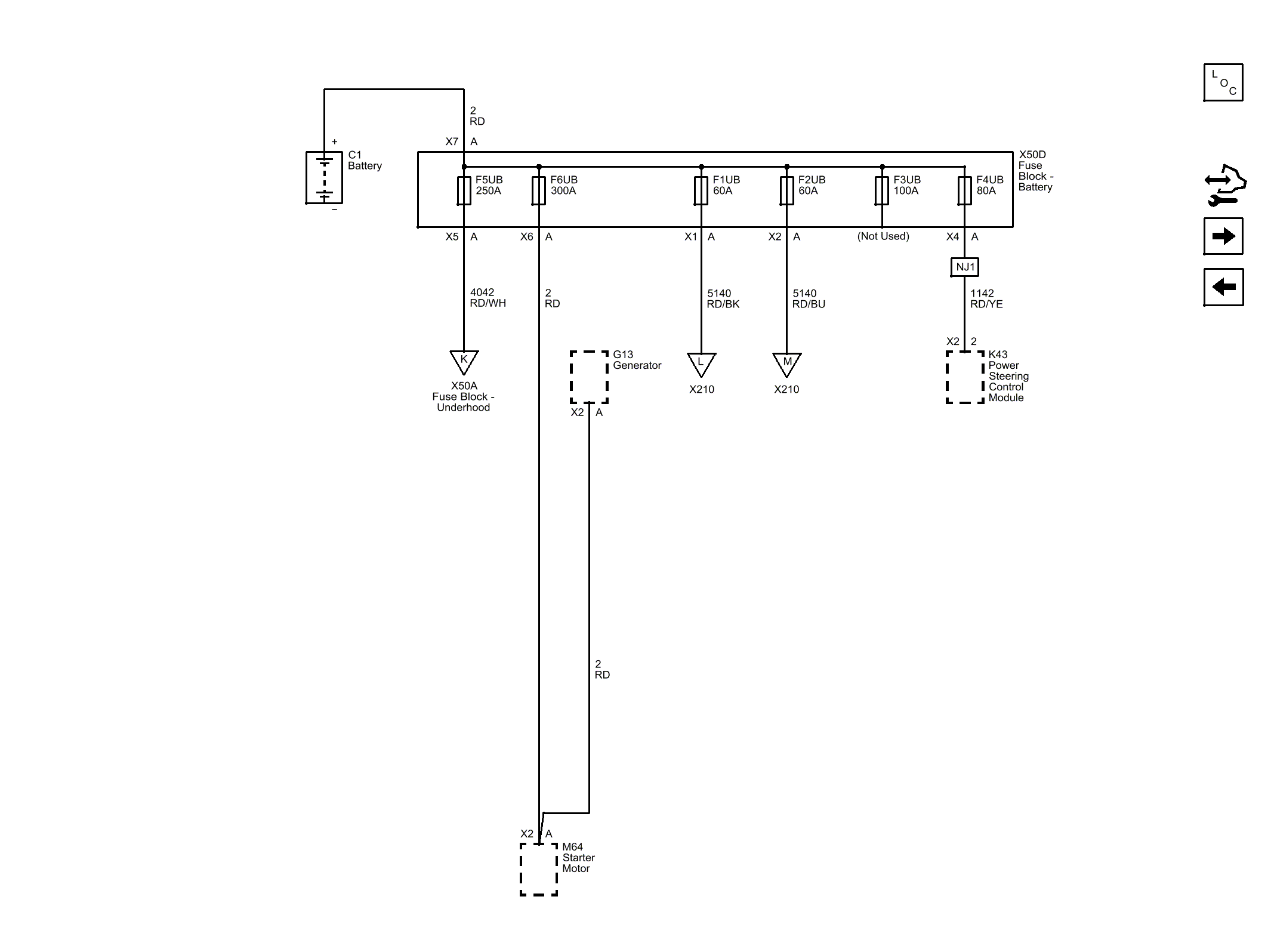

Home >> Buick >> 2015 >> Regal GS, AWD >> Repair and Diagnosis >> Electrical >> Wiring Diagrams >> Wiring Systems And Power Management - Wiring Schematic Diagrams - Power Distribution Schematics >> Schematic Wiring Diagrams >> Power Distribution Wiring Schematics >> B+ Bus X50D Fuse Block - Battery (CZ2)
