B+ Bus X50A Fuse Block - Underhood (1 of 2) (CZ2)

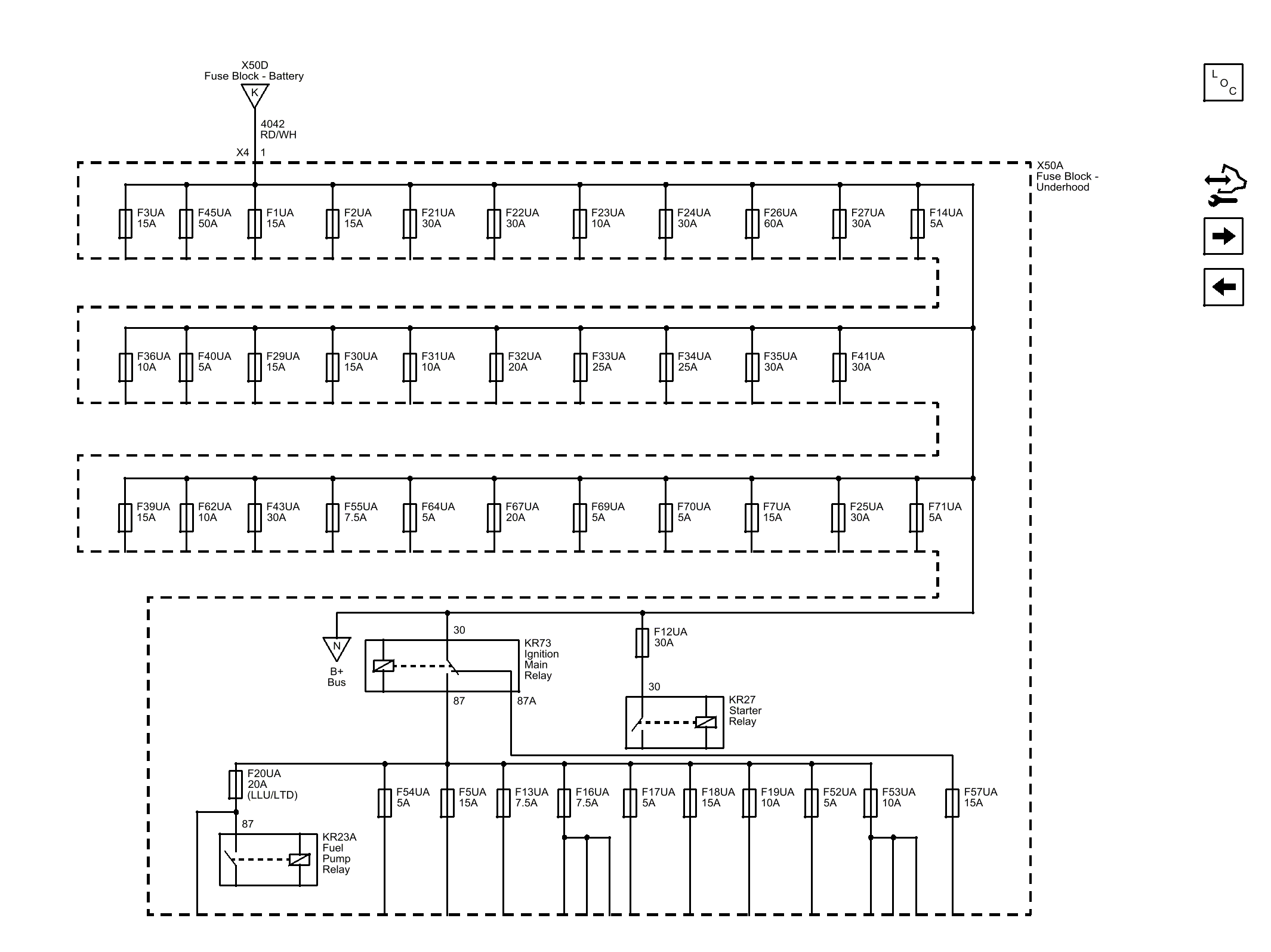

Fig 1: B+ Bus X50A Fuse Block - Underhood (1 of 2) (CZ2)

GM3769906

Courtesy of GENERAL MOTORS COMPANY
