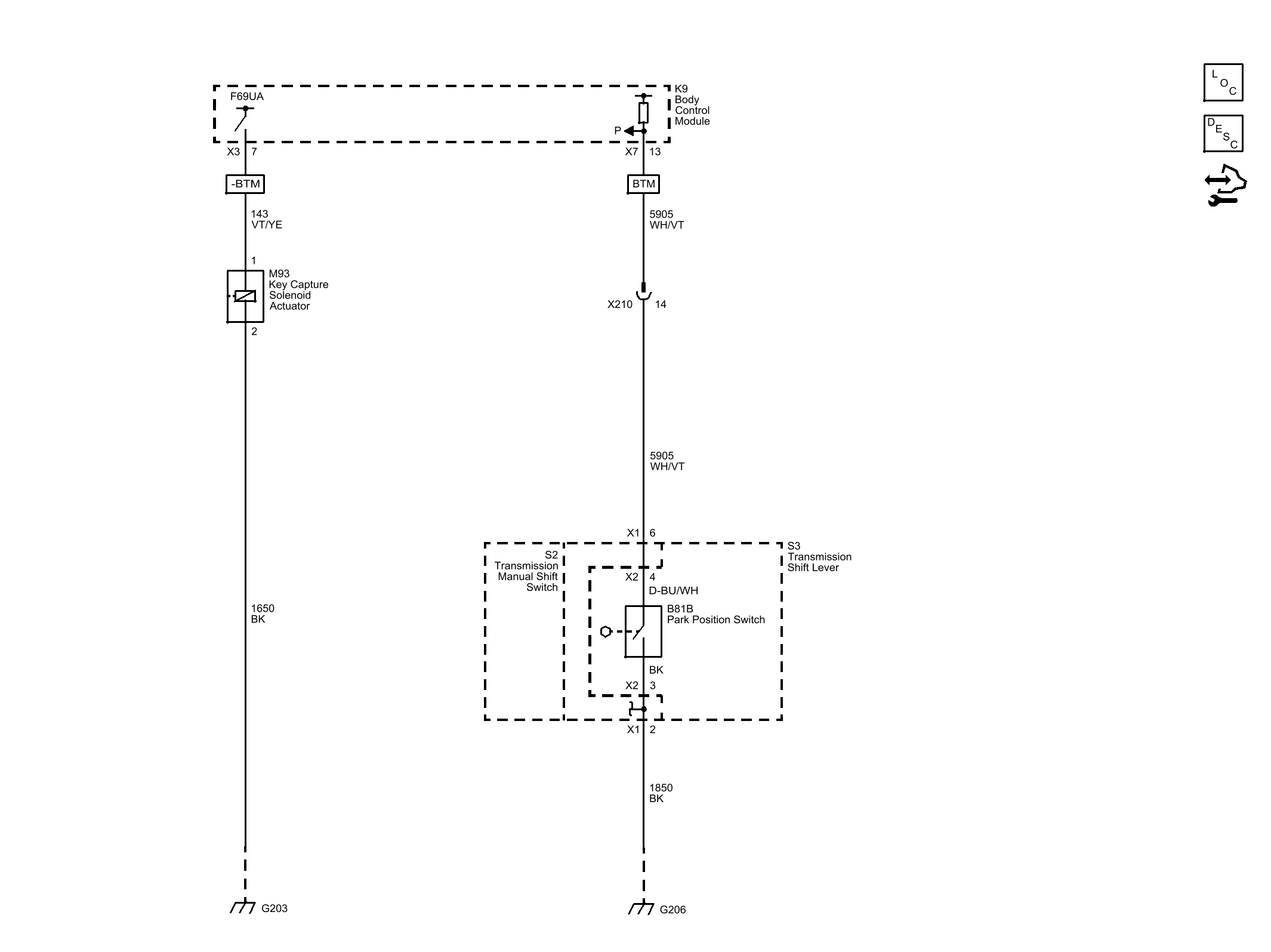

Home >> Buick >> 2015 >> Regal GS, AWD >> Repair and Diagnosis >> Electrical >> Wiring Diagrams >> Wiring Systems And Power Management - Wiring Schematic Diagrams - Ignition Lock Schematics >> Schematic Wiring Diagrams >> Ignition Lock Wiring Schematics >> Ignition Lock
