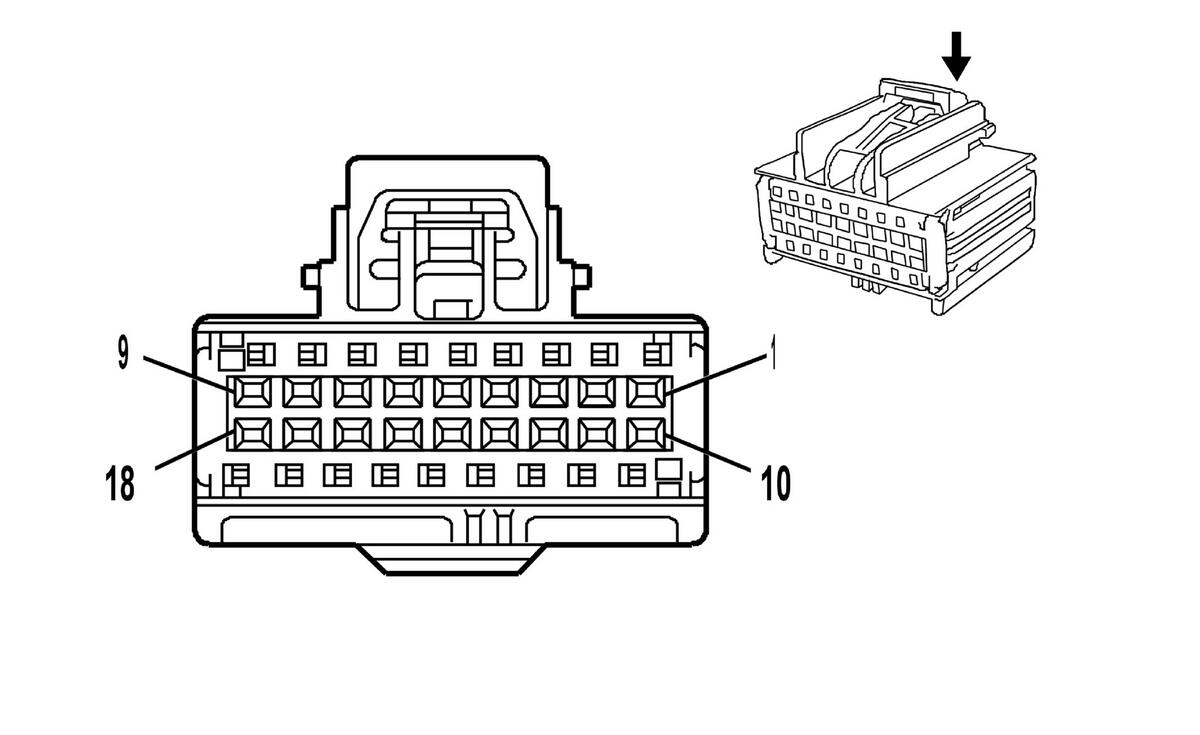

S48A Multifunction Switch - Instrument Panel
|
|
Connector Part Information
- Harness Type: Instrument Panel
- OEM Connector: 13548562
- Service Connector: 89047360
- Description: 18-Way F 0.64 Kaizen Series (BK)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
Service Terminal |
Tray |
Core Crimp |
Insulation Crimp |
| I |
13575867 |
J-35616-64B (LT BU) |
J-38125-215A |
SAIT-A03T-M064 |
14 |
P |
P |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
0.35 |
YE |
6817 |
LED Backlight Dimming Control |
I |
- |
| 2 |
0.35 |
D-BU/GY |
553 |
Shift Select Switch Performance Signal |
I |
- |
| 3 |
0.5 |
GY/L-GN |
2555 |
Rear Park Assist Disable Signal |
I |
- |
| 4-5 |
- |
- |
- |
Not Occupied |
- |
- |
| 6 |
0.35 |
L-GN/WH |
111 |
Hazard Switch Signal |
I |
- |
| 7 |
0.35 |
GY/YE |
7543 |
Hazard LED Dimming Signal |
I |
- |
| 8 |
- |
- |
- |
Not Occupied |
- |
- |
| 9 |
0.35 |
WH |
3152 |
Lane Departure Warning Indicator Control |
I |
- |
| 10 |
0.35 |
L-GN/GY |
3215 |
Computer Command Ride Sport LED Control |
I |
- |
| 11 |
0.35 |
D-BU/VT |
1788 |
Traction Control Switch Signal (1) |
I |
- |
| 12 |
0.35 |
GY/WH |
3153 |
Lane Departure Warning Disable Switch Signal |
I |
- |
| 13 |
0.35 |
GY |
5054 |
Sport Mode Switch Signal |
I |
- |
| 14 |
0.35 |
WH |
6816 |
Indicator Dimming Control |
I |
- |
| 15 |
0.5 |
BK |
1850 |
Ground |
I |
- |
| 16 |
- |
- |
- |
Not Occupied |
- |
- |
| 17 |
0.5 |
L-GN/BN |
5852 |
Rear Park Assist LED Disable Signal |
I |
- |
| 18 |
0.35 |
WH/D-BU |
3214 |
Computer Command Ride Tour LED Control |
I |
- |
