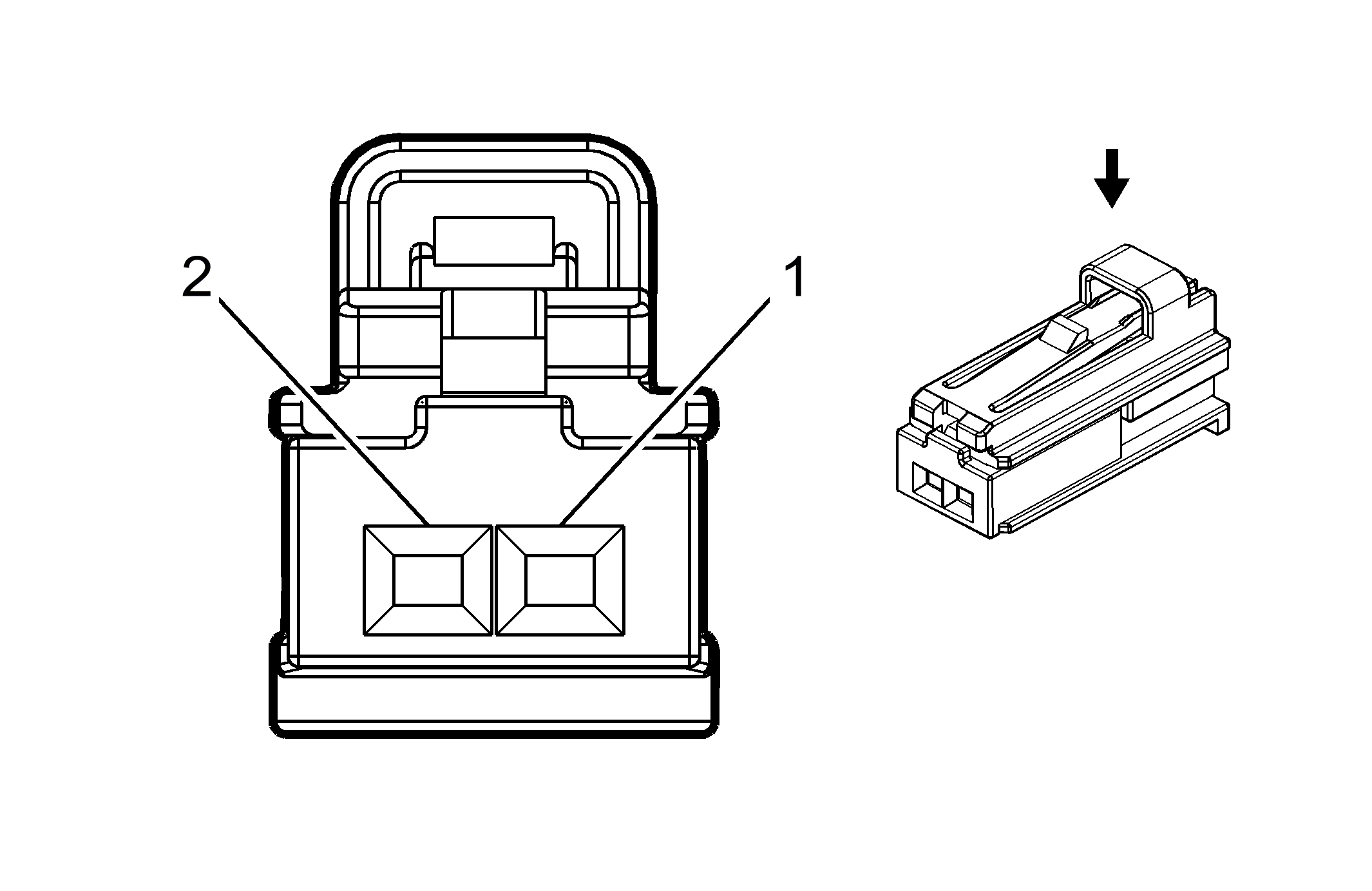

KR38 Main Contactor
|
|
Connector Part Information
- Harness Type: Battery Control Module
- OEM Connector: 10866283
- Service Connector: Service by Harness - See Part Catalog
- Description: 2-Way F 0.64 GET Series (BK)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
Service Terminal |
Tray |
Core Crimp |
Insulation Crimp |
| I |
Not Available |
J-35616-64B (LT BU) |
Not Available |
Not Available |
Not Available |
Not Available |
Not Available |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
0.35 |
RD/BK |
102 |
Battery Positive Voltage |
I |
- |
| 2 |
0.35 |
PK |
5121 |
High Voltage Relay Low (1) |
I |
- |
