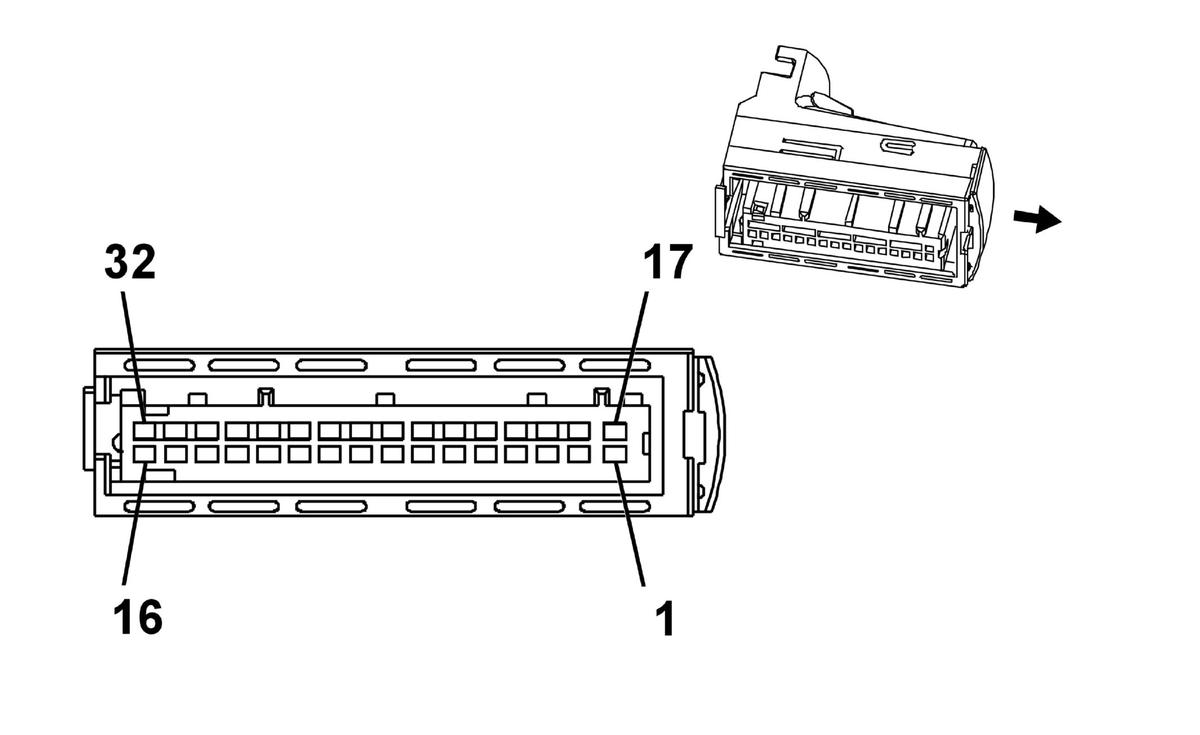

K19 Suspension Control Module

Connector Part Information

Harness Type: Body
OEM Connector: 13548598
Service Connector: 13576557
Description: 32-Way F 0.64 Micro Quadlock Series (BU)

Terminal Part Information

Terminal Type ID	Terminated Lead	Diagnostic Test Probe	Terminal Removal Tool	Service Terminal	Tray	Core Crimp	Insulation Crimp
I	13582243	J-35616-64B (LT BU)	J-38125-12A	Not Available	Not Available	Not Available	Not Available
II	13575859	J-35616-64B (LT BU)	J-38125-12A	Not Available	Not Available	Not Available	Not Available
III	13575782	J-35616-64B (LT BU)	J-38125-12A	Not Available	Not Available	Not Available	Not Available

Pin	Size	Color	Circuit	Function	Terminal Type ID	Option
1	0.75	RD/VT	542	Battery Positive Voltage	I	-
2	0.75	L-GN/GY	1119	Right Rear Damping Servo Control	I	-
3	0.75	BN/L-GN	1118	Right Rear Damping Servo Supply Voltage	I	-
4	0.75 0.75	D-BU/GY D-BU/GY	1114 1114	Left Rear Damping Servo Supply Voltage Left Rear Damping Servo Supply Voltage	I	-
5	0.75 0.75	L-GN/VT L-GN/VT	1115 1115	Left Rear Damping Servo Control Left Rear Damping Servo Control	I	-
6	0.5	WH/D-BU	5986	Serial Data Communication Enable	II	-
7	0.5	WH/YE	3256	Rear Accelerometer Signal	II	-
8	0.5	WH/VT	3259	Left Front Accelerometer Signal	III	-
9	0.5	WH/BN	3253	Right Front Accelerometer Signal	III	-
10	0.5	WH	1100	Left Front Wheel Damping Accelerometer Signal	II	-
11	0.5	WH	1106	Right Front Wheel Damping Accelerometer Signal	II	-
12	0.75	YE/RD	1817	Left Front Wheel Accelerometer Voltage Reference	I	-
13	0.75	GY/D-BU	1113	Left Front Damping Servo Control	I	-
14	0.75	BN/WH	1107	Left Front Damping Servo Supply Voltage	I	-
15	0.75	BN/D-BU	1116	Right Front Damping Servo Supply Voltage	I	-
16	0.75	GY/WH	1117	Right Front Damping Servo Control	I	-
17	0.75	RD/VT	542	Battery Positive Voltage	I	-
18	0.75	BK	2350	Ground	I	-
19	0.75	BK	2350	Ground	I	-
20	0.75	BK/BN	1099	Left Front Wheel Damping Accelerometer Low Reference	I	-
21	-	-	-	Not Occupied	-	-
22	0.5	D-BU	2500	High Speed GMLAN Serial Data (+) (1)	III	-
23	0.5 0.5	D-BU D-BU	2500 2500	High Speed GMLAN Serial Data (+) (1) High Speed GMLAN Serial Data (+) (1)	III	-
24	0.5 0.5	WH WH	2501 2501	High Speed GMLAN Serial Data (-) (1) High Speed GMLAN Serial Data (-) (1)	III	-
25	0.5	WH	2501	High Speed GMLAN Serial Data (-) (1)	III	-
26-27	-	-	-	Not Occupied	-	-
28	0.5	D-BU/YE	6105	High Speed GMLAN Serial Data (+) (2)	II	-
29	0.5 0.5 0.5	D-BU/YE D-BU/YE D-BU/YE	6105 6105 6105	High Speed GMLAN Serial Data (+) (2) High Speed GMLAN Serial Data (+) (2) High Speed GMLAN Serial Data (+) (2)	II	-
30	0.5 0.5 0.5	WH WH WH	6106 6106 6106	High Speed GMLAN Serial Data (-) (2) High Speed GMLAN Serial Data (-) (2) High Speed GMLAN Serial Data (-) (2)	II	-
31	0.5	WH	6106	High Speed GMLAN Serial Data (-) (2)	II	-
32	-	-	-	Not Occupied	-	-
