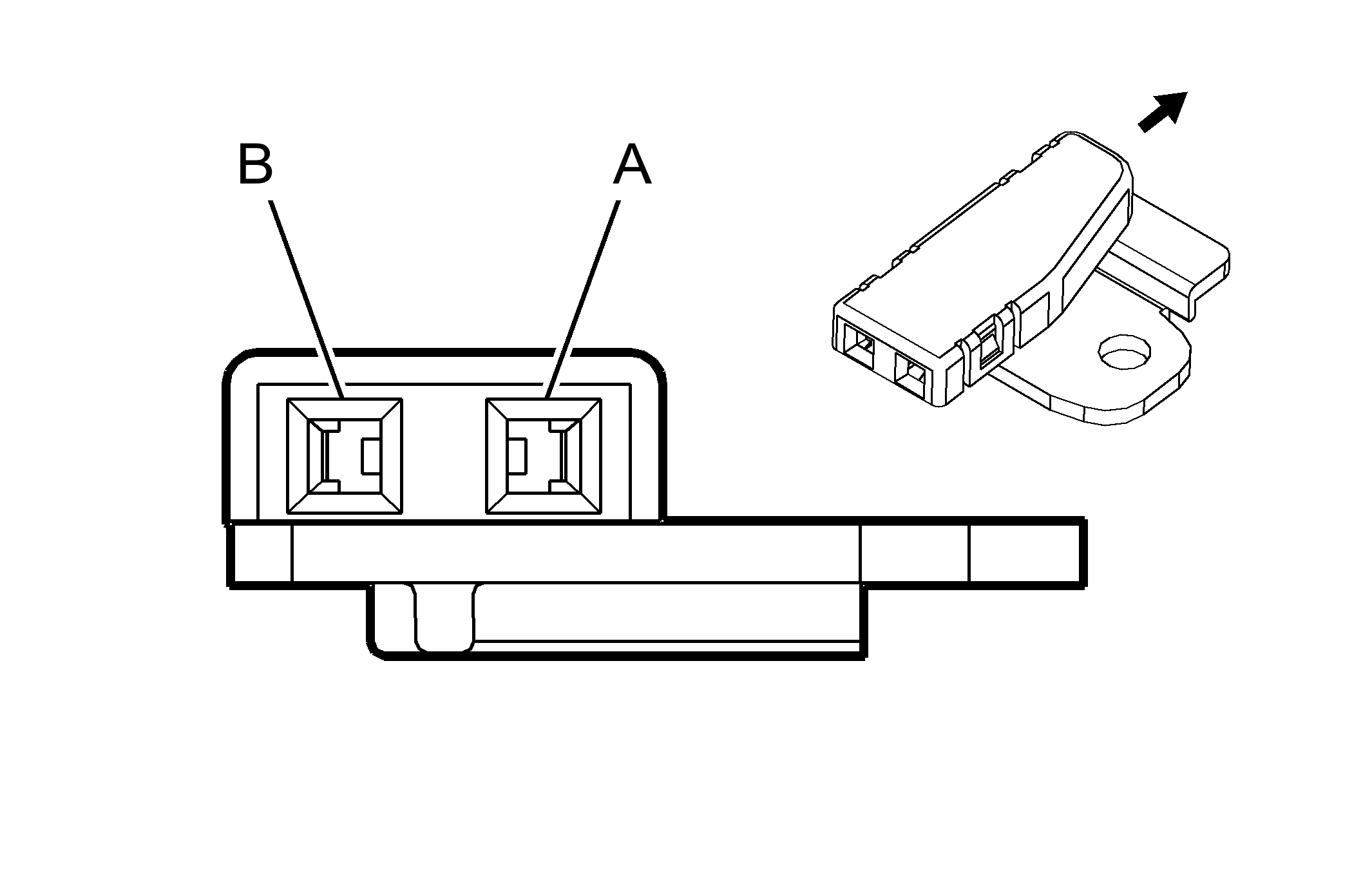

F102 Hybrid Battery Pack Cable Cover
|
|
Connector Part Information
- Harness Type: Battery Control Module
- OEM Connector: 13707327
- Service Connector: Service by Harness - See Part Catalog
- Description: 2-Way F 150 Metri Pack HVIL Series (BK)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
Service Terminal |
Tray |
Core Crimp |
Insulation Crimp |
| I |
Not Available |
J-35616-14 (GN) |
Not Available |
Not Available |
Not Available |
Not Available |
Not Available |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| A |
0.35 |
PU |
5087 |
High Voltage Interlock Loop Signal (1) |
I |
- |
| B |
0.35 |
|
5088 |
High Voltage Interlock Loop Low Reference (1) |
I |
- |
