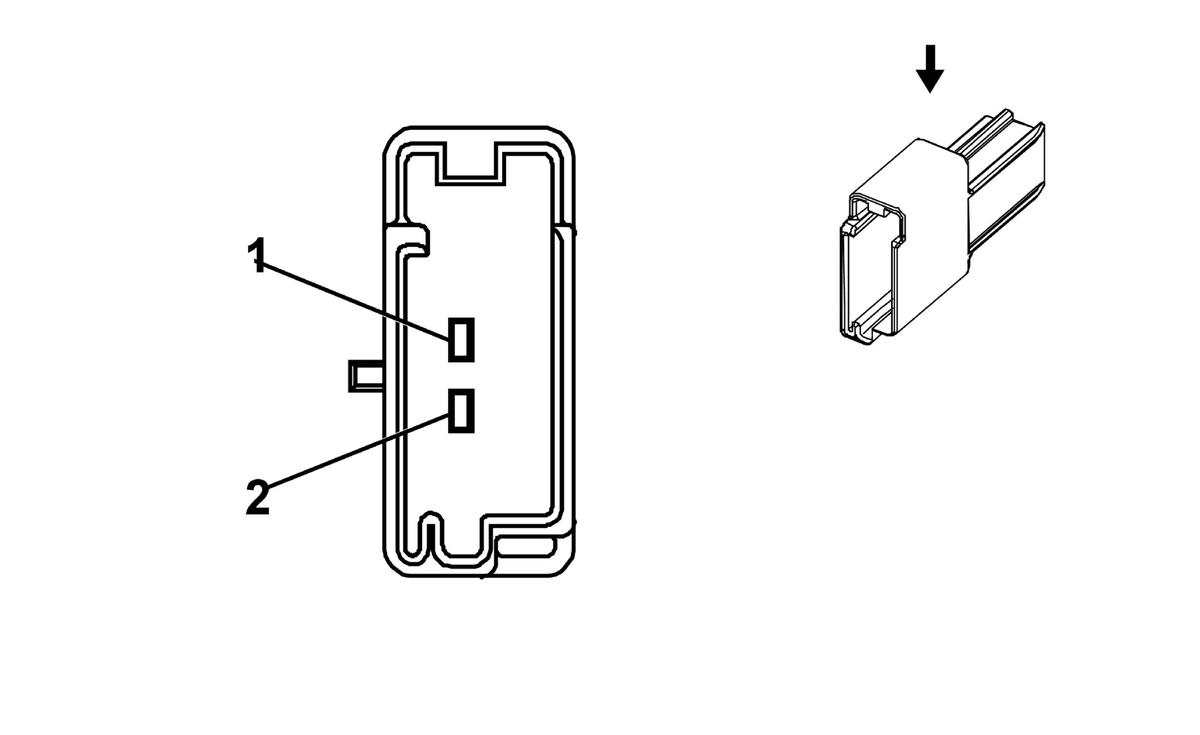

E14A Seat Heating Element - Driver Back
|
|
Connector Part Information
- Harness Type: Driver Seat Back
- OEM Connector: 6098-5513
- Service Connector: Service by Harness - See Part Catalog
- Description: 2-Way M 1.5 Series (BK)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
Service Terminal |
Tray |
Core Crimp |
Insulation Crimp |
| I |
Not Available |
J-35616-3 (GY) |
Not Available |
Not Available |
Not Available |
Not Available |
Not Available |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
1 |
VT/BK |
2424 |
Driver Heated Back Element Return |
I |
- |
| 2 |
1 |
BN/BK |
2078 |
Driver Heated Seat Element Return |
I |
- |
