B30 Hybrid Battery Pack Current Sensor
|
|
Connector Part Information
- Harness Type: Battery Control Module
- OEM Connector: 10846361
- Service Connector: Service by Harness - See Part Catalog

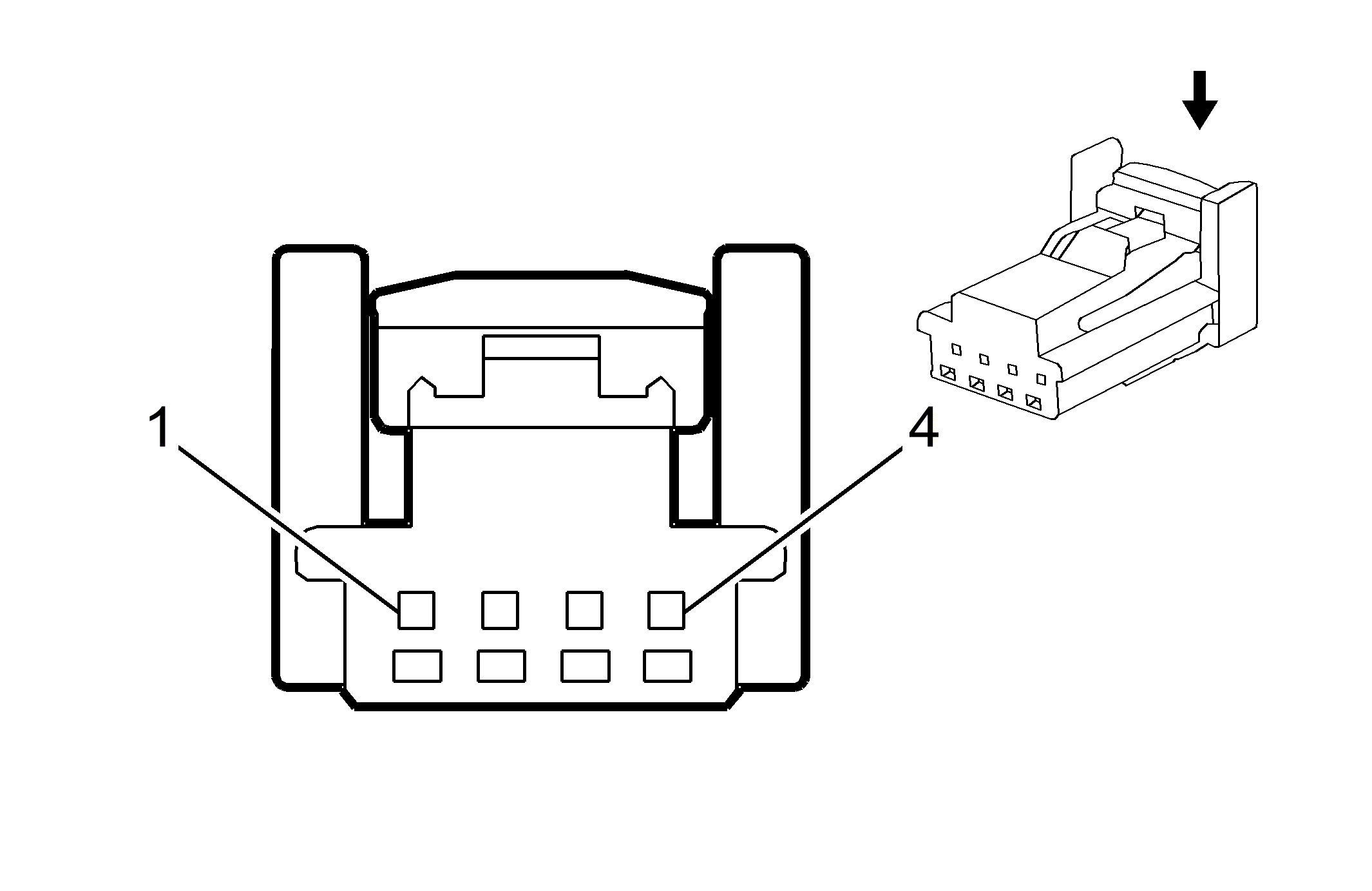

- Description: 4-Way F 025 Series (NA)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
Service Terminal |
Tray |
Core Crimp |
Insulation Crimp |
| I |
Not Available |
J-35616-64B (LT BU) |
Not Available |
Not Available |
Not Available |
Not Available |
Not Available |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
- |
- |
- |
Not Occupied |
- |
- |
| 2 |
0.35 |
PK |
5076 |
Current Sensor Supply Voltage |
I |
- |
| 3 |
0.35 |
BN |
5077 |
Current Sensor Low Reference |
I |
- |
| 4 |
0.35 |
WH |
5075 |
Current Sensor Signal |
I |
- |
