B111B Turbocharger Boost/Intake Air Temperature Sensor
|
|

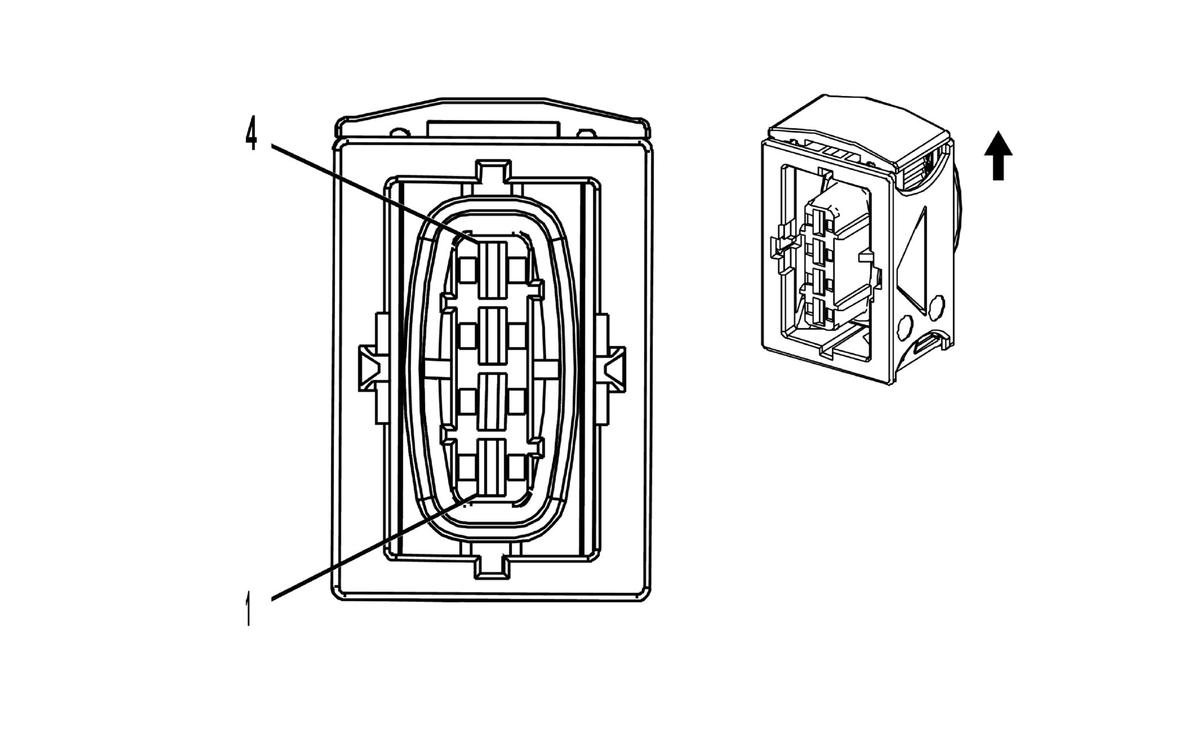

Connector Part Information
- Harness Type: Engine
- OEM Connector: 15397339
- Service Connector: 13384331
- Description: 4-Way F Junior Power Timer 2.8 Series, Sealed (BK)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
Service Terminal |
Tray |
Core Crimp |
Insulation Crimp |
| I |
Not Available |
J-35616-35 (VT) |
Not Available |
Not Available |
Not Available |
Not Available |
Not Available |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
0.5 |
BK/VT |
7332 |
Pre Throttle Air Temp and Press (TMAP) Low Reference |
I |
- |
| 2 |
0.5 |
WH/D-BU |
7329 |
Pre-Throttle Air Temp and Press (TMAP) Temperature Signal |
I |
- |
| 3 |
0.5 |
GY/RD |
7331 |
Pre Throttle Air Temp and Press (TMAP) 5 Volt Reference |
I |
- |
| 4 |
0.5 |
VT/D-BU |
7330 |
Pre Throttle Air Temp and Press (TMAP) Air Pressure Signal |
I |
- |
