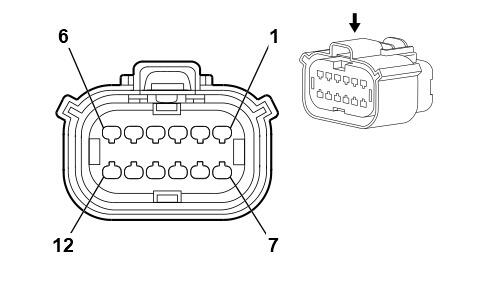

A15 Starter/Generator
|
|
Connector Part Information
- Harness Type: Engine
- OEM Connector: 13732881
- Service Connector: 13503528
- Description: 12-Way F 1.5 Series, Sealed (BK)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
Service Terminal |
Tray |
Core Crimp |
Insulation Crimp |
| I |
13578813 |
J-35616-2A (GY) |
J-38125-217 |
Not Available |
Not Available |
Not Available |
Not Available |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
0.75 |
BN |
7618 |
Resolver Signal #1 |
I |
- |
| 2 |
0.75 |
BN/L-GN |
7615 |
Resolver Signal #4 |
I |
- |
| 3 |
0.75 |
WH |
7619 |
Resolver Motor Positive |
I |
- |
| 4 |
0.75 |
GY |
7620 |
Resolver Motor Negative |
I |
- |
| 5 |
0.75 |
D-BU/VT |
7616 |
Resolver Signal #3 |
I |
- |
| 6 |
0.75 |
YE |
7617 |
Resolver Signal #2 |
I |
- |
| 7 |
0.5 |
BK/D-BU |
2956 |
Three Phase Motor Temperature Low Reference |
I |
- |
| 8 |
0.5 |
D-BU/WH |
2957 |
Three Phase Motor Temperature Signal |
I |
- |
| 9-10 |
- |
- |
- |
Not Occupied |
- |
- |
| 11 |
0.5 |
L-GN/D-BU |
5386 |
Auto Disconnect Control |
I |
- |
| 12 |
0.5 |
GY/VT |
5419 |
Auto Disconnect Supply Voltage |
I |
- |
