Ground Views
>>
G103, G106, and G110
G103, G106, and G110
G103, G106, and G110
Items
1: B18 Battery Current Sensor
B18 Battery Current Sensor
2:G106
3:G110
4:G103

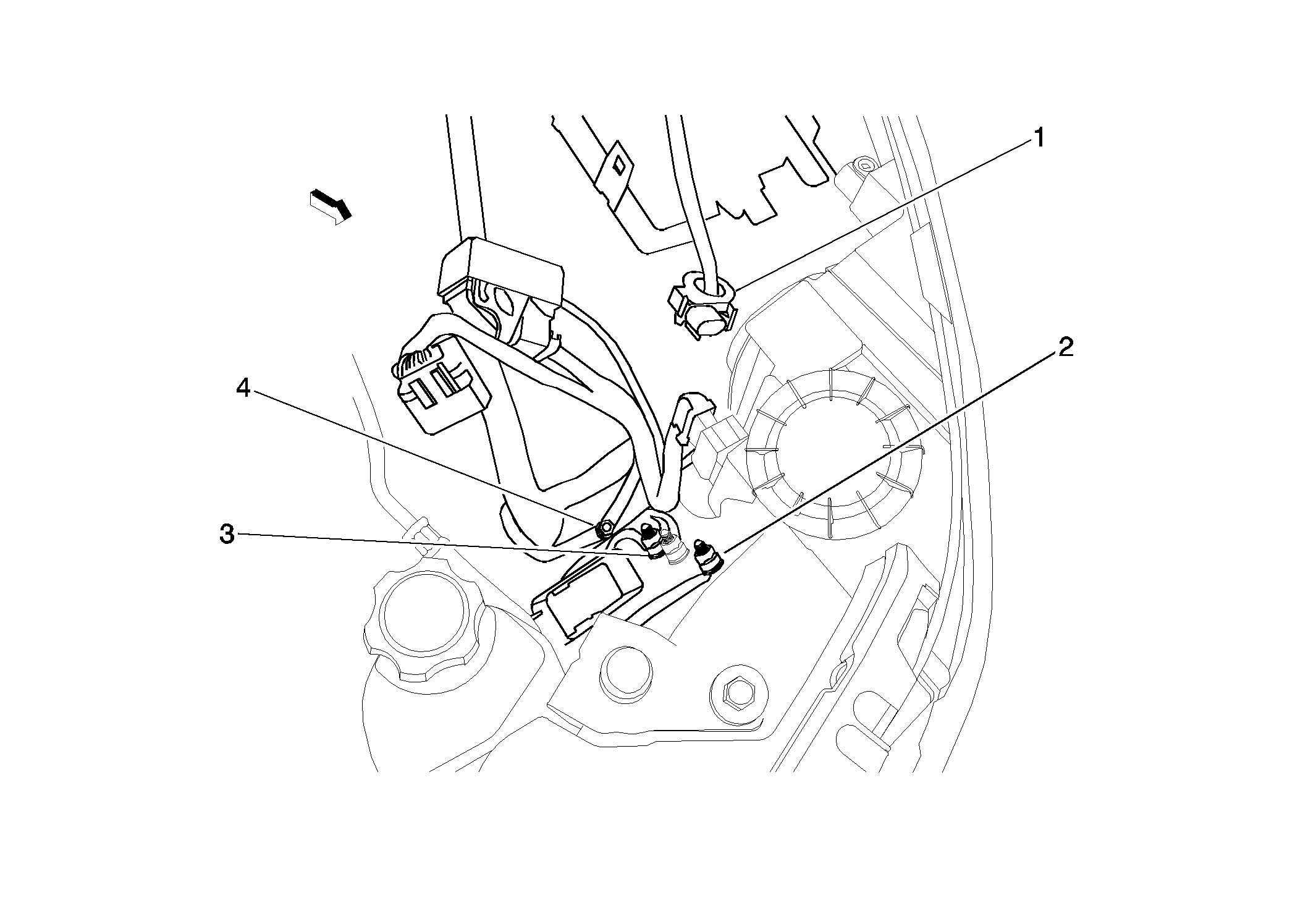

Fig 1: G103, G106, and G110
Courtesy of GENERAL MOTORS COMPANY
