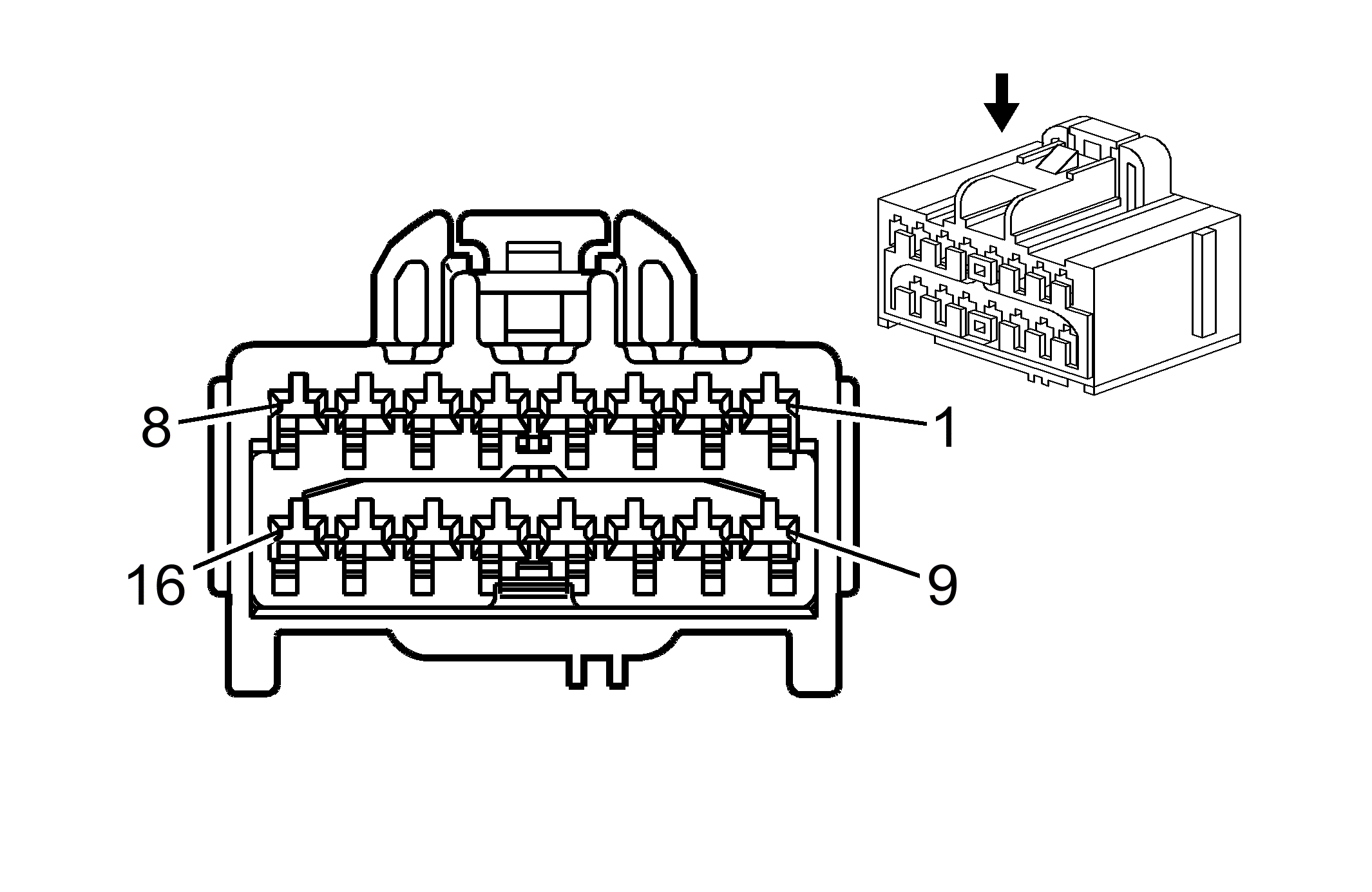

T3 Audio Amplifier X3 (UQS)
|
|
Connector Part Information
- Harness Type: Body
- OEM Connector: 15136073
- Service Connector: 15136073
- Description: 16-Way F Kaizen 64 Series (BK)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
| I |
13575867 |
J-35616-64B (L-BU) |
J-38125-215A |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
0.35 |
BN/BU |
1947 |
Left Front Low Level Audio (-) |
I |
- |
| 2 |
0.35 |
D-BU/BN |
1546 |
Front Low Level Audio (-) |
I |
- |
| 3 |
0.35 |
BN/VT |
1999 |
Left Rear Low Level Audio (-) |
I |
- |
| 4 |
0.35 |
D-BU/BK |
1946 |
Right Rear Low Level Audio (-) |
I |
- |
| 5 |
- |
- |
- |
Not Occupied |
- |
- |
| 6 |
0.5 |
VT/BU |
6978 |
Amplifier Control |
I |
- |
| 7 |
0.35 |
VT/BU |
6760 |
Center Channel Low Level Audio Signal |
I |
- |
| 8 |
0.35 |
D-BU/VT |
6763 |
Subwoofer Low Level Audio Signal |
I |
- |
| 9 |
0.35 |
D-BU |
511 |
Left Front Low Level Audio Signal |
I |
- |
| 10 |
0.35 |
YE |
512 |
Right Front Low Level Audio Signal |
I |
- |
| 11 |
0.35 |
D-GN/BK |
599 |
Left Rear Low Level Audio Signal |
I |
- |
| 12 |
0.35 |
BN/WH |
546 |
Right Rear Low Level Audio Signal |
I |
- |
| 13 |
0.75 |
D-GN/YE |
7066 |
Entertainment Remote Enable Signal |
I |
- |
| 14 |
- |
- |
- |
Not Occupied |
- |
- |
| 15 |
0.35 |
D-GN/BU |
6761 |
Center Channel Low Level Audio Signal (-) |
I |
- |
| 16 |
0.35 |
WH/BK |
6762 |
Subwoofer Low Level Audio (-) |
I |
- |
