K32 Steering Wheel Heating Control Module (UVD)
|
|

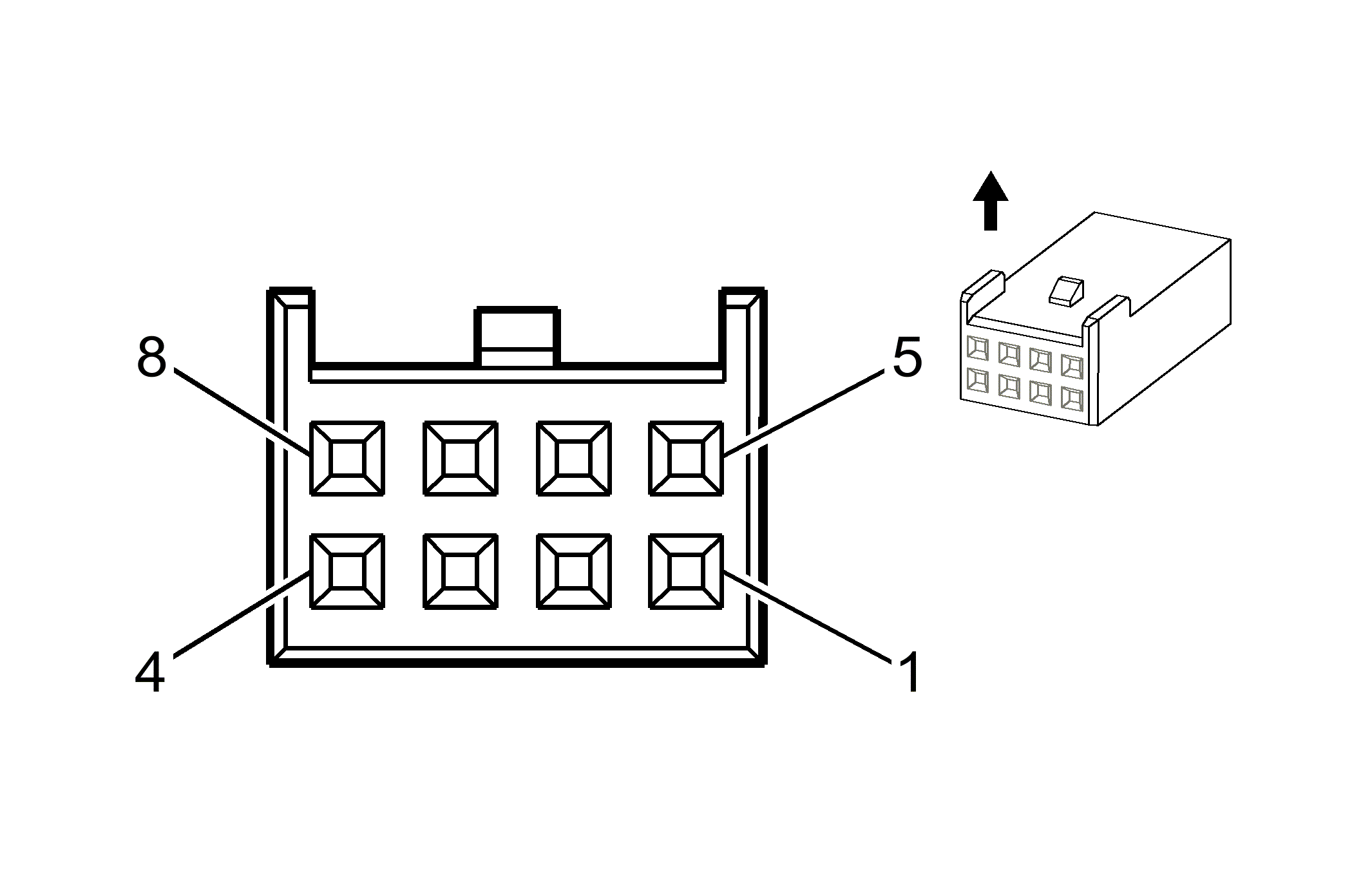

Connector Part Information
- Harness Type: Power Distribution
- OEM Connector: 15344036
- Service Connector: Service by Harness - See Part Catalog
- Description: 8-Way F DUCON 0.8 Series (BK)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
Service Terminal |
Tray |
Core Crimp |
Insulation Crimp |
| I |
Not Available |
Not Available |
Not Available |
Not Available |
Not Available |
Not Available |
Not Available |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
- |
BK |
1850 |
Ground |
I |
- |
| 2-3 |
- |
- |
- |
Not Occupied |
- |
- |
| 4 |
- |
VT/BN |
241 |
Run Ignition 3 Voltage |
I |
- |
| 5 |
- |
YE/RD |
5885 |
Heated Steering Wheel Voltage Reference |
I |
- |
| 6 |
- |
WH/RD |
5888 |
Heated Steering Wheel Voltage Reference |
I |
- |
| 7 |
- |
YE/GY |
5883 |
Heated Steering Wheel Switch Signal |
I |
- |
