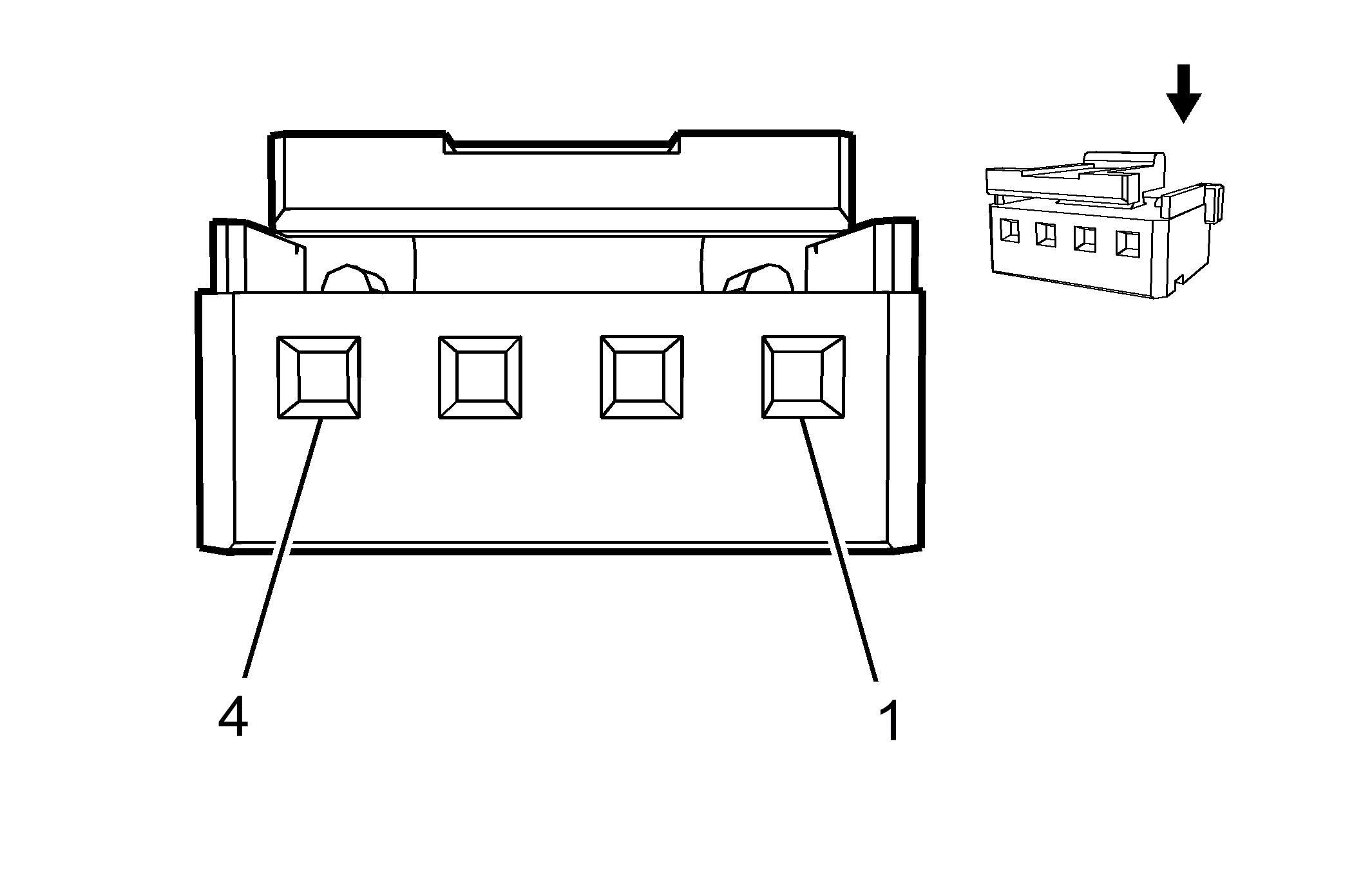

S2 Transmission Manual Shift Switch X2 (MDK, MH8, MHH or MHK)
|
|
Connector Part Information
- Harness Type: Transmission Shift Lever
- OEM Connector: Not Available
- Service Connector: Service by Harness - See Part Catalog
- Description: 4-Way F (WH)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
Service Terminal |
Tray |
Core Crimp |
Insulation Crimp |
| I |
Service By Component - See Part Catalog |
Not Available |
Not Available |
Service By Component - See Part Catalog |
Service By Component - See Part Catalog |
Not Available |
Not Available |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
- |
BK |
- |
Ground |
I |
- |
| 2 |
- |
OG/WH |
- |
Park Lock Solenoid Control |
I |
- |
| 3 |
- |
BK |
- |
Ground |
I |
- |
| 4 |
- |
D-BU/WH |
- |
Key Capture Signal |
I |
- |
