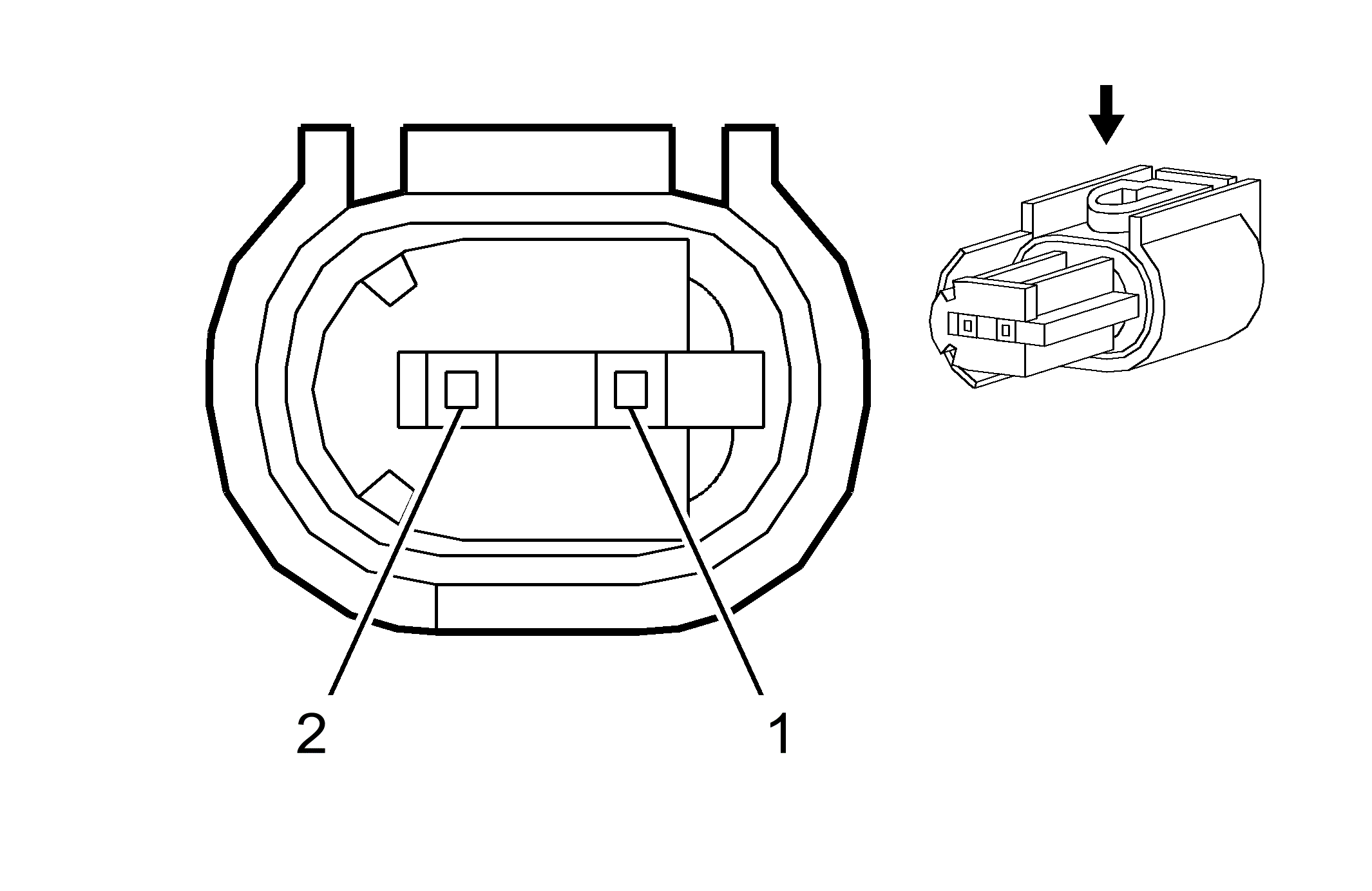

E2LF Side Marker Lamp - Left Front (T4A)
|
|
Connector Part Information
- Harness Type: Left Headlamp
- OEM Connector: 965324-1
- Service Connector: Service by Harness -See Part Catalog
- Description: 2-Way F MQS Series, Sealed (BK with GY Case)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
Service Terminal |
Tray |
Core Crimp |
Insulation Crimp |
| I |
Service by Component Assembly |
Not Available |
Not Available |
Service by Component Assembly |
Service by Component Assembly |
Not Available |
Not Available |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
0.75 |
BK |
50 |
Ground |
I |
- |
| 2 |
0.75 |
BK |
709 |
Left Park Lamp Supply Voltage |
I |
- |
