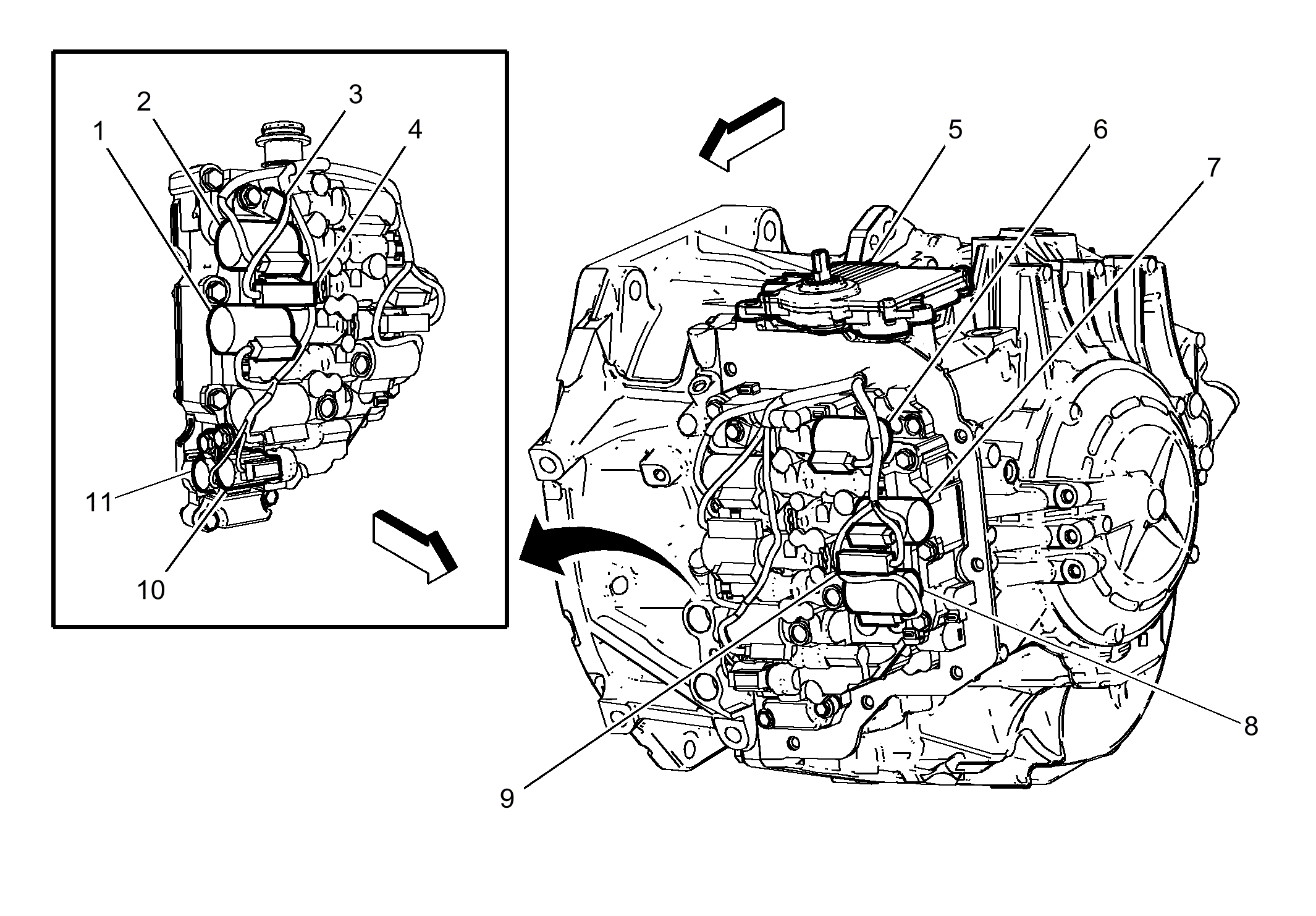

| 1: Q27B Pressure Control Solenoid Valve 2 |
| 2: Q27A Pressure Control Solenoid Valve 1 |
| 3: B13 Transmission Fluid Temperature Sensor |
| 4: B14A Transmission Output Shaft Speed Sensor |
| 5: Q23 Line Pressure Control Solenoid Valve (MDK) |
| 6: K71 Transmission Control Module |
| 7: Q39A Torque Converter Clutch Pressure Control Solenoid Valve |
| 8: Q27C Pressure Control Solenoid Valve 3 |
| 9: Q27D Pressure Control Solenoid Valve 4 |
| 10: B14C Transmission Input Shaft Speed Sensor |
| 11: Q32B Shift Solenoid Valve 2 |
| 12: Q32A Shift Solenoid Valve 1 |
