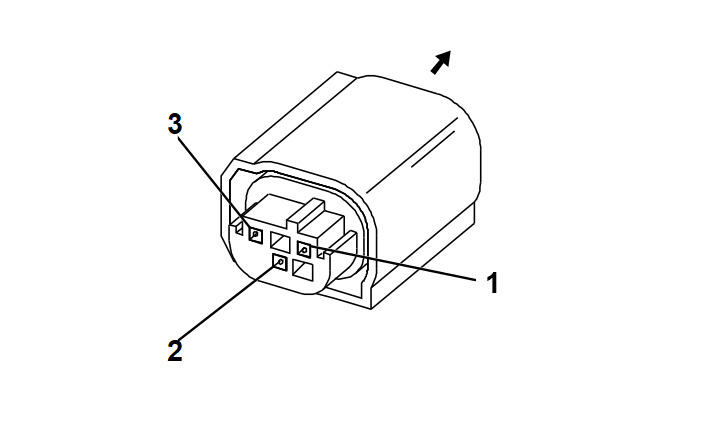

B51F Suspension Height Sensor - Front
|
|
Connector Part Information
- Harness Type: Forward Lamp
- OEM Connector: 13679455
- Service Connector: 13580107
- Description: 3 F 0.64 Micro Quadlok Series, Sealed BK
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
Service Terminal |
Tray |
Core Crimp |
Insulation Crimp |
| I |
Not Available |
J-35616-64B (L-BU) |
Not Available |
Not Available |
Not Available |
Not Available |
Not Available |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
0.5 |
BK/GY |
7526 |
Front Axle Level Sensor Low Reference |
I |
- |
| 2 |
0.5 |
BN/WH |
7525 |
Front Axle Level Sensor Signal |
I |
- |
| 3 |
0.5 |
WH/RD |
7524 |
Front Axle Level Sensor 5 Volt Reference |
I |
- |
