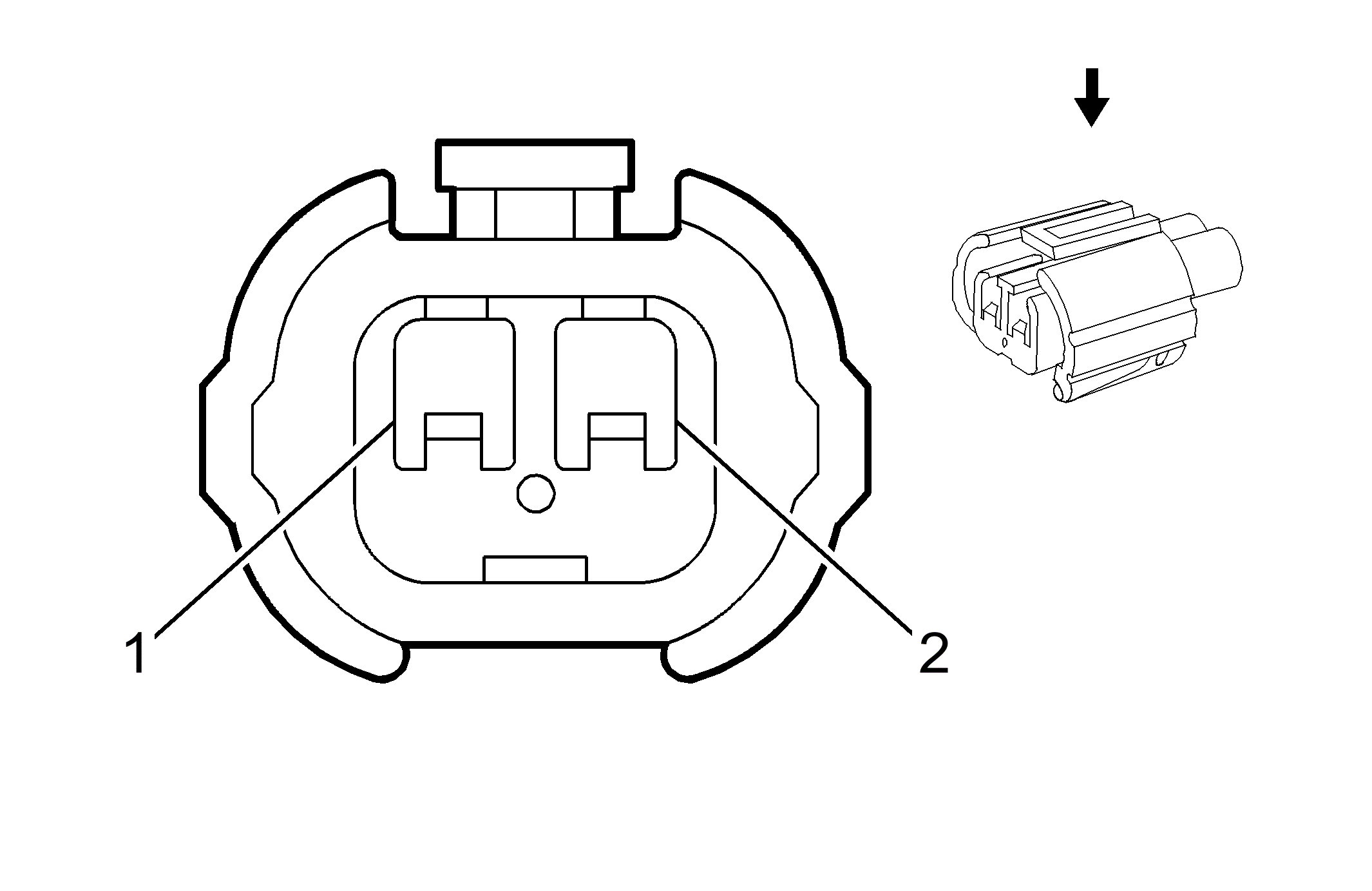

Q46 A/C Compressor Solenoid Valve (LUK)
Connector Part Information
|
Terminal Part Information
| Terminal Type ID | Terminated Lead | Diagnostic Test Probe | Terminal Removal Tool | Service Terminal | Tray | Core Crimp | Insulation Crimp |
|---|---|---|---|---|---|---|---|
| I | Service by Harness - See Part Catalog | Not Available | Not Available | Service by Harness - See Part Catalog | Service by Harness - See Part Catalog | Not Available | Not Available |
| Pin | Size | Color | Circuit | Function | Terminal Type ID | Option |
|---|---|---|---|---|---|---|
| 1 | 0.75 0.75 |
BU/YE YE/BU |
7574 7574 |
Electric Variable Displacement Control Electric Variable Displacement Control |
I | LHU LUK |
| 2 | 0.75 0.75 |
BU/BN BN/GN |
7573 7573 |
Electric Variable Displacement Supply Electric Variable Displacement Supply |
I | LHU LUK |
