Wiring Systems And Power Management - Wiring Harness Routing Views
>>
Wiring Harness Routing Diagrams
>>
Wiring Harness Routing Views
>>
Right Front Suspension Harness Routing (F45)
Right Front Suspension Harness Routing (F45)

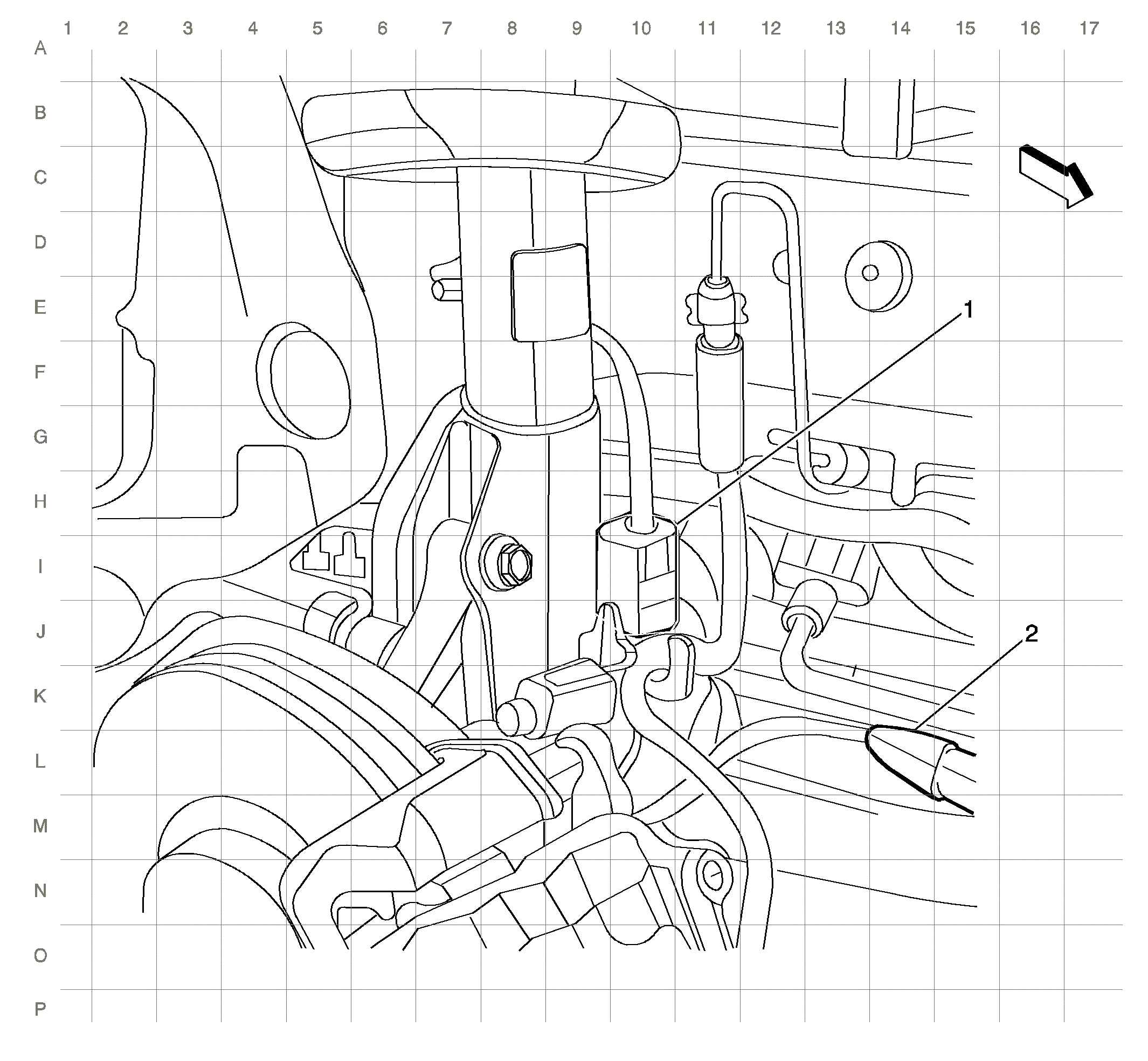

Fig 1: Right Front Suspension Harness Routing (F45)
Courtesy of GENERAL MOTORS COMPANY
Items
1:X141 (F45)
X141 Right Front Suspension Components to Right Front Suspension Harness
2:X140 (F45)
X140 Forward Lamp Harness to Suspension - Right Front Harness F45
