Driver Door Harness Routing

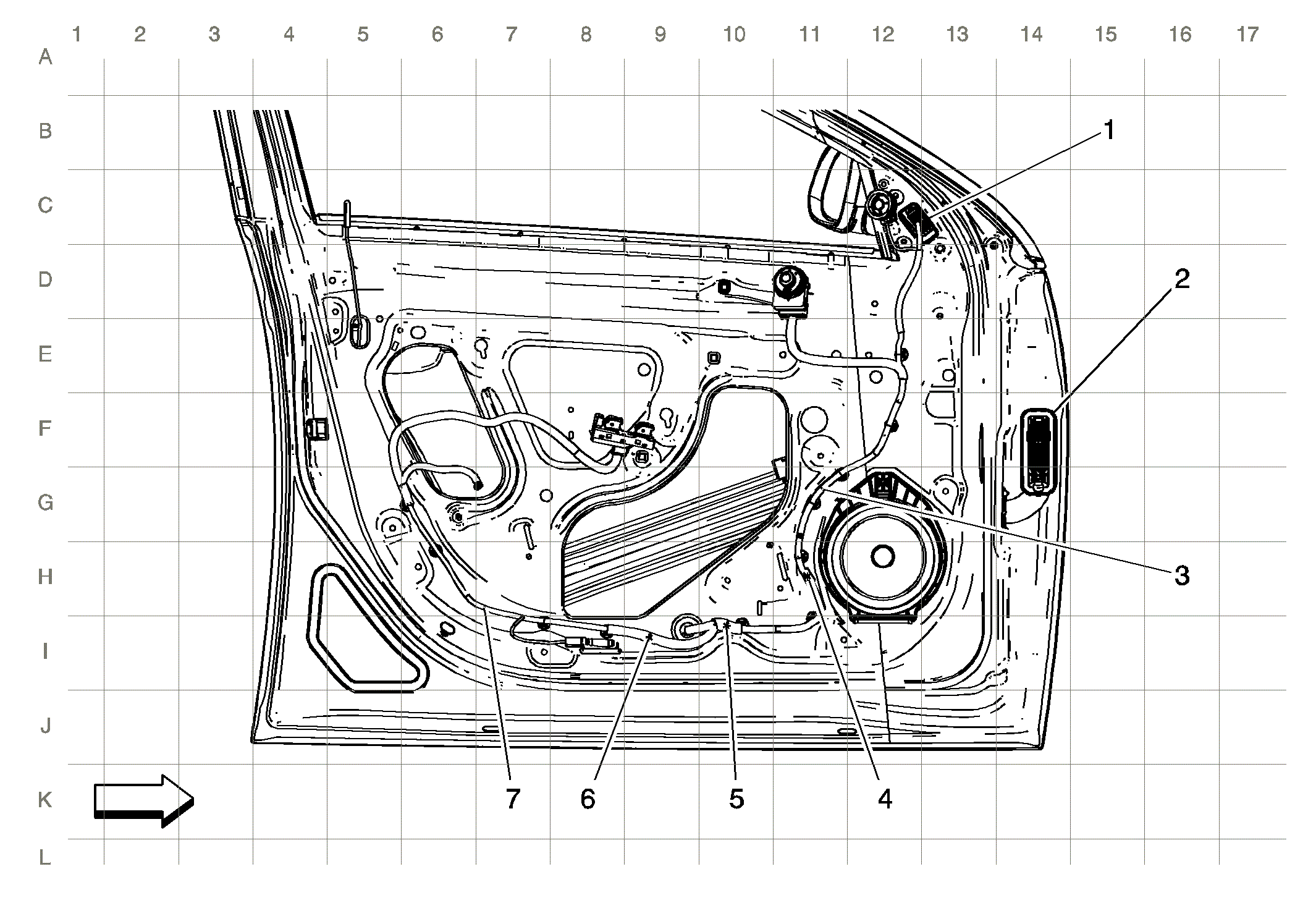

Fig 1: Driver Door Harness Routing
GM2504290Courtesy of GENERAL MOTORS COMPANY
Items
1:X510 X510 Driver Door Harness to Outside Rearview Mirror - Driver Harness
2:X500 X500 Driver Door Harness to Body Harness
3:J510
4:J511
5:J550
6:J501
7:J503
