Cooling Fan Harness Routing

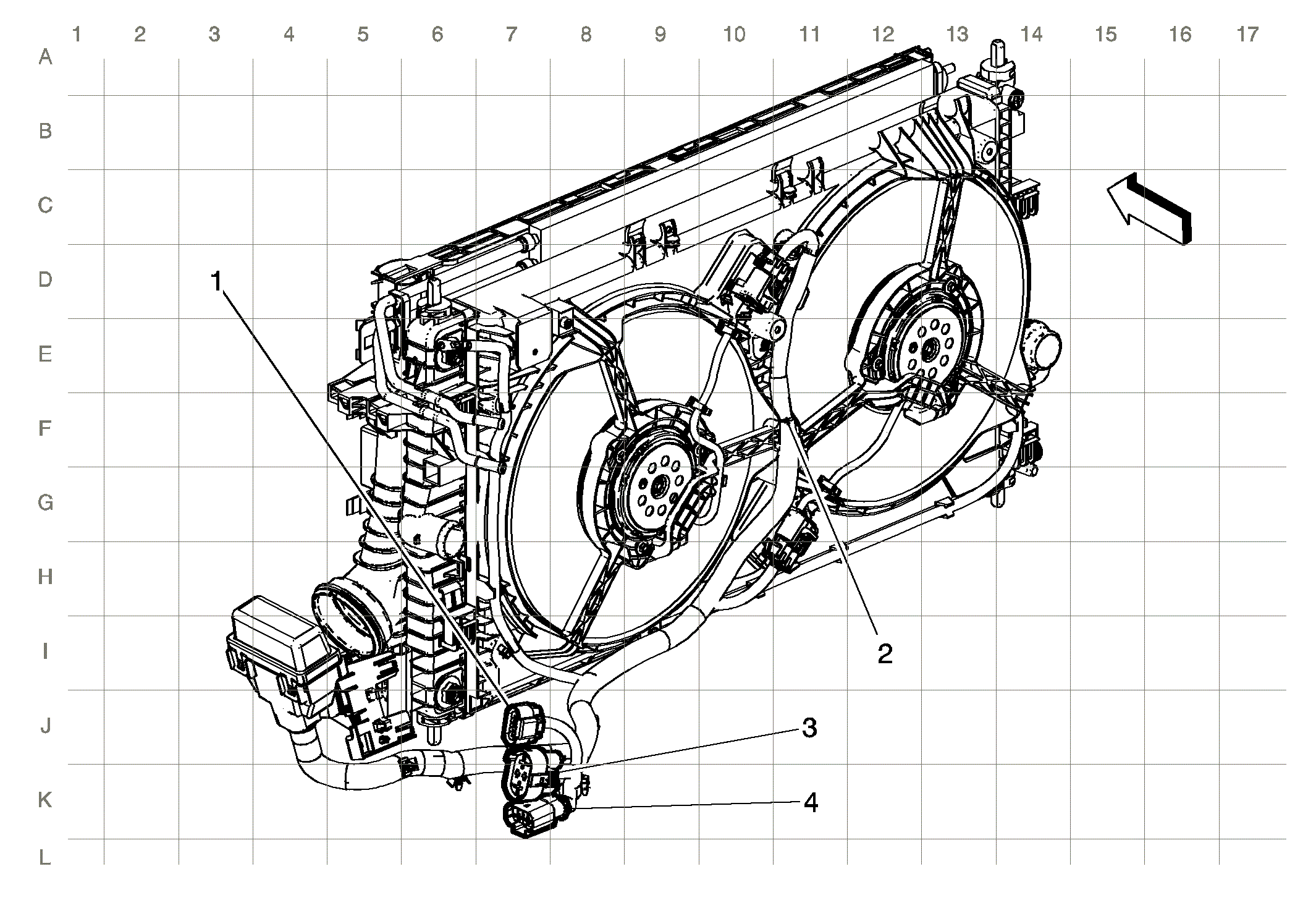

Fig 1: Cooling Fan Harness Routing
GM3794201Courtesy of GENERAL MOTORS COMPANY
Items
1:X117 X117 Cooling Fan Harness to Forward Lamp Harness
2:J108
3:X118 X118 Cooling Fan Harness to Forward Lamp Harness LDK
4:X116 X116 Cooling Fan Harness to Forward Lamp Harness
