Body Harness Routing - Right Side of Passenger Compartment

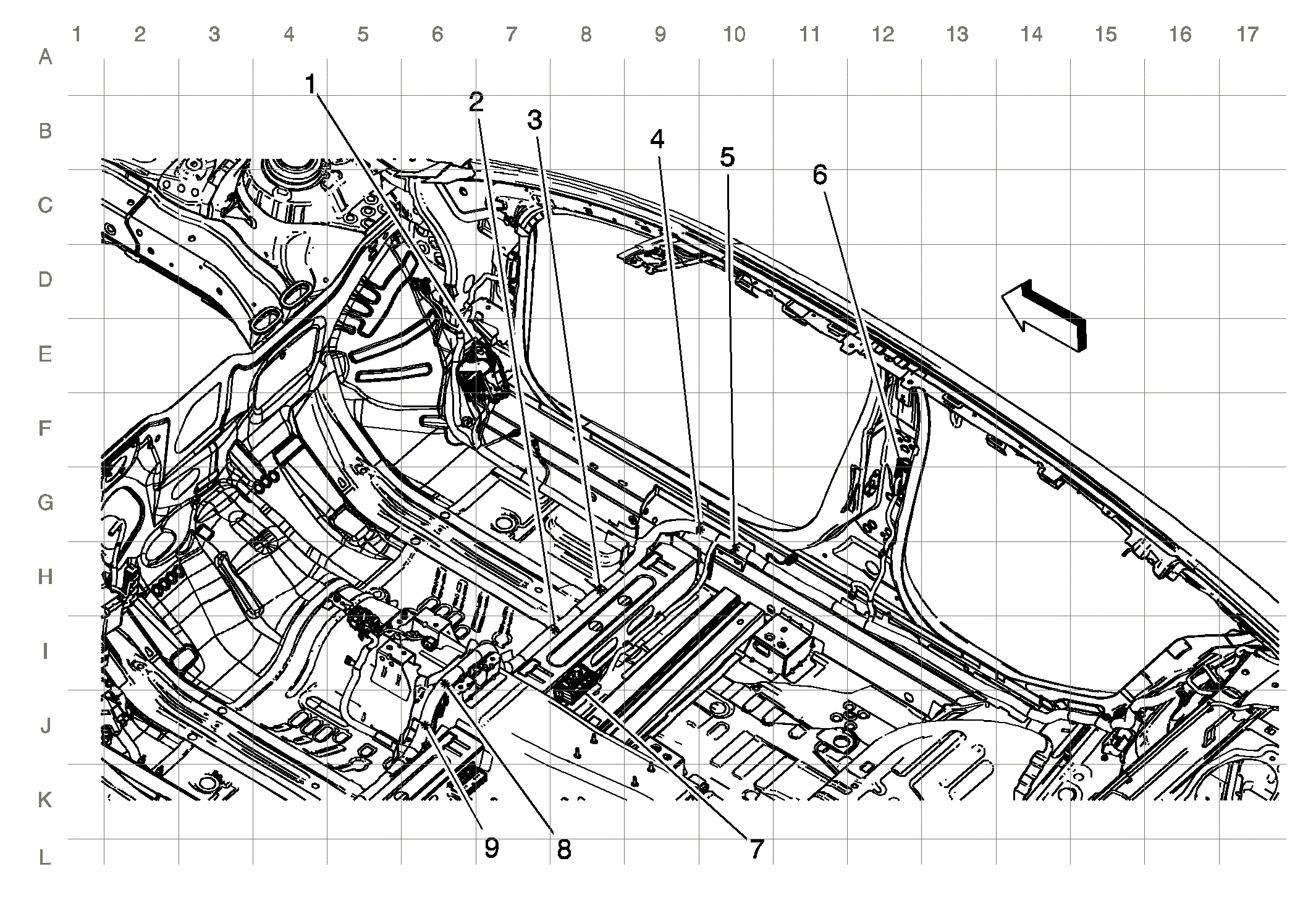

Fig 1: Body Harness Routing - Right Side of Passenger Compartment

Courtesy of GENERAL MOTORS COMPANY

Items
1:X220 (UQA) X220 Instrument Panel Harness to Body Harness
2:J322
3:J314
4:J353
5:J311
6:X800 X800 Right Rear Door Harness to Body Harness
7:X320 X320 Body Harness to Passenger Seat Harness
8:J352
9:J327
