Body Harness Routing - Left Rear of Passenger Compartment

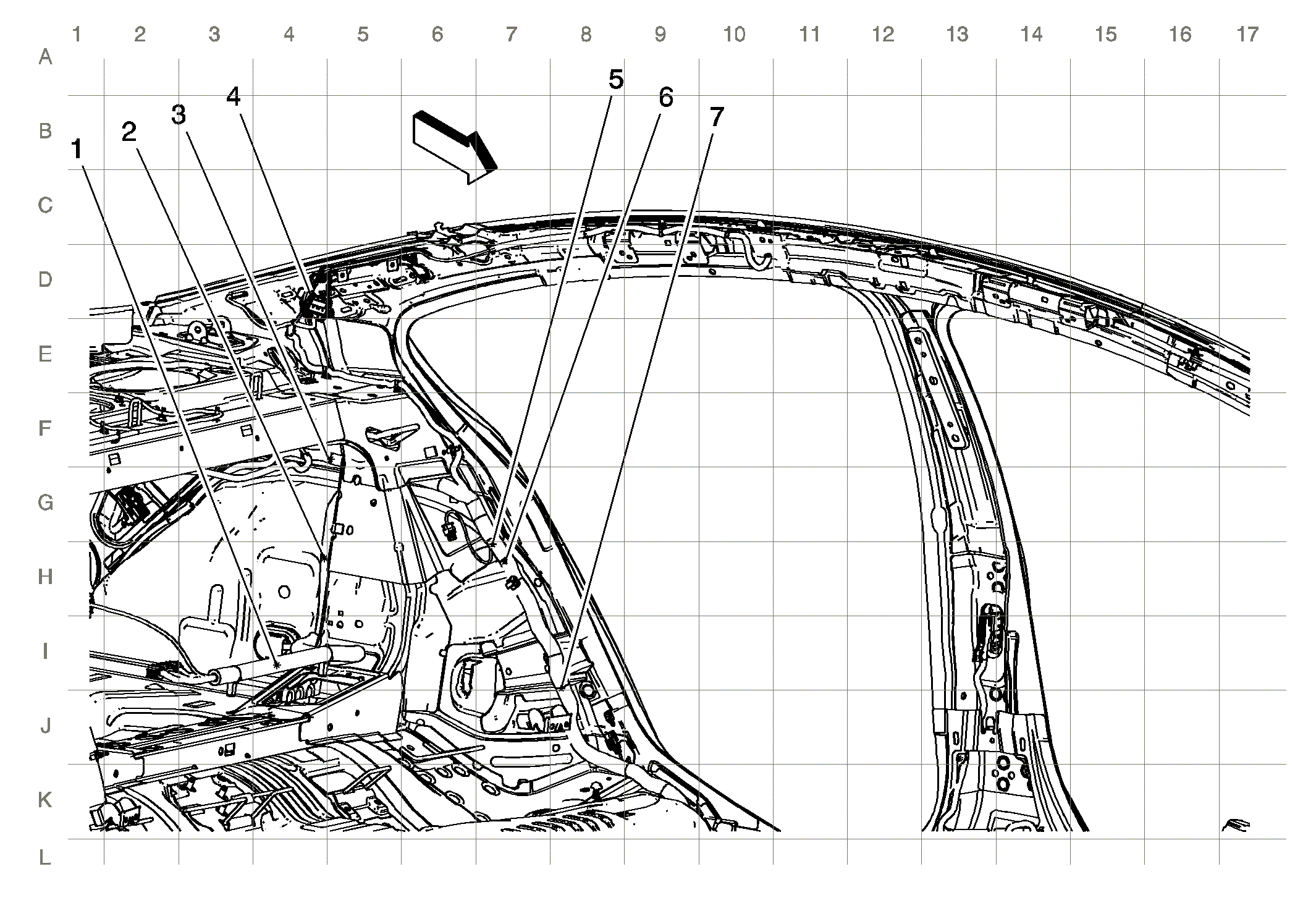

Fig 1: Body Harness Routing - Left Rear of Passenger Compartment
GM3469456Courtesy of GENERAL MOTORS COMPANY
Items
1:J301 (F45)
2:J312
3:J361
4:X400 X400 Headliner Harness to Body Harness
5:J264
6:J301 (F45)
7:J455
