Front Compartment Fuse Block Fuse Replacement (MIDI-Fuse)

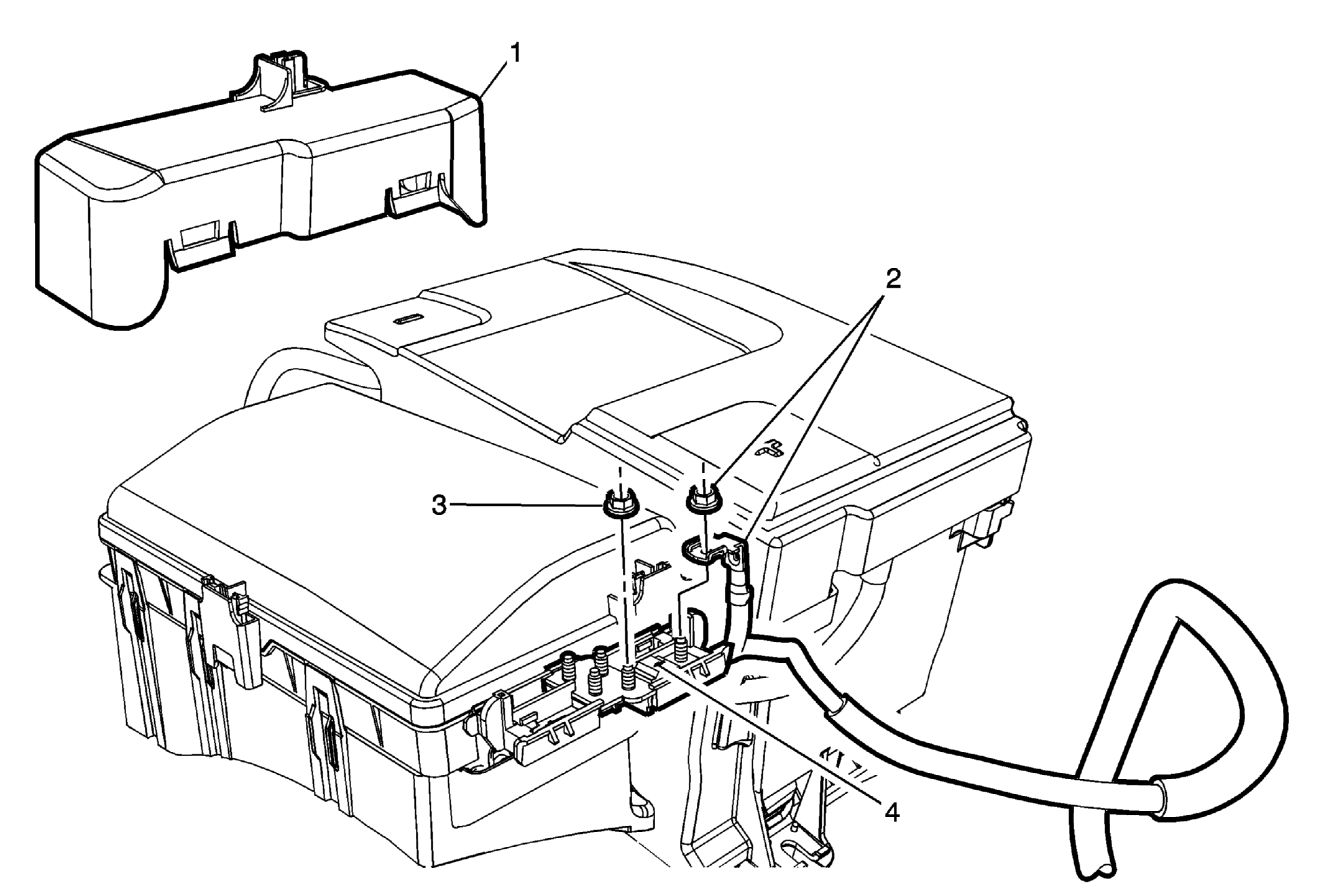

Fig 1: Front Compartment Fuse Block Fuse (MIDI-Fuse)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure  Disconnect the battery negative cable. Refer to Battery Negative Cable Disconnection and Connection .
1	Fuse Block Fuse Cover
2	Battery Positive Cable and Nut CAUTION: Refer to Fastener Caution . Procedure  Disconnect the battery positive cable(s) from the fuse. Tighten  4.7 N.m (42 lb in)
3	Fuse Block Fuse Holder Nut - MIDI-Fuse Tighten  4.7 N.m (42 lb in)
4	Fuse Block Fuse - MIDI-Fuse
