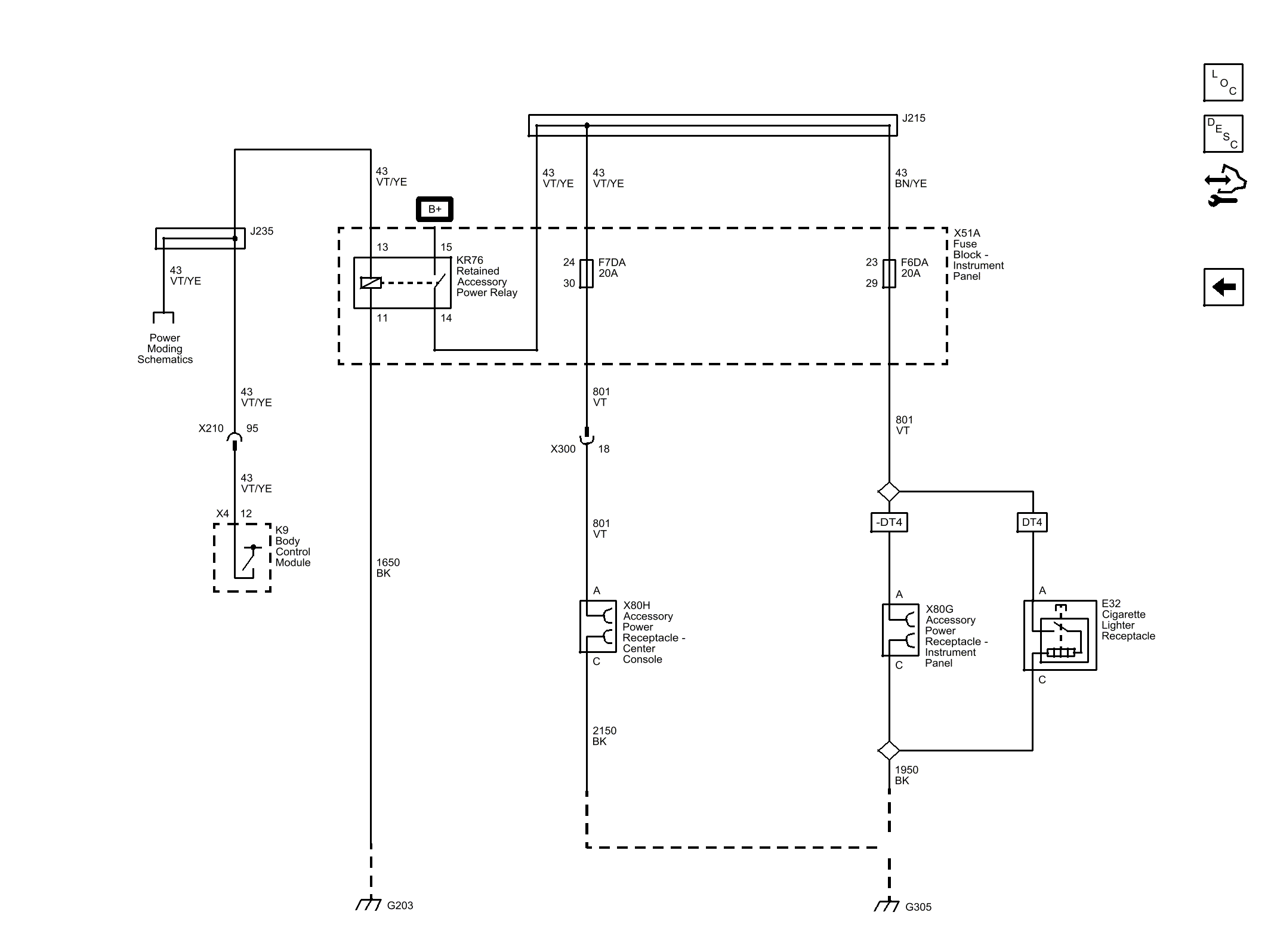

Home >> Buick >> 2015 >> Regal GS, AWD >> Repair and Diagnosis >> Electrical >> Motors, Switches, Relays >> Power Outlets >> Schematic Wiring Diagrams >> Cigar Lighter/Power Outlet Wiring Schematics >> Cigar Lighter/Power Outlet (CZ2)
