12 Volt DC and 110 Volt AC Power Outlets (except CZ2)

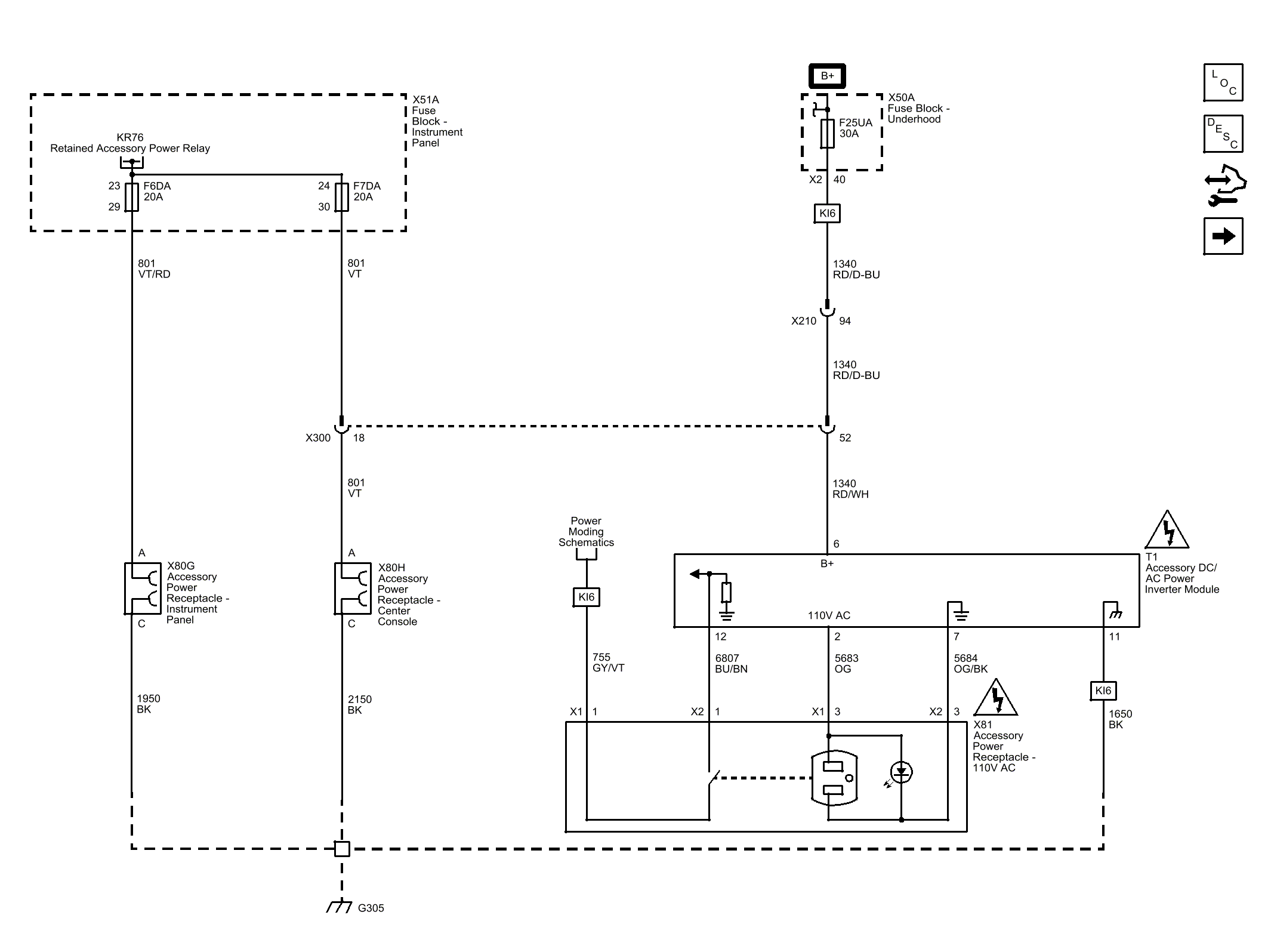

Fig 1: 12 Volt DC and 110 Volt AC Power Outlets (except CZ2)

GM3769836

Courtesy of GENERAL MOTORS COMPANY
